Anxin's industrial computer covers industrial PCs, embedded systems, all-in-one touch panel PCs, DIN-rail embedded controllers, and IoT gateway devices are feature-rich and designed to meet the challenging requirements for operation in the automation industry. They can be easy to be integrated in general industrial applications - petroleum, chemical, electric power, energy transportation, communication and other industrial industries.
The industrial computers are x86 platform supporting Microsoft® Windows 7, Microsoft® Windows 10, Microsoft®WES7P, Microsoft® Windows 10 IOT LTSC, Linux. for harsh & comprehensive industrial system integration included process monitoring and control and motion control. Additionally, they are widely used in factory automation and machine vision inspection. Stock and OEM service are accepted.

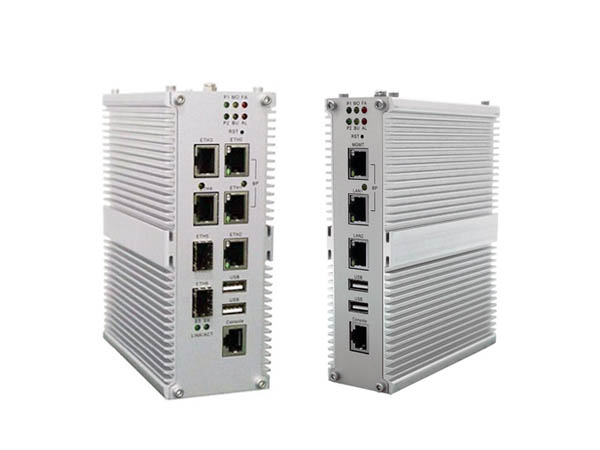

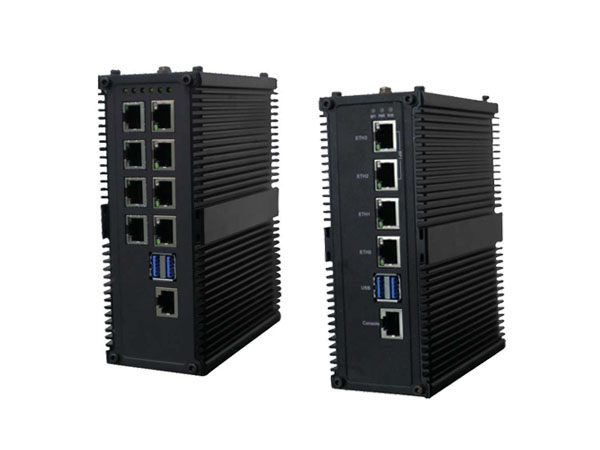

Din rail Industrial computer, box PC with multiple network ports are fanless design, compliant wide temperature (-20℃/-40℃ ~ 70℃) and operating in extreme environments, onboard low power Intel® processors, ruggedized construction embedded chassis. High realtabilty for networking, security, industrial automation, IoT and SD-WAN in the most demanding conditions.
| Model NO | LAN | I/O | Datasheet |
|---|---|---|---|
| F19307 | 3 GbE RJ45 | 1 RS-485, 1 console, 2 USB2.0 | Datasheet (PDF) |

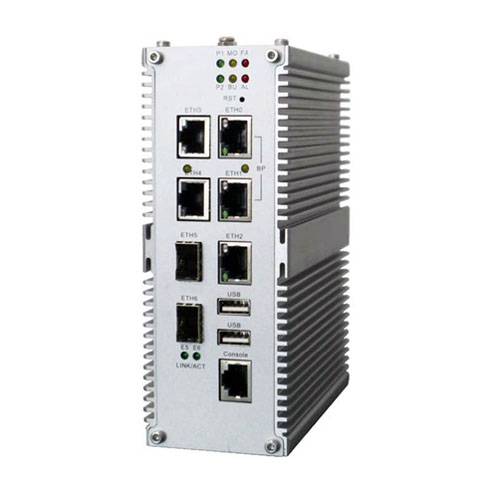

| F19308 | 2 SFP + 5 RJ45 Gbe | 1 Console, 1x RS232, 1 RS-485, 2 USB2.0, 4G module optional | Datasheet (PDF) |
| F1930A | 4 GBE RJ45 | 5 RS-485, 2 RS232, 2 USB2.0, 4G module optional | Datasheet (PDF) |
| F1930B | 7 GBE RJ45 | 2 RJ45 RSS232, 1 RS485, 2 USB2.0, 4G module optional | Datasheet (PDF) |

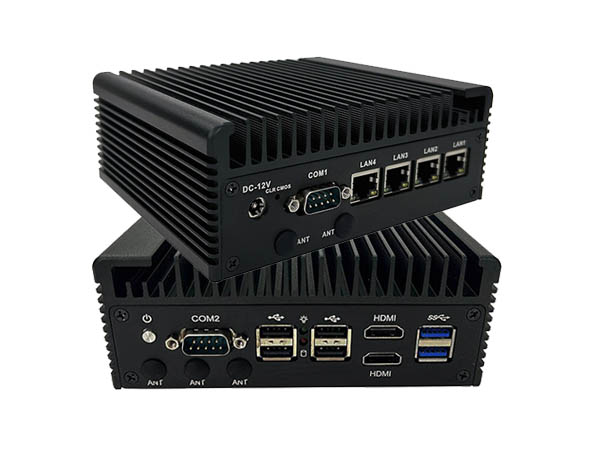

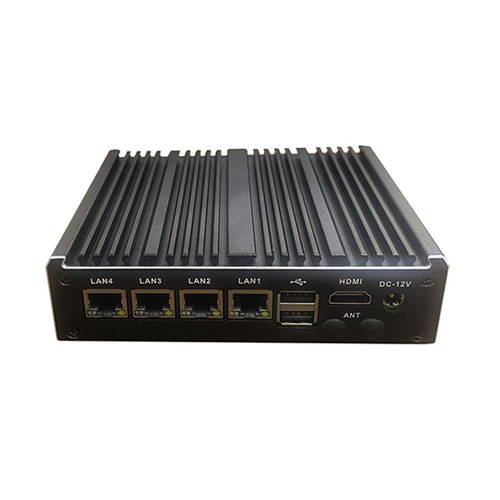

Fanless design Mini size extrusion chassis, the motherboard based on latest chip and solid e-components, industrial grade motherboard, They are durable, highly scalable, and applicable for networking, router, industrial automation, IoT, etc.
| Model NO | CPU | I/O | Datasheet |
|---|---|---|---|
| BPC-2403U | Intel® Core™ processors | 2x COM(RS232/Rs485), 2x GLAN, 4x USB, 16 GPIOs, 1x HDMI, Audio | Datasheet (PDF) |
| MPC-N1024 | Intel® N100 | 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, 1x SIM | Datasheet (PDF) |
| MPC-N1022 | Intel® N100 | 2x COM, 2x GbE LAN, 1xVGA, 1XDP, 1x HDMI,1x TypeC, 5x USB, 1x Audio | Datasheet (PDF) |
| MPC-J4124 | Intel® J4125 | 2x COM, 4x 2.5G LAN, 1x HDMI, 6 USB, 1x Audio | Datasheet (PDF) |
| MPC-J4122 | Intel® J4125 | 2x COM, 2x GbE LAN, 1xVGA, 1x HDMI, 6 USB, 1x Audio | Datasheet (PDF) |

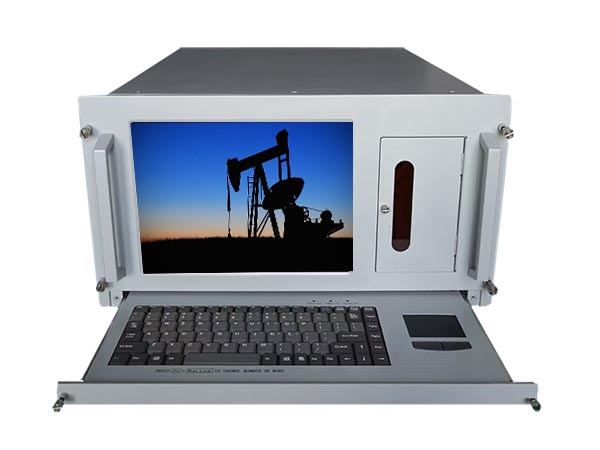

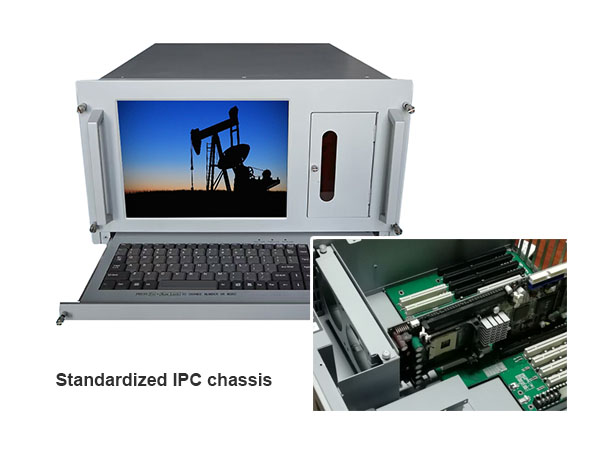

Anxin's standardized IPC chassis integrated LCD and keyboard is designed for industrial motherboards, providing a stable operating environment and strong expansion capability. Its primary functions include:Industrial Environment support to built with dustproof, shock-resistant, and moisture-resistant features, it is suitable for harsh environments such as factories and inspection lines. Uses industrial-grade thermal design to ensure stable performance during long-term, high-load operation. Supports industrial motherboard form factors including ATX, Micro-ATX, Mini-ITX, FSBC, and HSBC, etc.
| Model NO | Height | LCD size | Datasheet |
|---|---|---|---|

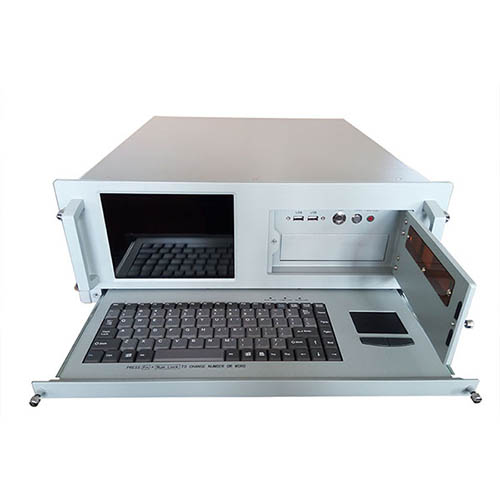

| RCWS-08N | 4U | 8" LCD | Dimensions (PDF) |
| RCWS-10N5U | 5U | 10.4" LCD | Dimensions (PDF) |
| RCWS-12N | 6U | 12.1" LCD | Dimensions (PDF) |
| RCWS-15/17 | 8U | 15/17 " LCD | Accept OEM |
