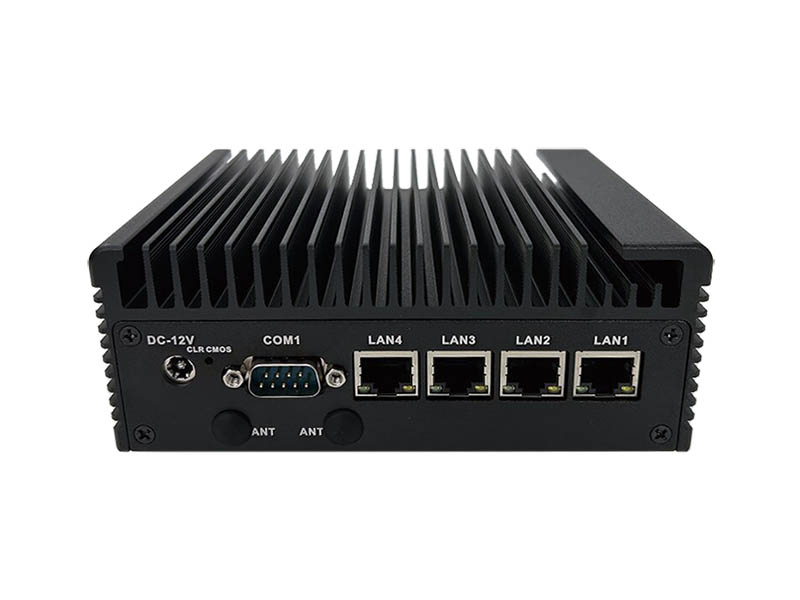

BOX PC, Fanless design mini PC for network application, Intel N100 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 1x TypeC, 4x USB, DC 12 input.
Features
- Intel® N100 (6M Cache, up to 3.40 GHz) processor
- 1x DDR5 4800MHz so-DIMM slot, up to 16GB
- 4x Intel i226 2.5G controllers
- 1x M.2_WIFI/4G interface, 1x mini PCIE
- 1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
- 2x COM (RS-232), COM1 can switch to RS-485 signal
- 2x HDMI
- 2x USB3.0, 4x USB2.0
- TPM2.0 hardware encryption (optional)
- DC 12V power supply
- Support Pfsense/OPNsense/Ubuntu/win10/win11
Specifications
Motherboard
-
CPU
Intel® Processor N100
-
BIOS
AMI 128M BIOS
-
System memory
DDR5 4800MHz so-DIMM slot, MAX 16GB RAM
Storage
-
SATA
1x SATA3.0
-
MSATA
None
-
M.2
1x M.2 SSD (NGFF/PCIE adaptive)
Ethernet
-
LAN Port
Four RJ-45 ports
-
Ethernet Controller
Four Intel i226 2.5G network Controllers
System I/O
-
Display
Two HDMI
-
USB
Two USB3.0, Four USB2.0
-
COM
Two COM(COM1 RS232,COM2 RS232/RS485)
-
Audio
None
-
Power switch
One switch
-
Indicator
One HDD Led, One Power HDD
Power supply
-
Power consumption
DC 12V External power adapter
-
Power input
100 ~ 240V full range AC input
Environmental
-
Operate Temperature
-10°C ~ 60°C
-
Storage Temperature
-20°C ~ 70°C
-
Operate Humidity
5% ~ 85% non-condensing
-
Storage Humidity
5% ~ 95% non-condensing
Mechanical
-
Chassis Color
Black
-
Construction
Aluminum extrusion chassis
-
Dimensions (D x W x H)
125x148x55 mm
-
Weight
1.5 kg
Ordering informations
-
MPC-N1024
Box PC, Mini size aluminum extrusion chassis, Intel N100 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, DC 12 input
