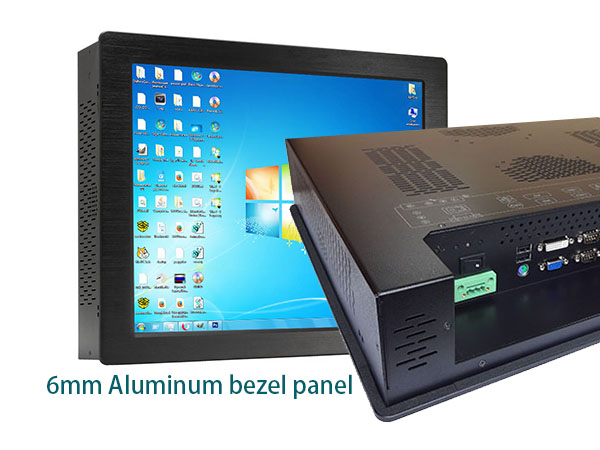

Industrial panel PC with i3 i5 or i7 CPU - i series

Anxin's i series panel PC are high perforamence industrial panel PC, support Intel Gen 2/3th, 6/7th, 8/9th core i3/i5/i7 Processor, HDD/RAM(4~ 32GB), 6 COM(RS232/ RS422/ RS485), Normal/fanless design with aluminum alloy enclosure, IP65 rated front panel. They provide excellent performance, memory, graphics, and peripheral I/O support in a embedded system with a high durability.

Model NO	LCD Size	Dimensions	Datasheet
IPC-12i7	12.1" 1024 x 768	355 x 279 x 88 mm	Datasheet (PDF)
IPC-15i7	15" 1024 x 768	406 x 312 x 90 mm	Datasheet (PDF)
IPC-17i7	17" 1280 x 1024	432 x 346 x 90 mm	Datasheet (PDF)
IPC-19i7	19" 1280 x 1024	456 x 371 x 90mm	Datasheet (PDF)
IPC-1901AI	19" 1280 x 1024	456 x 371 x 70 mm	Datasheet (PDF)

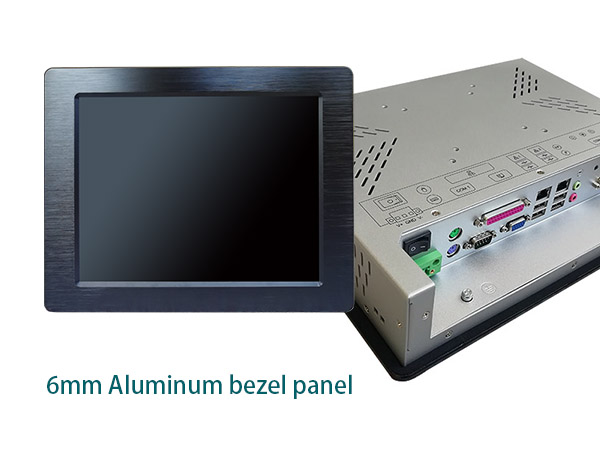

Industrial panel PC with J1900 CPU - A series

Anxin's A series panel PC - Industrial panel computers are 8~22 inch Industrial Panel PC, 6mm thicken rugged aluminum panel meets NAME4 IP65 level, J1900 cpu, HDD/SSD, and 2Gb~8G Ram, touchscreen/strengthen glass is optional, Parallel ports(1x LPT) ,2 LAN, 2~6 com RS232/ RS422/ RS485, 12V/24V/8~30V power input.

Model NO	LCD Size	Dimensions	Datasheet

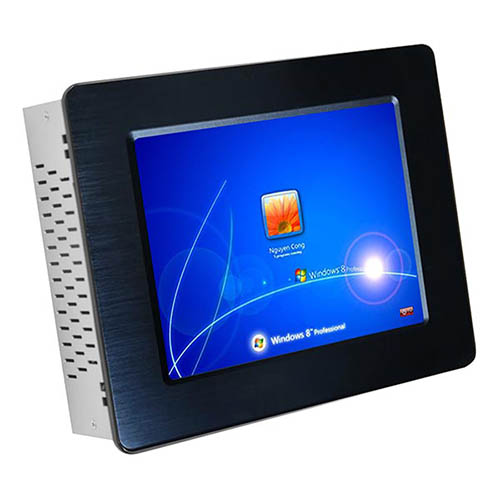

IPC-08A	8" 800 x 600	248.8 x 196.8 x 70 mm	Datasheet (PDF)
IPC-10A	10.4" 800 x 600	287.4 x 227.4 x 68 mm	Datasheet (PDF)
IPC-12A	12.1" 1024 x 768	322 x 247.5 x 70 mm	Datasheet (PDF)
IPC-15A	15" 1024 x 768	406 x 312 x 75 mm	Datasheet (PDF)
IPC-17A	17" 1280 x 1024	432 x 346 x 79 mm	Datasheet (PDF)

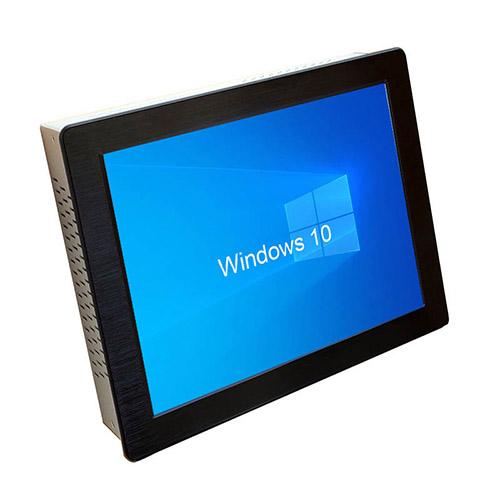

IPC-19A	19" 1280 x 1024	456 x 371x 79 mm	Datasheet (PDF)

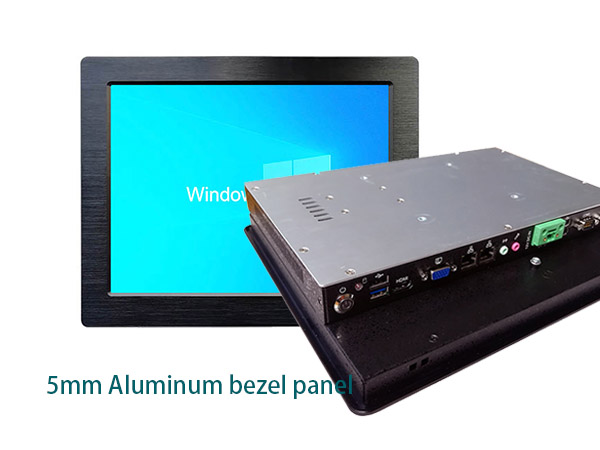

Fanless Industrial panel PC with J1900 CPU - DF series

Anxin's DF series - industrial Panel PC are Fanless design, with wide/nomal lcd screen (16:9/16:10/4:3), up to 1920/2K resolution, 5mm thickness aluminum panel meets NAME4 IP65 rated, J1900 processors, the size of HDD/ SDD, RAM are optional, VGA+HDMI, RS232/ RS422/ RS485, strengthen glass or touch screen is optional.

Model NO	LCD Size	Dimensions	Datasheet
IPC-1001F	10.1" 1280 x 800	294 x 209 x 71mm	Datasheet (PDF)

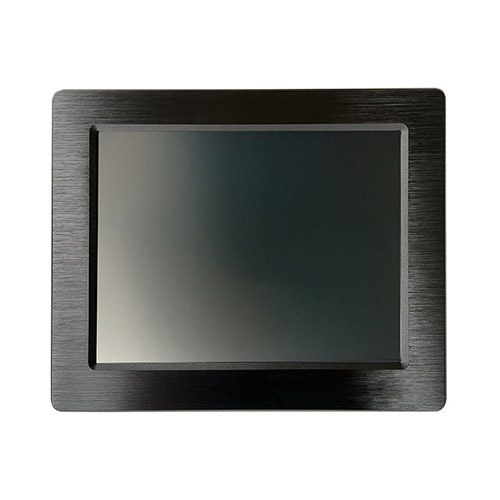

IPC-12DF	12.1" 1024 x 768	315 x 250 x 50 mm	Datasheet (PDF)
IPC-15DF	15" 1024 x 768	370 x 295 x 50 mm	Datasheet (PDF)
IPC-17DF	17" 1280 x 1024	408 x 340 x 50 mm	Datasheet (PDF)
IPC-19DF	19" 1280 x 1024	446 x 371x 50 mm	Datasheet (PDF)
IPC-21WDF	21.5" 1920 x 1080	545 x 335 x 50mm mm	Datasheet (PDF)

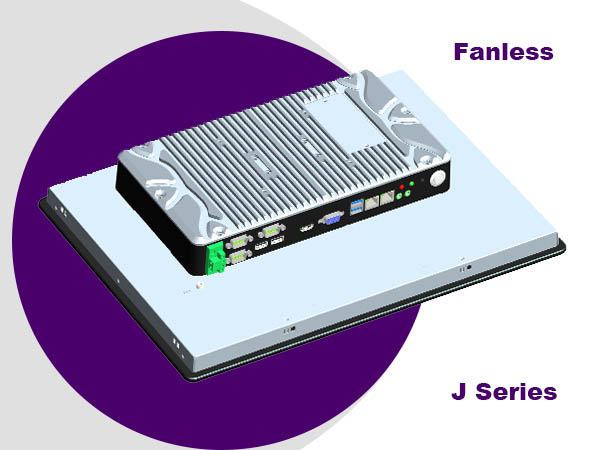

Fanless Industrial panel PC with Intel J6412 processor

Anxin's New J series - Fanless industrial Panel PC is eequipped with 6mm thickness aluminum panel meets NAME4 IP65 rated, aluminium extrusion heat sink enclosure, J6412 processor. The project capacitive or resistive touch screen is optional.

Model NO	CPU	LCD Size	Dimensions
IPC-1701J	Intel J6412	17"	432 x 346 x 67mm
IPC-1901J	Intel J6412	19"	456 x 371 x 68mm

Hardware Specifications

Aluminum Extrusion Heat Sink Enclosure: This ensures effective heat dissipation, maintaining optimal performance even in demanding conditions.
IP65 Compliant: The front of the device is protected against dust and water ingress, making it suitable for harsh industrial environments.
Touchscreen Options: Resistive or capacitive touch screens, providing flexibility for different user interfaces.
Memory: 1x SODIMM 2400MHz DDR4 RAM, expandable up to 16GB, offering smooth and efficient performance.
Storage: 1x M.2 M-Key 2280 (PCIEx2) for fast and reliable storage options, with easy SSD installation.
Connectivity: 3x COM ports (2 x RS-232, 1x RS422/485), 1x HDMI, 1x VGA, 4x USB, 2x LAN, and 1x AUDIO and MIC for versatile connectivity and data transmission.

This industrial panel PC is designed to handle a wide range of applications, from industrial automation to embedded systems, offering both durability and high performance in challenging conditions.
