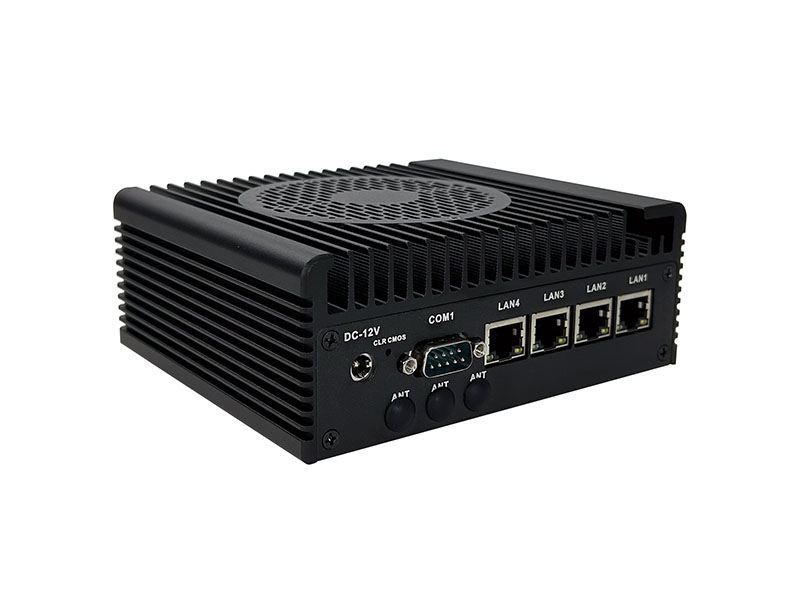

BOX PC, network appliance, Fanless design mini PC for network application, Supports Pfsense/ OPNsense/ Ubuntu/ win10/ win11 os. Intel i3-N305 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, DC 12 input.
Features
- Intel® i3-N305 (6M Cache, up to 3.80 GHz) processor
- 1x DDR5 4800MHz so-DIMM slot, up to 16GB
- 4x Intel i226 2.5G controllers
- 1x M.2_WIFI/4G interface, 1x mini PCIE
- 1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
- 2x COM (RS-232), COM1 can switch to RS-485 signal
- 2x HDMI
- 2x USB3.0, 4x USB2.0
- TPM2.0 hardware encryption (optional)
- DC 12V power supply
- Supports Pfsense/OPNsense/Ubuntu/win 10/win 11
Specifications
Motherboard
- CPU Intel® Processor i3-N305
- BIOS AMI 128M BIOS
- System memory DDR5 4800MHz so-DIMM slot, MAX 16GB RAM
Storage
- SATA 1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
- MSATA One mSATA3 socket
- CF slot None
Ethernet
- LAN Port Four RJ-45 ports
- Ethernet Controller Four Intel i226 2.5G network Controllers
System I/O
- Display Two HDMI
- USB Two USB3.0, Four USB2.0
- COM Two COM(COM1 RS232,COM2 RS232/RS485)
- Audio None
- Power switch One switch
- Indicator One HDD Led, One Power HDD
Power supply
- Power consumption DC 12V External power adapter
- Power input 100 ~ 240V full range AC input
Environmental
- Operate Temperature -10°C ~ 60°C
- Storage Temperature -20°C ~ 70°C
- Operate Humidity 5% ~ 85% non-condensing
- Storage Humidity 5% ~ 95% non-condensing
Mechanical
- Chassis Color Black
- Construction Aluminum extrusion chassis
- Dimensions (D x W x H) 125x148x55 mm
- Weight 1.5 kg
Ordering informations
- MPC-N3024 Box PC, Mini size aluminum extrusion chassis, Intel N305 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, DC 12 input
