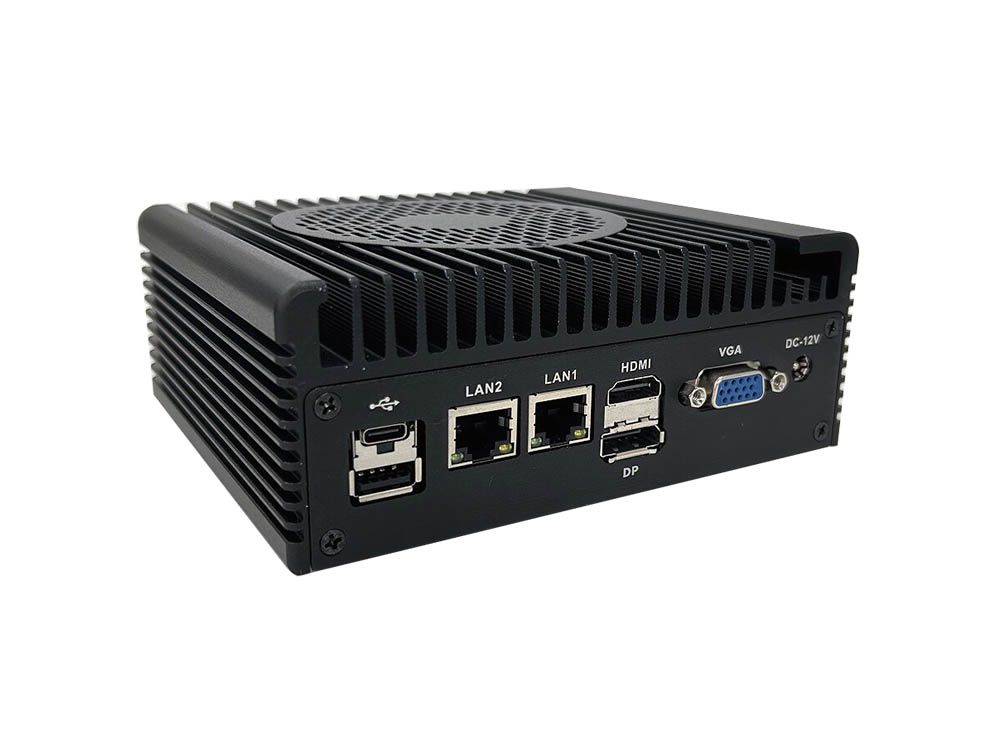

BOX PC, Fanless design mini PC for network application, Intel i3-N305 CPU, 2x GbE LAN, 2x COM, 1x HDMI, 1xDP, 1xVGA, 1x TypeC, 1x Audio, 6x USB, DC 12 input.
Features
-
Intel® i3-N305 (6M Cache, up to 3.80 GHz) processor
-
1x DDR5 4800MHz so-DIMM slot, up to 32GB
-
2x RTL8111H Gigabit ethernet controllers
-
1x M.2_WIFI/4G interface, 1x mini PCIE
-
1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
-
2x COM (RS-232), COM1 can switch to RS-485 signal
-
1x HDMI, 1xDP, 1xVGA, 1x TypeC
-
1x Audio (Line out and MIC two-in-one interface)
-
2x USB3.0, 3x USB2.0
-
TPM2.0 hardware encryption(optional)
-
DC 12V power supply
-
Support Pfsense/OPNsense/Ubuntu/win10/win11
Specifications
Motherboard
-
CPU Intel® Processor i3-N305
-
BIOS AMI 128M BIOS
-
System memory DDR5 4800MHz so-DIMM slot, MAX 32GB RAM
Storage
-
SATA 1x SATA3.0
-
MSATA None
-
M.2 1x M.2 SSD (NGFF/PCIE adaptive)
Ethernet
-
LAN Port Two RJ-45 ports
-
Ethernet Controller Two Realtek RTL8111H network Controllers
System I/O
-
Display VGA/HDMI/DP/Type-C
-
USB Two USB3.2, three USB2.0
-
COM Two COM(COM1 RS232,COM2 RS232/RS485)
-
Audio None
-
Power switch One switch
-
Indicator One HDD Led, One Power HDD
-
Expansion 1* GPIO
Power supply
-
Power consumption DC 12V External power adapter
-
Power input 100 ~ 240V full range AC input
Environmental
-
Operate Temperature -10°C ~ 60°C
-
Storage Temperature -20°C ~ 70°C
-
Operate Humidity 5% ~ 85% non-condensing
-
Storage Humidity 5% ~ 95% non-condensing
Mechanical
-
Chassis Color Black
-
Construction Aluminum extrusion chassis
-
Dimensions (D x W x H) 125x148x55 mm
-
Weight 1.5 kg
Ordering informations
-
MPC-N3022 Fanless Box PC, Mini size aluminum extrusion chassis, Intel N305 CPU, 2x GbE LAN, 2x COM, 1XDP, 1x HDMI,1x TypeC, 5x USB, 1x Audio, DC 12 input
