  3. Network application Box PC with N100 CPU 4x 2.5GbE LAN 2x COM 2x HDMI

MPC-N1024

MPC-N1024

Network application Box PC with N100 CPU 4x 2.5GbE LAN 2x COM 2x HDMI

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

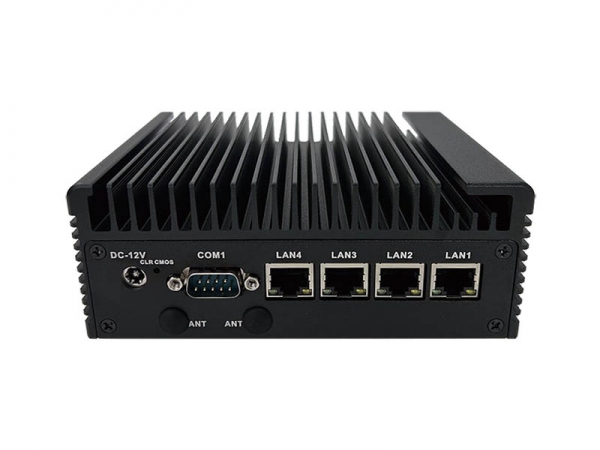

Network Application PC With N100 CPU
Network Application PC With N100 CPU

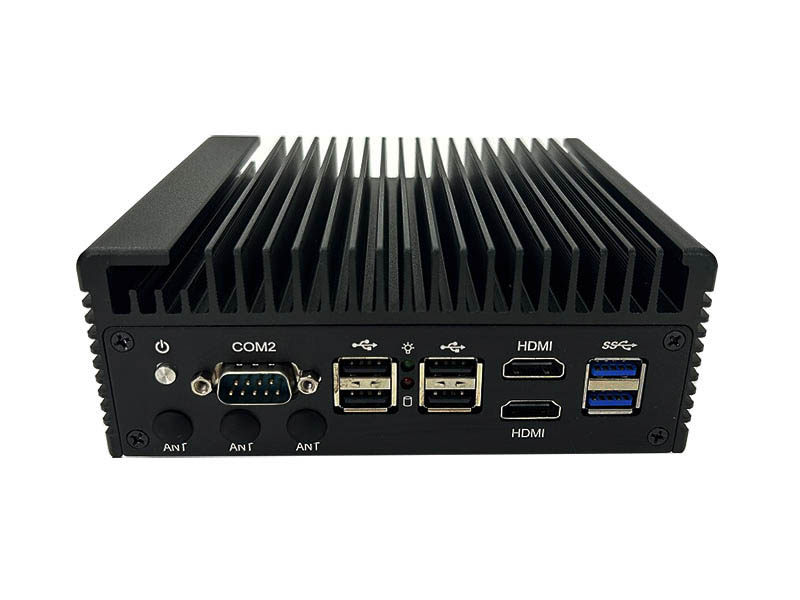

Box PC With 4 Intel I226 LAN
Box PC With 4 Intel I226 LAN

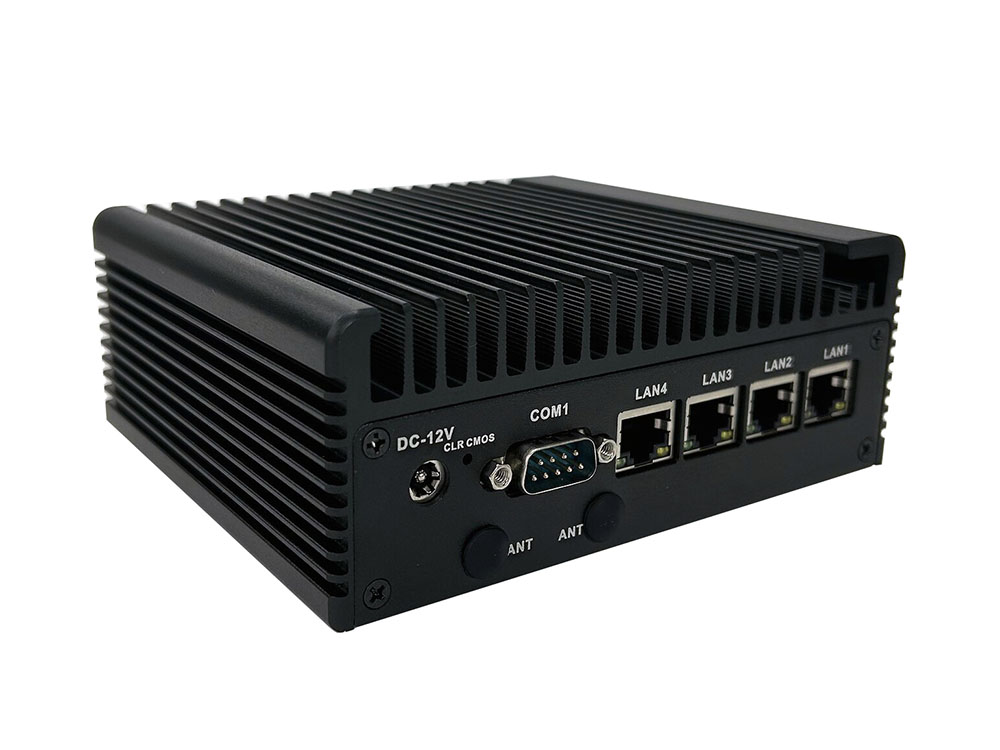

Network application PC with N100 CPU [Photo.3]
Network application PC with N100 CPU [Photo.3]

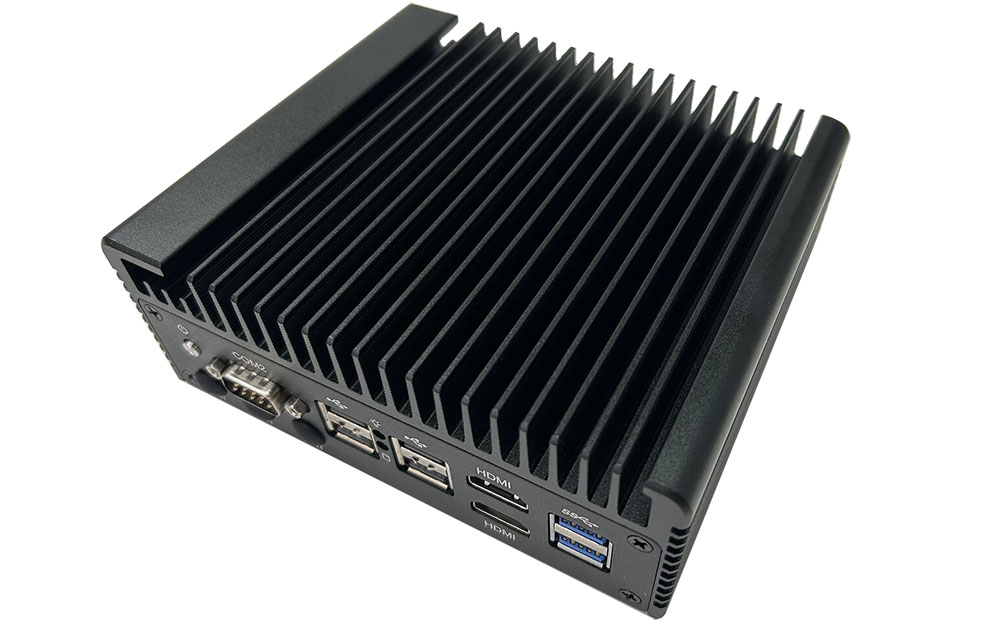

Network application PC with N100 CPU [Photo.4]
Network application PC with N100 CPU [Photo.4]

BOX PC, Fanless design mini PC for network application, Intel N100 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 4x USB, DC 12 input.

Features
  • Intel® N100 (6M Cache, up to 3.40 GHz) processor
  • 1x DDR5 4800MHz so-DIMM  slot, up to 16GB
  • 4x Intel i226 2.5G controllers
  • 1x M.2_WIFI/4G interface, 1x mini PCIE
  • 1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
  • 2x COM (RS-232), COM1 can switch to RS-485 signal
  • 2x HDMI
  • 2x USB3.0, 4x USB2.0
  • TPM2.0 hardware encryption (optional)
  • DC 12V power supply
  • Support Pfsense/OPNsense/Ubuntu/win10/win11
Specifications
Motherboard
  • CPU   Intel® Processor N100
  • BIOS   AMI 128M BIOS
  • System memory   DDR5 4800MHz so-DIMM slot, MAX 16GB RAM
Storage
  • SATA   1x SATA3.0
  • MSATA   None
  • M.2   1x M.2 SSD (NGFF/PCIE adaptive)
Ethernet
  • LAN Port Four RJ-45 ports
  • Ethernet Controller Four Intel i226 2.5G network Controllers
System I/O
  • Display Two HDMI
  • USB Two USB3.0, Four USB2.0
  • COM Two COM(COM1 RS232,COM2 RS232/RS485)
  • Audio None
  • Power switch One switch
  • Indicator One HDD Led, One Power HDD
Power supply
  • Power consumption DC 12V External power adapter
  • Power input 100 ~ 240V full range AC input
Environmental
  • Operate Temperature -10°C ~ 60°C
  • Storage Temperature -20°C ~ 70°C
  • Operate Humidity 5% ~ 85% non-condensing
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black
  • Construction Aluminum extrusion chassis
  • Dimensions (D x W x H) 125x148x55 mm
  • Weight 1.5 kg
Ordering informations
  • MPC-N1024 Box PC, Mini size aluminum extrusion chassis, Intel N100 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, DC 12 input
