Fanless design industrial mini computer with 2x com 2x LAN 1x onboard SIM socket

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Mini Computer With Onboard SIM Socket

Industrial Computer With SIM Socket

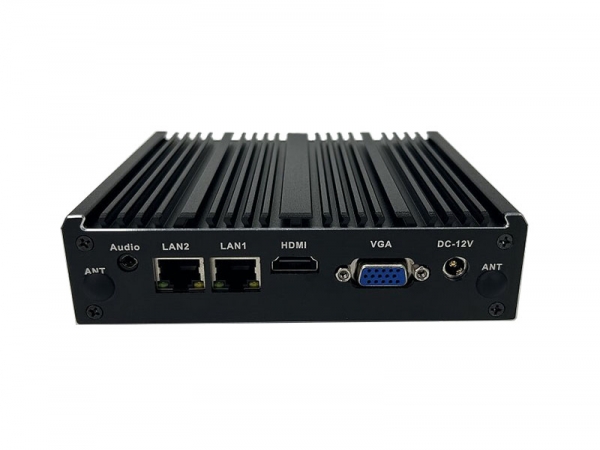

Fanless design industrial mini computer, with aluminum extrusion chassis, Intel Celeron N2840 CPU, 2x COM, 2x GbE RJ45, 1x HDMI, 1xVGA, 1x onboard SIM socket, 4 USB.

Features

Fanless design industrial mini computer
Intel Celeron N2840 dual-core processor
1x DDR3 lso-DIMM slot, up to 8GB
1x SATA, 1x mSATA
2x Realtek Gbe LAN
1x VGA, 1x HDMI (supports dual-screen synchronous display)
2x COM (RS-232), COM1 can switch to RS-485 signal
1x WiFi or 4G module
1x USB3.0, 3x USB2.0
DC 12V power supply
Supports Win7/Win8/Win10/Linux
Supports industrial-application environment

Specifications

Motherboard

CPU Intel Bay trail N2840 processor
BIOS AMI UEFI BIOS
System memory DDR3L 1333MHz 1x SO-DIMM slot, MAX 8GB RAM

Storage

SATA One SATA 6G/s standard socket
MSATA One mSATA socket
CF slot None

Ethernet

LAN Port Two 10/100/1000Mbps RJ-45 ports
Ethernet Controller Two Realtek RTL8106E/RTL8111H Network Controllers

System I/O

Display One VGA, one HDMI
USB One USB3.0, three USB2.0
COM Two COM(COM1 RS232,COM2 RS232/RS485)

Power supply

Power consumption DC12V External power adapter
Power input 100 ~ 240V full range AC input

Environmental

Operate Temperature -0°C ~ 60°C
Storage Temperature -40°C ~ 80°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 127x145x37 mm
Weight 1.5 kg

Ordering informations

MPC-N2822S Industrial mini computer,Aluminum extrusion chassis, Intel Celeron N2840 CPU, 2x COM, 2x GbE RJ45, 1x HDMI, 1xVGA, 1x onboard SIM socket, 4 USB, DC 12V Power adapter
