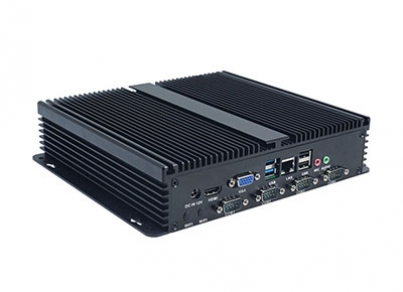

Mini itx PC case for mini itx board

Model NO. MPC-6800J

Customization OEM accepted

Datasheet (PDF) [4] Images

Mini Itx PC

Mini Itx Case

Mini Case

Mini Itx Board

Features

Fanless design mini box PC
Intel Celeron J1900 Quad Core 2.0G CPU
170*170mm Mini ITX mainboard
4*COM(can up to 6*com),1*DC-IN 12V,1*RJ-45 lan,1*VGA,1*HDMI,2* WiFI hole?,7*usb2.0, 1usb3.0,1*Audio,1*Mic
1*SATA, 1*MINISATA, 500G(optional 500~1T),SSD 16G/(standard 32G)/64G/128G/256G optional
2 x Mini-PCIE , 1 x SIM slot, support WiFi/3G
Standard 12V DC input;
Support Windows7/8/10, Linux.

Specifications

Material Aluminum Alloy
CPU CPU?Intel Baytrial quard core J1900 2.0GHZ
Chipset Intel express chipset
RAM
1*SODDR3, support Max 8G
Storage 1*SATA, 1*MINISATA, 500G(optional 500~1T),SSD 16G/(standard 32G)/64G/128G/256G optional
Display Interface 1*VGA, 1*HDMI
Display Intel HD graphic card?
Network 1*Realtek 8111E 10/100/1000M Lan
Expansion 2*Mini-PCIE ,support wifi/3G
I/O 1*VGA
4*COM(can up to 6*com)
1*DC-IN 12V
1*RJ-45 lan
1*HDMI
2* WiFI hole?
7*usb2.0, 1usb3.0
1*Audio
1*Mic
Built-in I/O 4*usb2.0
2*PWROUT
1*AUDIO
1*LVDS
1*CPUFAN and SYSTEM FAN
1*SIM
1*JVGA
1*ATX-12V
Watch Dog Timer Support
Power Supply DC12V-IN power supply and AC power adapter
Operating System Windows 7/8/10, Linux
BIOS AMI 32M BIOS, ACPI supported
Working Temperature -20°C - 60°C
Working Humidity 0% - 95% relative humidity, Non-condensing
Dimenstions 234*200*52mm? (W*D*H)
Weight 2.5kg

Ordering informations

MPC-6800J Fanless design mini box PC, with Intel J1900 Processor, 2G RAM, 32GSSD,12V DC power
