MPC-N2822

MPC-N2822

Mini Industrial computer with 2x LAN 2x COM 1x HDMI 1xVGA Intel N2840 processor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

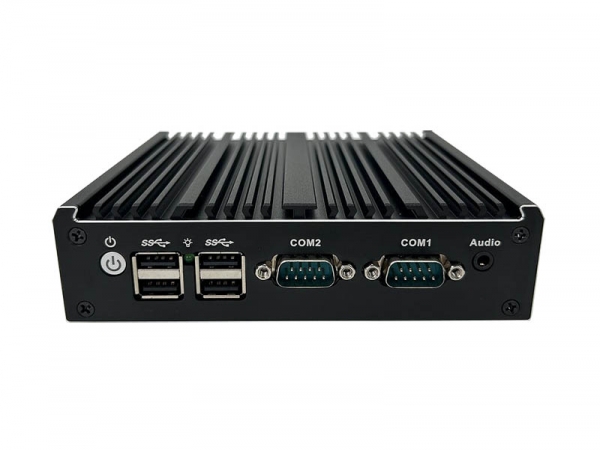

Mini Industrial Computer With Intel Celeron N2840 Processor
Mini Industrial Computer With Intel Celeron N2840 Processor

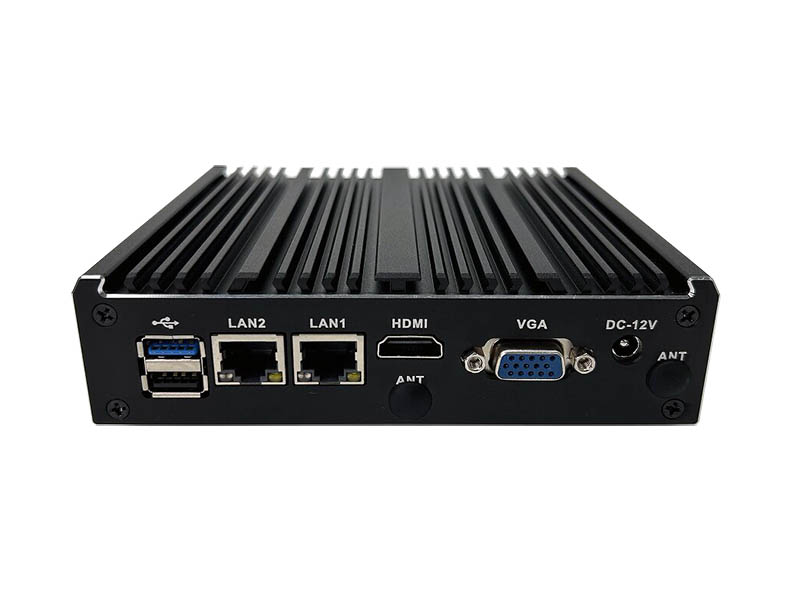

Mini Industrial computer with Intel Celeron N2840 processor [Photo.2]
Mini Industrial computer with Intel Celeron N2840 processor [Photo.2]

Mini Industrial computer, Fanless design, Aluminum extrusion chassis, Intel Celeron N2840 CPU, 2x RS232 COM(COM2 RS232/RS-485), 2x GbE RJ45, 1x HDMI, 1xVGA, 6 USB

Features
  • Fanless design Mini PC
  • Intel Celeron N2840 dual-core processor
  • 1x DDR3 lso-DIMM slot, up to 8GB
  • 1x SATA, 1x mSATA
  • 2x Realtek RTL8111H network controllers
  • 1x VGA, 1x HDMI (supports dual-screen synchronous display)
  • 2x COM (RS-232), COM1 can switch to RS-485 signal
  • 1x USB3.0, 5x USB2.0
  • 1x Audio (Line out and MIC two-in-one interface)
  • 1x WiFi or 4G module
  • DC 12V power supply
  • Supports Win7/Win8/Win10/Linux
  • Supports industrial-application environment
Specifications
Motherboard
  • CPU   Intel Bay trail N2840 processor
  • BIOS   AMI UEFI BIOS
  • System memory   DDR3L 1333MHz 1x SO-DIMM slot, MAX 8GB RAM
Storage
  • SATA   One SATA 6G/s standard socket
  • MSATA   One mSATA socket
  • CF slot   None
Ethernet
  • LAN Port Two 10/100/1000Mbps RJ-45 ports

  • Ethernet Controller Two Realtek RTL8111H Network Controllers

System I/O
  • Display One VGA, one HDMI
  • USB One USB3.0, three USB2.0
  • COM Two COM(COM1 RS232,COM2 RS232/RS485)
  • Audio One Line out and MIC two-in-one jack
  • Power switch One switch with Led
  • Indicator One HDD Led
Power supply
  • Power consumption DC12V External power adapter
  • Power input 100 ~ 240V full range AC input
Environmental
  • Operate Temperature -0°C ~ 60°C
  • Storage Temperature -40°C ~ 80°C
  • Operate Humidity 5% ~ 85% non-condensing
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black
  • Construction Aluminum extrusion chassis
  • Dimensions (D x W x H) 127x145x37 mm
  • Weight 1.5 kg
Ordering informations
  • MPC-N2822 Mini Industrial computer, Aluminum extrusion chassis, Intel Celeron N2840 CPU, 2x COM, 2x GbE RJ45, 1x HDMI, 1xVGA, 6 USB, DC 12V Power adapter
