- Box PC with Intel Celeron N100 CPU
Box PC With VGA DP HDMI TypeC Options
Fanless PC
Industrial Mini PC, Fanless design, Intel Celeron J4125 CPU, 2x COM, 2x GbE LAN, 1x HDMI, 5 USB, 1x Audio.
Features
- Intel® N100 (6M Cache, up to 3.40 GHz) processor
- 1x DDR5 4800MHz so-DIMM slot, up to 32GB
- 2x RTL8111H Gigabit ethernet controllers
- 1x M.2_WIFI interface, 1x MPE (4G/WIFI), 1xM.2_5G interface, 1x SIM soket
- 1x SATA3.2, 1x M.2 SSD (NGFF/PCIE adaptive)

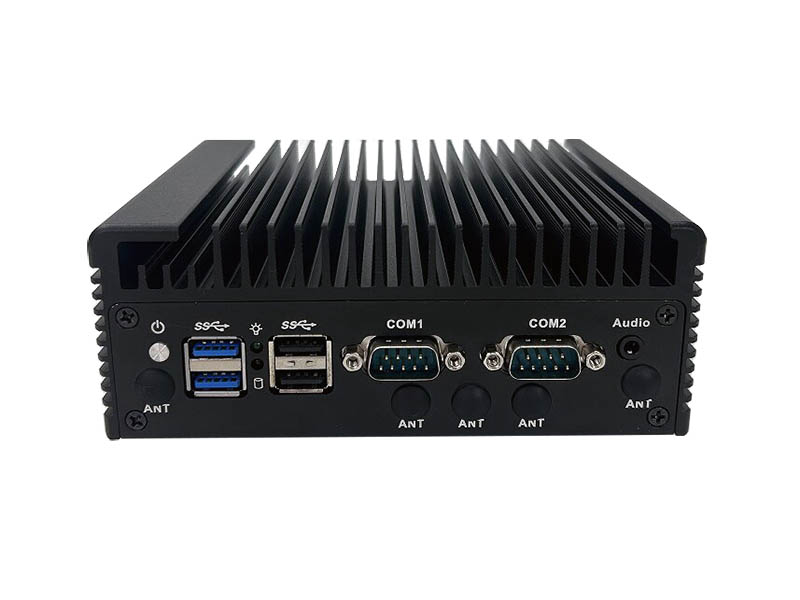

- 2x COM (RS-232), COM1 can switch to RS-485 signal

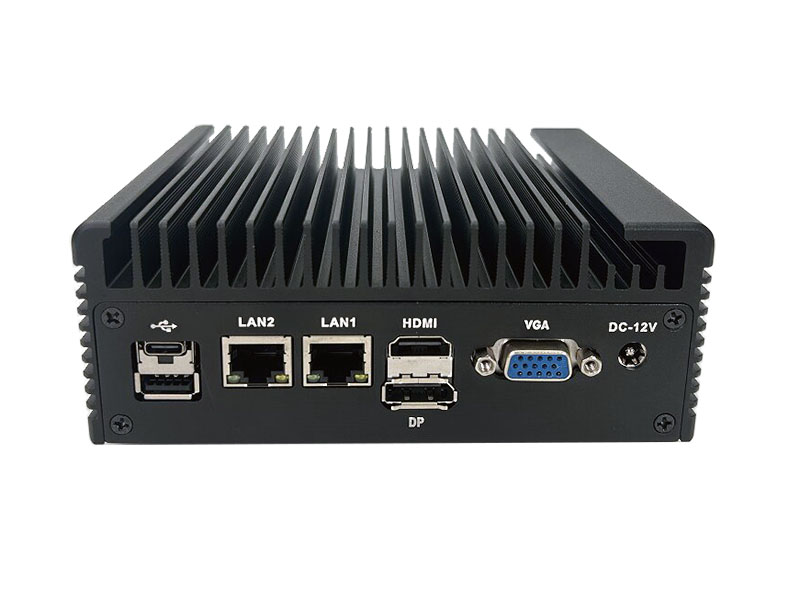

- 1x VGA(HDMI/DP), 1x TypeC, 1x HDMI, 1x DP
- 2x USB3.0, 3x USB2.0
- 1x Audio (Line out and MIC two-in-one interface)
- TPM2.0 hardware encryption (optional)
- DC 12V power supply
- Supports Win10/Linux
Specifications
Motherboard
-
CPU
Intel® Processor N100
-
BIOS
AMI 128M BIOS
-
System memory
DDR5 4800MHz so-DIMM slot, MAX 32GB RAM
Storage
-
SATA
1x SATA3.0
-
MSATA
None
-
M.2
1x M.2 SSD (NGFF/PCIE adaptive)
Ethernet
-
LAN Port
Two 10/100/1000Mbps RJ-45 ports
-
Ethernet Controller
Two Realtek RTL8111H network Controllers
System I/O
-
Display
VGA/HDMI/DP/Type-C
-
USB
Two USB3.0, three USB2.0
-
COM
Two COM(COM1 RS232,COM2 RS232/RS485)
-
Audio
One Line out and MIC two-in-one jack
-
Power switch
One switch
-
Indicator
One HDD Led, One Power HDD
-
Expansion
One GPIO
Power supply
-
Power consumption
DC 12V External power adapter
-
Power input
100 ~ 240V full range AC input
Environmental
-
Operate Temperature
-10°C ~ 60°C
-
Storage Temperature
-20°C ~ 70°C
-
Operate Humidity
5% ~ 85% non-condensing
-
Storage Humidity
5% ~ 95% non-condensing
Mechanical
-
Chassis Color
Black
-
Construction
Aluminum extrusion chassis
-
Dimensions (D x W x H)
125x148x55 mm
-
Weight
1.5 kg
Ordering informations
-
MPC-N1022
Industrial Mini box PC, Aluminum extrusion chassis, Intel N100 CPU, 2x COM, 2x GbE LAN, 1xVGA, 1XDP, 1x HDMI,1x TypeC, 5x USB, 1x Audio, DC 12 input
