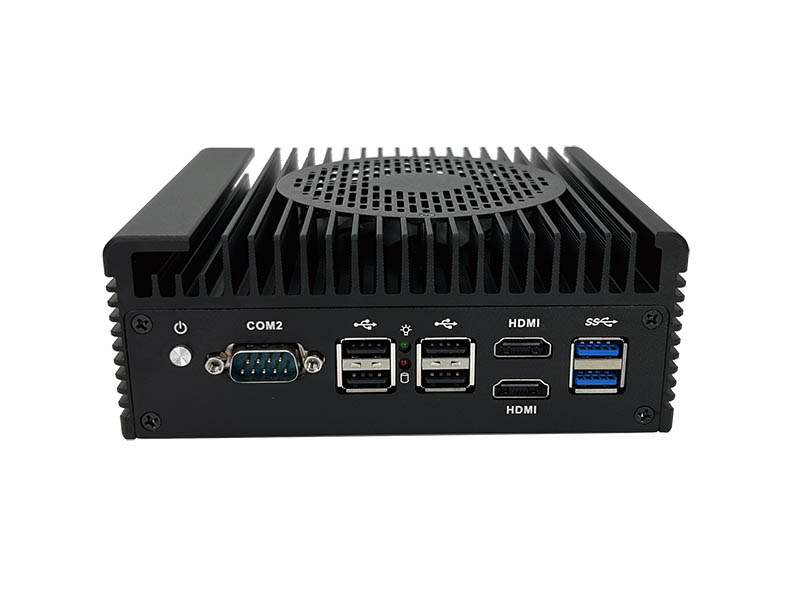

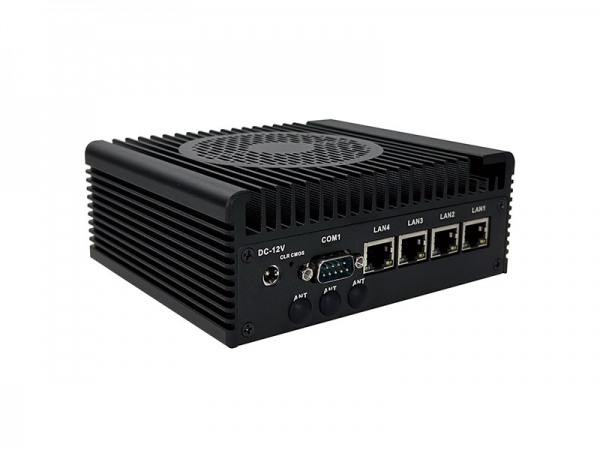

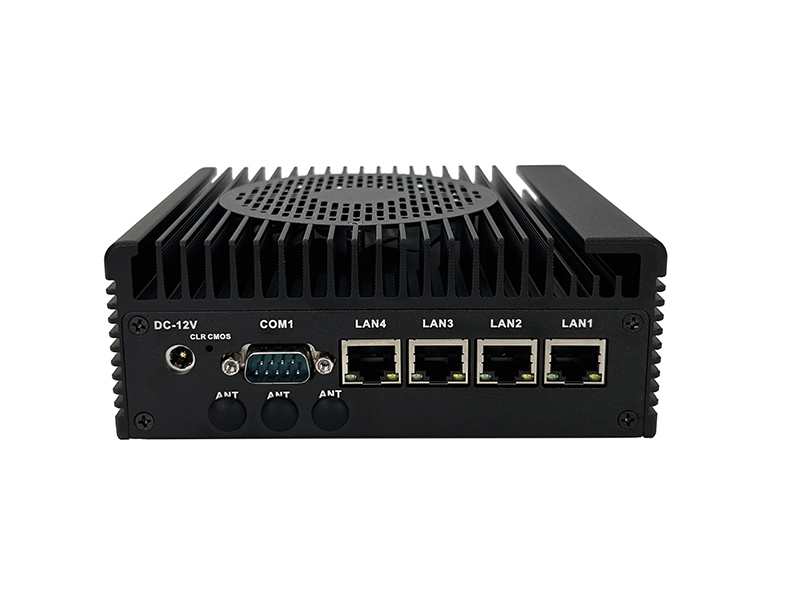

Network application fanless box pc with N305 processor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [3] Images

Network Application Box Pc

Box Pc With N305 Processor

Fanless Network Appliance

BOX PC, network appliance, Fanless design mini PC for network application, Supports Pfsense/ OPNsense/ Ubuntu/ win10/ win11 os. Intel i3-N305 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, DC 12 input.

Features

Intel® i3-N305 (6M Cache, up to 3.80 GHz) processor
1x DDR5 4800MHz so-DIMM slot, up to 16GB
4x Intel i226 2.5G controllers
1x M.2_WIFI/4G interface, 1x mini PCIE
1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
2x COM (RS-232), COM1 can switch to RS-485 signal
2x HDMI
2x USB3.0, 4x USB2.0
TPM2.0 hardware encryption (optional)
DC 12V power supply
Supports Pfsense/OPNsense/Ubuntu/win 10/win 11

Specifications

Motherboard

CPU Intel® Processor i3-N305
BIOS AMI 128M BIOS
System memory DDR5 4800MHz so-DIMM slot, MAX 16GB RAM

Storage

SATA 1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
MSATA One mSATA3 socket
CF slot None

Ethernet

LAN Port Four RJ-45 ports
Ethernet Controller Four Intel i226 2.5G network Controllers

System I/O

Display Two HDMI
USB Two USB3.0, Four USB2.0
COM Two COM(COM1 RS232,COM2 RS232/RS485)
Audio None
Power switch One switch
Indicator One HDD Led, One Power HDD

Power supply

Power consumption DC 12V External power adapter
Power input 100 ~ 240V full range AC input

Environmental

Operate Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 125x148x55 mm
Weight 1.5 kg

Ordering informations

MPC-N3024 Box PC, Mini size aluminum extrusion chassis, Intel N305 CPU, 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, DC 12 input
