Fanless box mini pc with N305 processor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

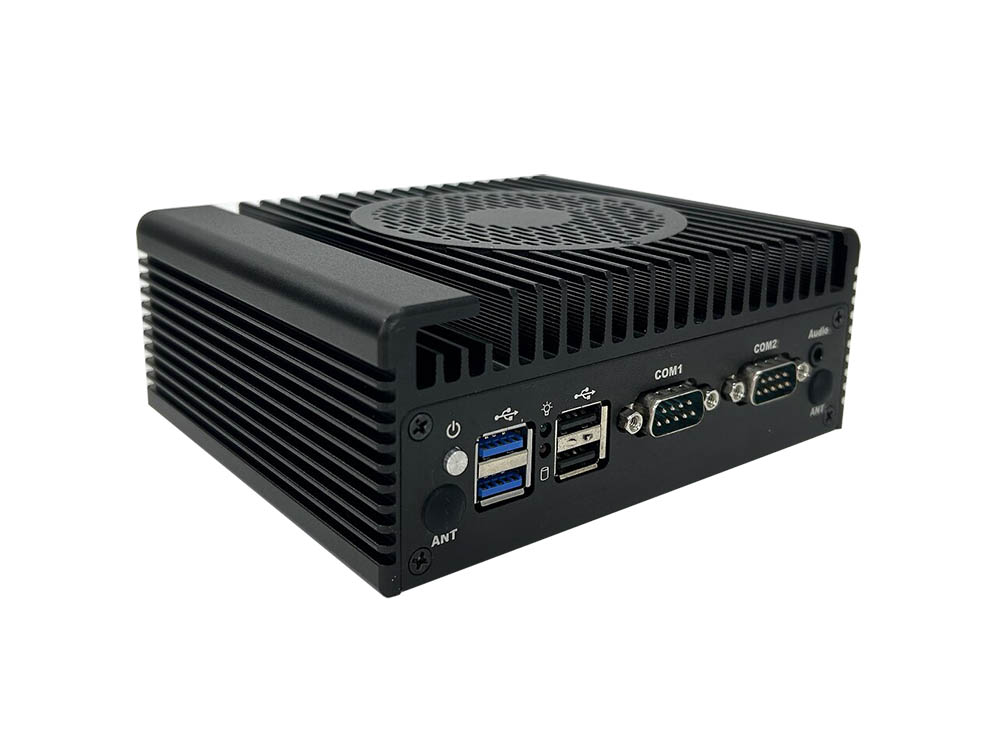

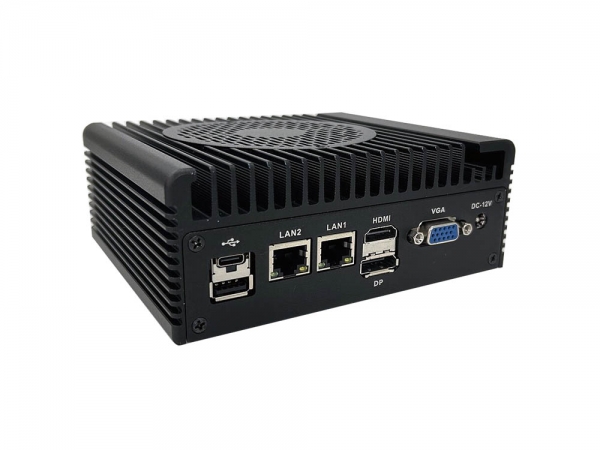

Mini Pc With N305 Processor

Fanless Box PC With N305 CPU

BOX PC, Fanless design mini PC for network application, Intel i3-N305 CPU, 2x GbE LAN, 2x COM, 1x HDMI, 1xDP, 1xVGA, 1x TypeC, 1x Audio, 6x USB, DC 12 input.

Features

Intel® i3-N305 (6M Cache, up to 3.80 GHz) processor
1x DDR5 4800MHz so-DIMM slot, up to 32GB
2x RTL8111H Gigabit ethernet controllers
1x M.2_WIFI/4G interface, 1x mini PCIE
1x SATA3.0, 1x M.2 SSD (NGFF/PCIE adaptive)
2x COM (RS-232), COM1 can switch to RS-485 signal
1x HDMI, 1xDP, 1xVGA, 1x TypeC
1x Audio (Line out and MIC two-in-one interface)
2x USB3.0, 3x USB2.0
TPM2.0 hardware encryption(optional)
DC 12V power supply
Support Pfsense/OPNsense/Ubuntu/win10/win11

Specifications

Motherboard

CPU Intel® Processor i3-N305
BIOS AMI 128M BIOS
System memory DDR5 4800MHz so-DIMM slot, MAX 32GB RAM

Storage

SATA 1x SATA3.0
MSATA None
M.2 1x M.2 SSD (NGFF/PCIE adaptive)

Ethernet

LAN Port Two RJ-45 ports
Ethernet Controller Two Realtek RTL8111H network Controllers

System I/O

Display VGA/HDMI/DP/Type-C
USB Two USB3.2, three USB2.0
COM Two COM(COM1 RS232,COM2 RS232/RS485)
Audio None
Power switch One switch
Indicator One HDD Led, One Power HDD
Expansion 1* GPIO

Power supply

Power consumption DC 12V External power adapter
Power input 100 ~ 240V full range AC input

Environmental

Operate Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 125x148x55 mm
Weight 1.5 kg

Ordering informations

MPC-N3022 Fanless Box PC, Mini size aluminum extrusion chassis, Intel N305 CPU, 2x GbE LAN, 2x COM, 1XDP, 1x HDMI,1x TypeC, 5x USB, 1x Audio, DC 12 input
