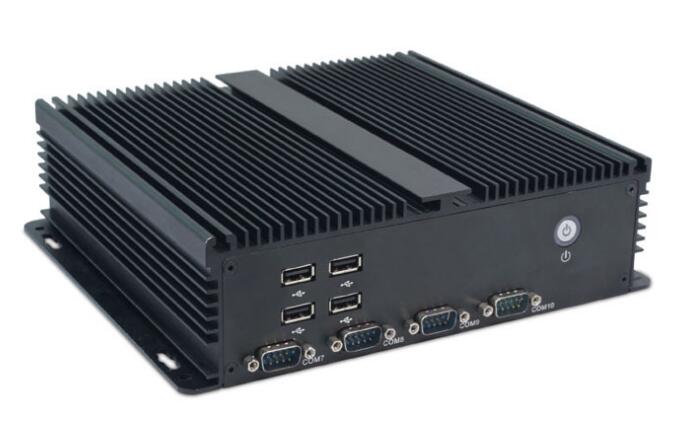

Fanless mini box PC with 10 COM LVDS and VGA

Box Pc

MPC-1080U


Place of Origin: China
OEM/ODM accepted

Datasheet Download [4] Images
Features
  • Fanless design mini box PC
  • Aluminum alloy case with two mount racks
  • Intel Celeron 1037U dual core 1.8GHz CPU
  • 2 x VGA, 1 x HDMI, 1 x LVDS, 8 x USB2.0, 10 x COM (optional),2G Ram
  • AMI 32Mbit .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
  • 3 x SATA,2 x Mini-iPCIE, support wifi/3G and MSATA
  • DC onboard power supply 12V and AC power adapter 12V/5A
  • Support Windows7/8/10, Linux.
Specifications
CPUIntel Celeron 1037U Dual Core 1.8GHz
ChipsetIntel NM70
RAM1 x SO DDR3 Memory Slot,Max 8G
DisplayIntegrated Intel HD2500 graphics support LVDS,HDMI,VGA
synchronous and asynchronous dual display
Expansion3 x SATA,2 x MINI PCI-E,1 x MSATA,support WiFi and SSD
Storage1 x 2.5"HDD
AudioRealtek ALC662 chip,Line-in,Line-out
Network2 x Gigabit RTL8111E 1000M LAN,support RTL and PXE diskless    boot
I/OUSB 2.08 (4 x USB2.0 on the front panel)
COM RS23210
HDMI1
VGA2
RJ45 LAN2
BIOSAMI BIOS,ACPI supported electricity boot
WDTWatchdog timer 256 level,programmable
Power SupplyAC110~240V To DC 12V 5A/7A power adapter
TempStorage Temperature-20°~80°
Working Temperature-20°~60°
Humidity10%~90% Non-condensing
Dimension234 x 200 x 64.5MM (L x W x H)
Weight2.5KG
PackingEach in a paper box (340 x 310 x 160MM),5 pcs per carton (710    x 350 x 310MM)
Ordering informations
MPC-1080UFanless design mini box PC, with Intel 1037U Processor, 2G    RAM, 32GSSD,12V DC power
