  3. Box PC Industrial Mini Fanless design 2x COM 2x GbE LAN 1xVGA 1x HDMI

MPC-J4122

MPC-J4122

Box PC Industrial Mini Fanless design 2x COM 2x GbE LAN 1xVGA 1x HDMI

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Mini PC
Mini PC

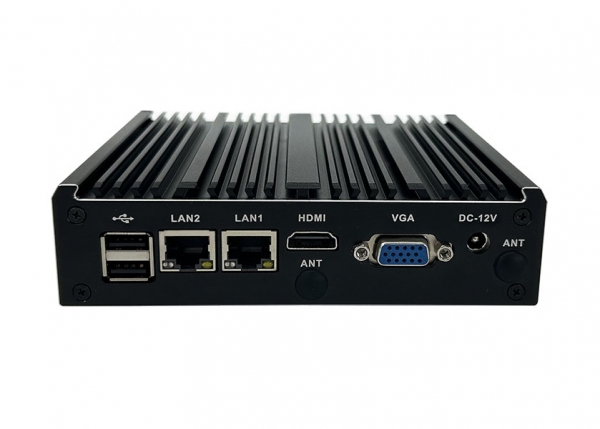

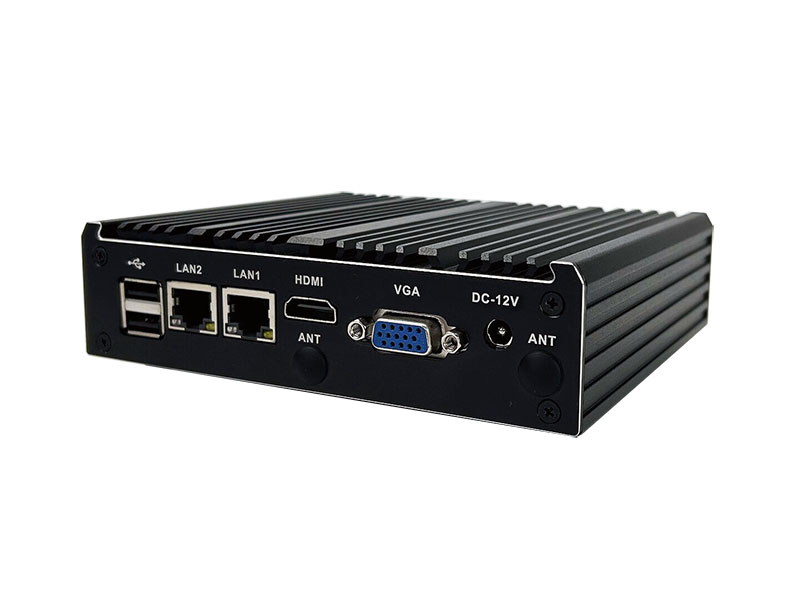

Box PC With 2x COM 2x GbE LAN 1xVGA 1x HDMI Intel Celeron J4125 Processor
Box PC With 2x COM 2x GbE LAN 1xVGA 1x HDMI Intel Celeron J4125 Processor

Mini PC [Photo.3]
Mini PC [Photo.3]

Mini PC [Photo.4]
Mini PC [Photo.4]

Industrial Mini PC, Fanless design, Intel Celeron J4125 processor, 2x COM, 2x GbE LAN, 1xVGA, 1x HDMI, 6 USB, 1x Audio, DC 12 input.

Features
  • Intel Celeron J4125 quad-core processor
  • 1x DDR4 2400MHz so-DIMM  slot, up to 16GB
  • 1x SATA, 1x mSATA
  • 2x Realtek RTL8111H GbE controllers,support wake-on-LAN/PXE
  • 2x COM (RS-232), COM1 can switch to RS-485 signal
  • 1x HDMI and 1xVGA/HDMI
  • 4x USB3.0, 2x USB2.0
  • 1x Audio (Line out and MIC two-in-one interface)
  • 1x WiFi or 4G module
  • Supports Win10/Linux
  • Supports industrial-application environment
Specifications
Motherboard
  • CPU   Intel Celeron J4125 quad-core processor
  • BIOS   64Mb Flash ROM
  • System memory   DDR4 2400MHz so-DIMM  slot, MAX 16GB RAM
Storage
  • SATA   One SATA3 6Gb/s socket
  • MSATA   One mSATA3 socket
  • CF slot   None
Ethernet
  • LAN Port Two 10/100/1000Mbps RJ-45 ports

  • Ethernet Controller Two Realtek RTL8111H network Controllers

System I/O
  • Display one HDMI
  • USB Two USB3.0, Four USB2.0
  • COM Two COM(COM1 RS232,COM2 RS232/RS485)
  • Audio One Line out and MIC two-in-one jack
  • Power switch One switch with Led
  • Indicator One HDD Led
  • Expansion 1* Mini-PCIe
Power supply
  • Power consumption DC 12V External power adapter
  • Power input 100 ~ 240V full range AC input
Environmental
  • Operate Temperature -10°C ~ 60°C
  • Storage Temperature -20°C ~ 70°C
  • Operate Humidity 5% ~ 85% non-condensing
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black
  • Construction Aluminum extrusion chassis

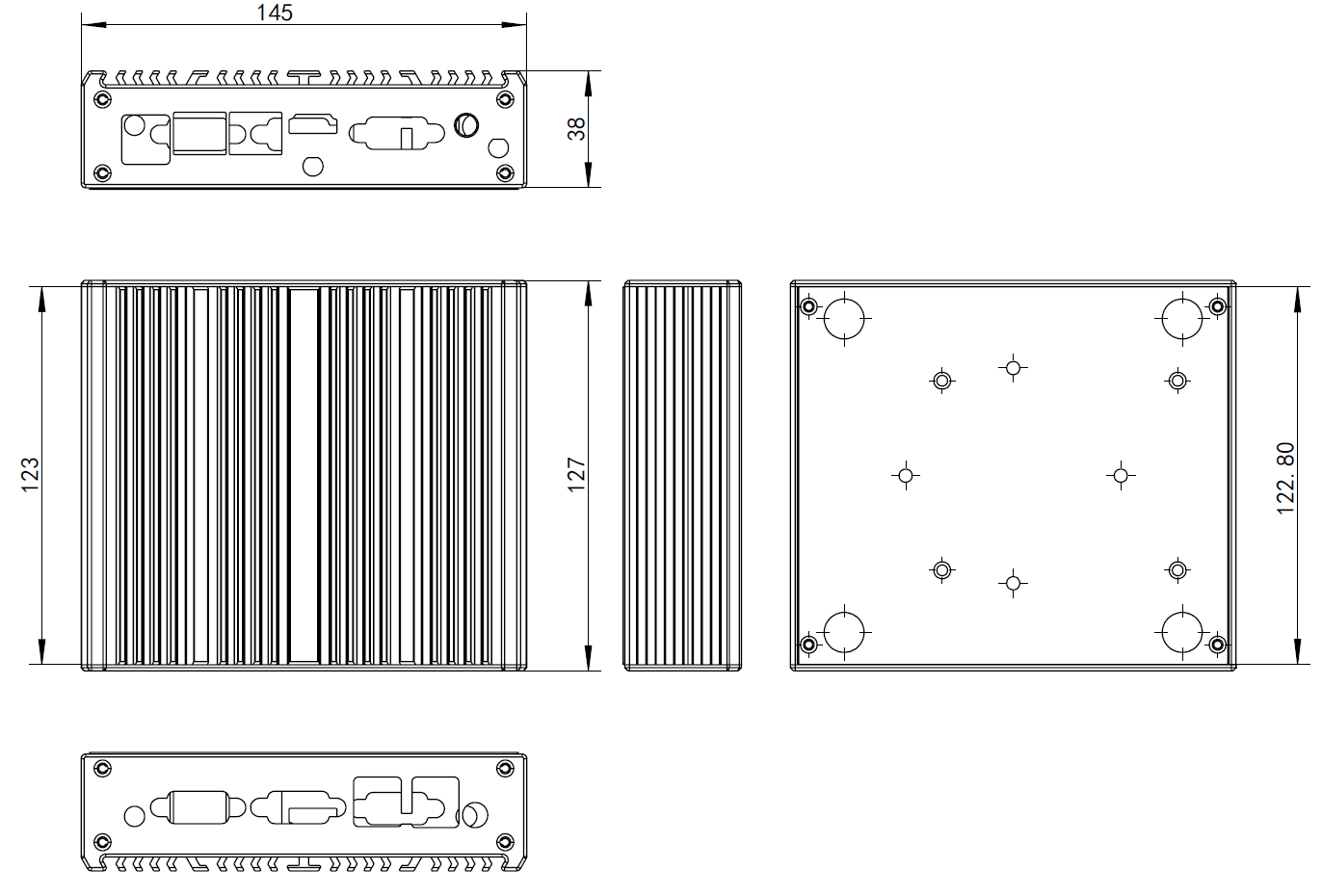

  • Dimensions (W x H x D) 145x38x127 mm
  • Weight 1.5 kg
Ordering informations
  • MPC-J4122 Industrial Mini PC, Aluminum extrusion chassis, Intel Celeron J4125 CPU, 2x COM, 2x GbE LAN, 1xVGA, 1x HDMI, 6 USB, 1x Audio, DC 12 input
  • MPC-J4122H Industrial Mini PC, Aluminum extrusion chassis, Intel Celeron J4125 CPU, 2x COM, 2x GbE LAN, 1xVGA, 2x HDMI, 6 USB, 1x Audio, DC 12 input
