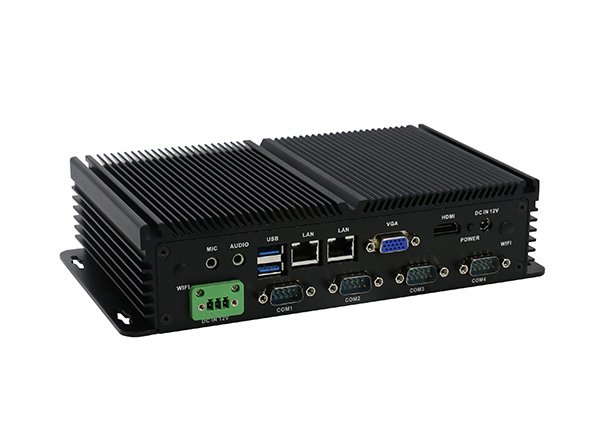

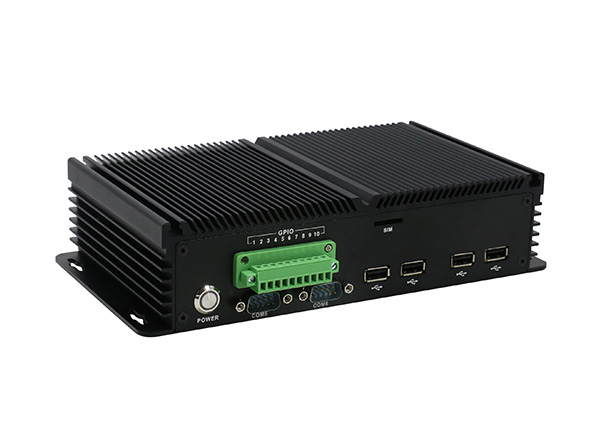

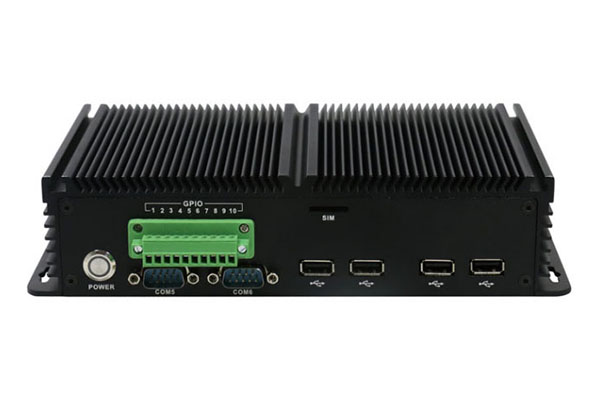

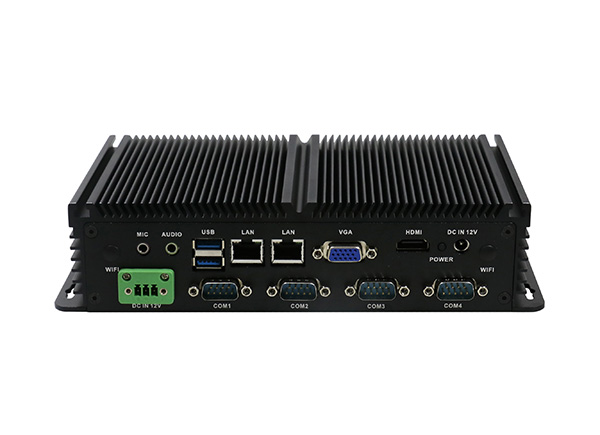

Fanless Mini box PC with with Intel J1900 Processor 2G RAM 32G SSD

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Fanless PC

Box PC
Box PC

Mini PC
Mini PC

Fanless PC [Photo.4]

Features

Fanless design mini box PC
Intel Celeron J1900 Quad Core 2.0G CPU
3.5 inch Embedded Motherboard
6 x COM (2 x COM support RS422/485), 1 x usb3.0, 5 x usb2.0, 1 x HDMI, 1 x VGA, 2 x GbE LAN
2 x Mini-PCIE , 1 x SIM slot, support WiFi/3G and MSATA
Standard 12V DC input;
Support Windows7/8/10, Linux.

Specifications

Material	Aluminum Alloy
CPU	Intel Baytrail quad core J1900(22nm,2.0GHz,2MB second Cache)
Chipset	Intel express chipset
RAM	1*SODDR3 (can up to 8G)
Storage	1MINISATA, 2SATA (32G/64G/128G/256G SSD or 500G/1T HDD is optional)
Display Interface	1VGA, 1HDMI
Display	Integrated Intel HD Graphic card, support VGA,HDMI LVDS display input?
I/O	USB	1USB 3.0, 5 USB 2.0
	COM	6COM (2COM support RS422/485)
	Line In/Out	1
	WIFI Antenna	2
	GPIO	1
	SIM Slot	1
Network Card	2*Intel WGI211AT 1000M Lan, support wake on lan?
Expansion	2mini-PCIE, 1SIM slot, support Wifi/3G and MSATA
Watch Dog Timer	Support
Power Supply	DC_12V
Operating System	Windows 7/8/10, Linux
BIOS	64MB SMT Flash ROM
Working Temperature	-20°C - 60°C
Working Humidity	0% - 95% relative humidity, Non-condensing
Dimenstions	21412254 mm (WDH)
Weight	2.5kg

Ordering informations

MPC-6600J

Fanless design mini box PC, with Intel J1900 Processor, 2G RAM, 32GSSD,12V DC power
