MPC-J1922
Mini ITX case for mini itx mainboard
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
[2] Images
Box PC With Intel J1900 CPU
Fanless PC With Intel J1900 Processor

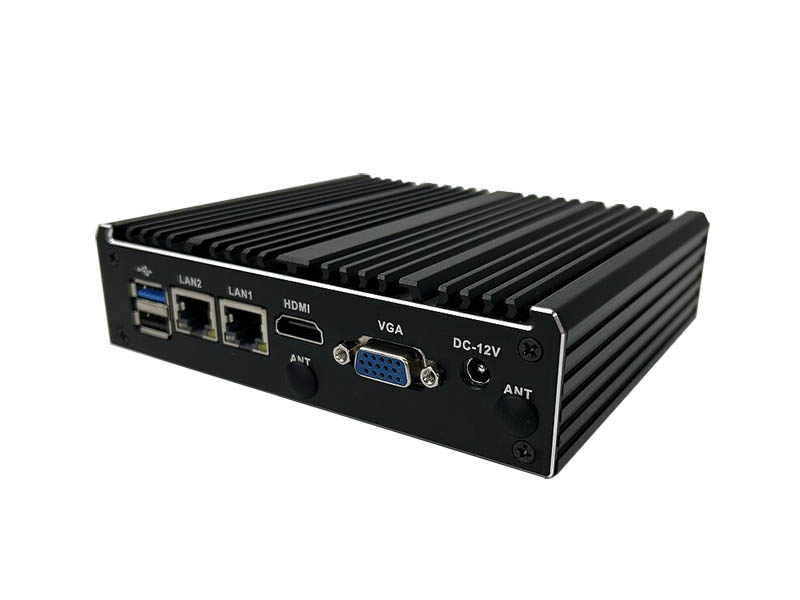

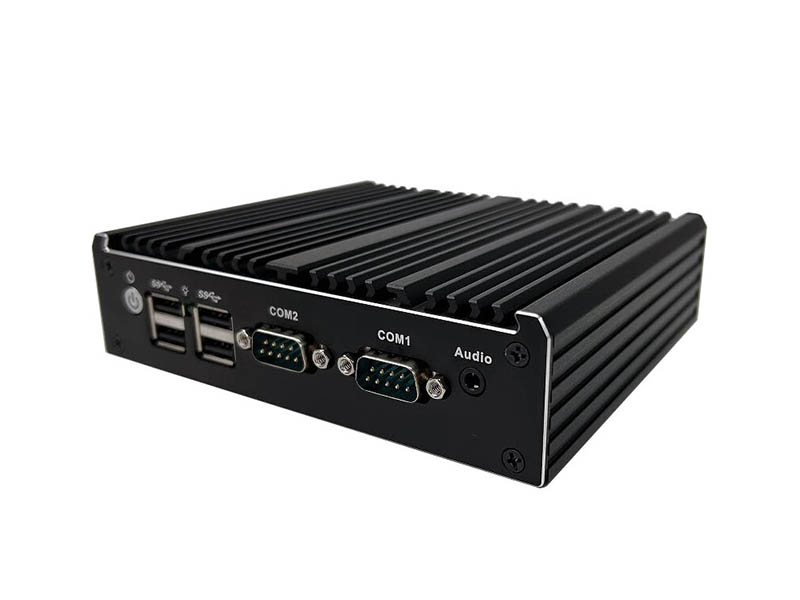

Fanless design box PC, high realtabilty, onboard Intel© J1922 processor, 2 RJ-45 GbE network ports, 2 COM, VGA+HDMI, DC 12V in.
Features
-
Fanless design low power box PC
-
Intel Intel® Celeron J1900 quad-core processor
-
1x DDR3 lso-DIMM slot, up to 8GB
-
1x SATA, 1x mSATA
-
2x Realtek RTL8111H network controllers
-
1x VGA, 1x HDMI (supports dual-screen synchronous display)
-
2x COM (RS-232), COM1 can switch to RS-485 signal
-
1x USB3.0, 5x USB2.0
-
1x Audio (Line out and MIC two-in-one interface)
-
1x WiFi or 4G module
-
DC 12V power supply
-
Supports Win7/Win10/Linux
Specifications
Motherboard
-
CPU Intel Bay trail J1900 processor
-
BIOS 64Mb Flash ROM
-
System memory DDR3L 1333MHz 1x SO-DIMM slot, MAX 8GB RAM
Storage
-
SATA One SATA 6G/s standard socket
-
MSATA One mSATA socket
-
CF slot None
Ethernet
-
LAN Port Two 10/100/1000Mbps RJ-45 ports
-
Ethernet Controller Two Realtek RTL8111H Network Controllers
System I/O
-
Display One VGA, one HDMI
-
USB One USB3.0, Five USB2.0
-
COM Two COM(COM1 RS232,COM2 RS232/RS485)
-
Audio One Line-out + MIC two-in-one jack
-
Power switch One switch with Led
-
Indicator One HDD Led
Power supply
-
Power consumption DC12V External power adapter
-
Power input 100 ~ 240V full range AC input
Environmental
-
Operate Temperature -0°C ~ 60°C
-
Storage Temperature -20°C ~ 70°C
-
Operate Humidity 5% ~ 85% non-condensing
-
Storage Humidity 5% ~ 95% non-condensing
Mechanical
-
Chassis Color Black
-
Construction Aluminum extrusion chassis
-
Dimensions (D x W x H) 127x145x37 mm
-
Weight 1.5 kg
Ordering informations
-
MPC-J1922 Mini box PC, Aluminum extrusion chassis, Intel Celeron J1900 CPU, 2x COM, 2x GbE RJ45, 1x HDMI, 1xVGA, 6x USB, 1x audio, DC 12V Power adapter
