Network security appliance based H61 chipset for linux firewall hardware

Model NO. F61611

Customization OEM accepted

Datasheet (PDF) [3] Images

Network Security Appliance
Network Security Appliance

Network Security Appliance
Network Security Appliance

Network Security Appliance
Network Security Appliance

Features
  • Supports Intel LGA1155 Socket i3/i5/i7 Core or Pentium processor
  • Intel H61 chipset
  • Two 240-pin 1333/1600MHz DDR3 DIMM slots, up to 16 GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • Two SATA2.0 interface
  • Supports USB, CF TypeII, COM
Specifications

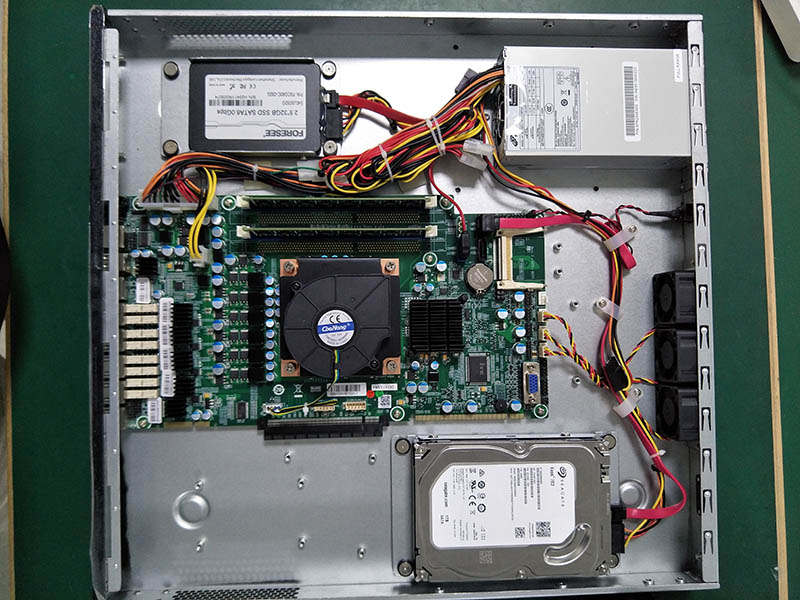

Motherboard
  • CPU Support Intel LGA1155 Socket i3/i5/i7 Core or Pentium processor
  • Chipset Intel H61
  • System memory Two DDR3 slots, up to 16GB
Storage
  • Interface Two SATA2.0 connectors
  • Hard Drive Two 3.5/2.5" HDD trays
  • CF slot One CFII slot
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel PCIe GbE controllers
  • BYPASS Optional 2 channels BYPASS
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB2.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • LCM module Optional 2x16 characters LCM display module
  • Video Built-in one VGA interface, support hot plug(Internal)
  • Expansion One PCIex16
Power supply
  • Power consumption Built-in 250W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing
  • Storage Humidity 5% ~ 95% non-condensing

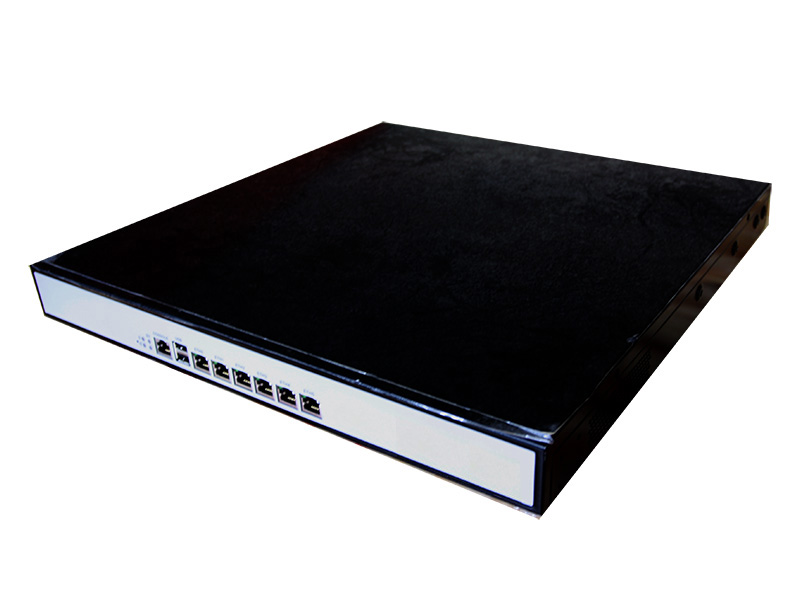

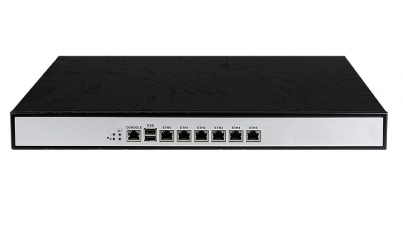

Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 450x430x44.5mm
  • Weight 12.8 kg
Ordering informations
  • F61611-B2 1u rackmount chassis, H61 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
  • F61611-B2P2 1u rackmount chassis, H61 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU
Optional NIC modules
  • 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
  • 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
  • 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
