1U Rackmount Platform for Network Appliance with Intel® Gen10/Gen11 i3/i5/i7 Core, Xeon® processor
Overview

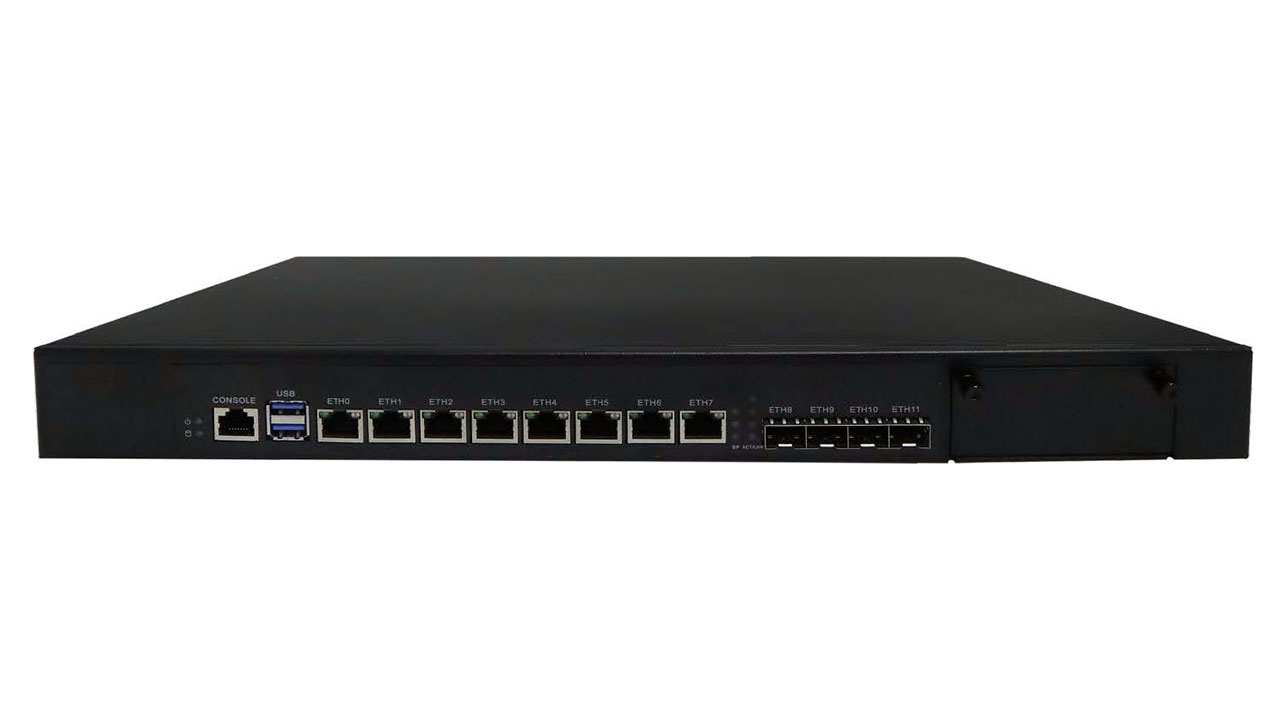

The F58811 is a 1U Rackmount Platform for Network Appliance, Network security appliance, Its motherboard with W580 Chipset, Supports Intel® Gen10/Gen11 i3/i5/i7 Core, Xeon® processor, SATA3.0, mSATA, M.2 multiple storages options and 4 ram slots MAX 128G RAM. 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot for RJ45/ SFP/ SFP+ interfaces, 250W PSU or 450W redundant PSU. It supports dynamic capacity expansion and scalable IO extension.
Features
- Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
- Intel® W580 chipset(Rocket Lake family)
- Four 288pin 2933/3200MHz DDR4 slots, up to 128GB
- Eight Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass
- One extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces
- Supports SATA3.0, mSATA, M.2 multiple storages options
- Front USB3.0, console interface and LED indicators
Specifications
Motherboard
- CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
- Chipset Intel W580
- System memory Four DDR4 slots, up to 128GB
Storage
- Interface Two SATA3.0 connectors, one mSATA and one M.2 slots
- Hard Drive Supports one 3.5/2.5" HDD tray
Ethernet
- LAN Port Eight 2.5G RJ-45 ports
- Ethernet Chip Intel® Ethernet Controller I225-V
- BYPASS Optional 3 channels BYPASS
- Optical ports Four 1G SFP(Optional)
- Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
- USB Two USB3.0
- COM One RJ-45 COM
- Indicator One Power LED, one HDD LED
- LCM module Optional 2x16 characters LCM display module
- Video Built-in one VGA interface, support hot plug(Internal)
- Expansion One NMC slot for extension NIC
Power supply
- Power consumption 250W power supply
- Power input 100 ~ 240V AC input
- Optional DC power or Redundant power
Environmental
- Mounting Supports rack-mounting or desktop-mounting
- Operate Temperature -10°C ~ 50°C
- Storage Temperature -20°C ~ 75°C
- Operate Humidity 5% ~ 85% non-condensing @ 40°C
- Storage Humidity 5% ~ 95% non-condensing
Mechanical
- Chassis Color Black or OEM
- Front panel PVC/Aluminum front panel(OEM/Neutral)
- Construction 1u chassis, Heavy duty metal
- Dimensions (D x W x H) 450x430x45 mm
- Weight 6.2 kg
Ordering informations
- F58811 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU
- F58811-P2 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 450W redundant PSU
- F58811-F4 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 4x 1G SFP, 1 NMC slot, 250W PSU
Optional NIC modules
- 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
- 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
- 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
- 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
- 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
- 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
- 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
- 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
- 71W4 4 10G SFP based on Intel XL710 controllers
- 71B4 4 10G SFP based on Intel XL710 controllers, supports two channel optial bypass
