Firewall hardware connectivity options Motherboard with 8 LAN, 6x 2.5G LAN & 2x 1G LAN and J6413 processor

Firewall Hardware

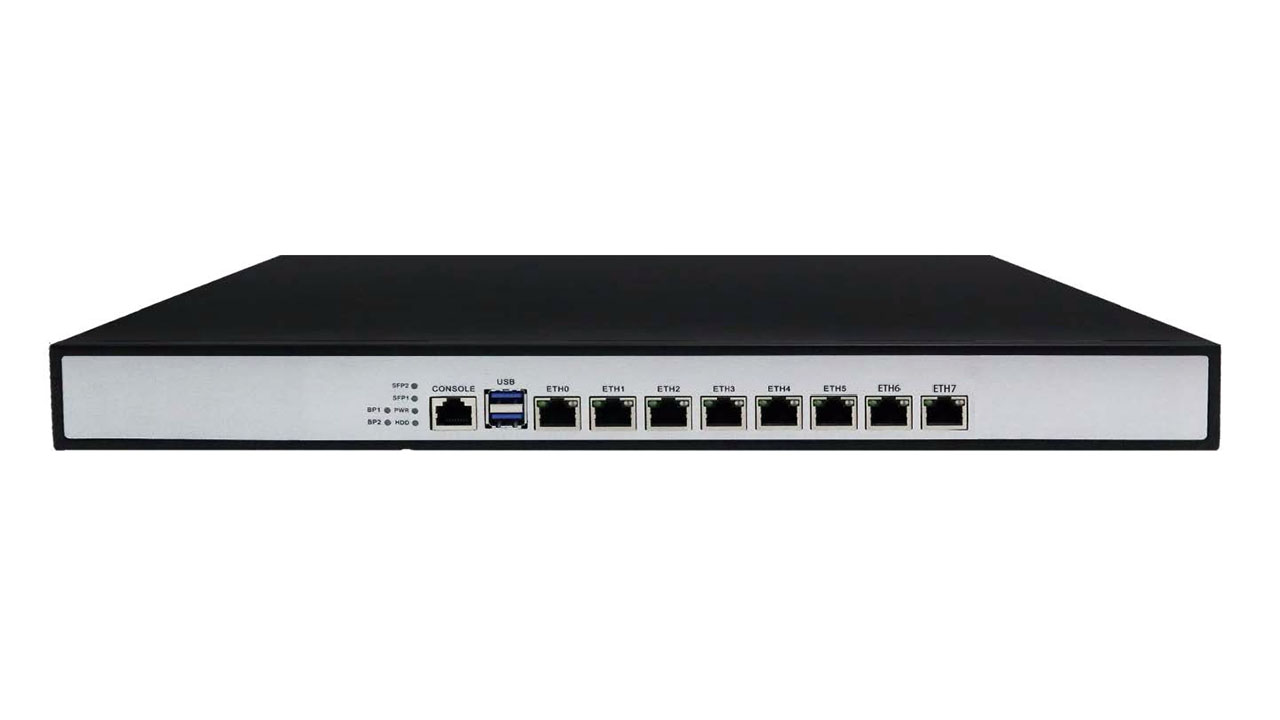

F64811-8L

1u firewall hardware network appliance 8 LAN ports J6413 processor.


Place of Origin: China
OEM/ODM accepted

Datasheet Download [2] Images

Overview

F64811-8L is a firewall hardware barebone appliance. Its motherboard based on Elkhart Lake Intel J6413 processor, 8 LAN ports(6x 2.5G RJ45+ 2x 1G RJ45), 2 channels LAN Bypass, one SATA and one mSATA interface, single 65W or redundant 70W power supply. It has comprehensive connectivity options, and the versatility of open-source. software integration to deliver unmatched performance and reliability. Anxin's F64811 is a model with 8 LAN: 6x 2.5G RJ45+ 2x 1G SFP LAN ports.

Features
  • Firewall hardware appliance 1u rackmoutable
  • Onboard Intel Celeron Quad-core J6413 processor, 1.8GHz, 1.5MB L2 cache
  • One 260-pin 3200MHz so-DIMM slot, up to 32 GB
  • Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass
  • Two RJ45 1G network ports
  • One SATA interface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 console for RS232 communication
Specifications
Motherboard
  • CPU Onboard Intel Celeron J6413 processor CPU
  • System memory One so-DIMM slot, Max 32GB
Storage
  • Interface One SATA connector and one mSATA interface
  • Hard Drive One 2.5/3.5" HDD tray
  • CF slot One CFII slot
Ethernet
  • LAN Port 2.5G Six 2.5G RJ45 network ports
  • Ethernet Controller Intel® Ethernet Controller I225-V
  • BYPASS Two  channels Gen3.0 BYPASS
  • LAN ports 1G Two 1G RJ45 network ports
  • NMC slots None
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Reset Button One built-in reset button
  • Indicator One Power LED, one HDD LED
  • Video Built-in one VGA interface, support hot plug(Internal)
Power supply
  • Power consumption Built-in 65W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 295x430x44.5 mm
  • Weight 6.0 kg
Ordering informations
  • F64811 Firewall hareware appliance, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 65W PSU
  • F64811-L Firewall hardwere appliance, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G RJ45, 2 channels bypass, 65W PSU
