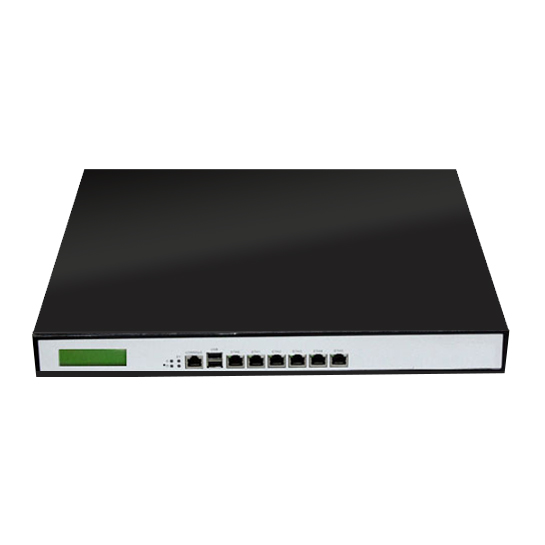

1U network appliance 6 GbE max 14GbE with 2 lan bypass | F23611

F23611

1U network appliance 6 GbE max 14GbE with 2 lan bypass.


Place of Origin: China
OEM/ODM accepted

Datasheet Download [4] Images CPU Optional
Features
  • Supports Intel Gen6/Gen7 Xeon E3-1200, i3/i5/i7 Core, Pentium processor
  • Intel C236 chipset
  • Two 2133/2400MHz DDR4 slots, up to 64GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • Three SATA3.0 6Gb/s interface
  • Supports USB3.0, mSATA, COM
Specifications
Motherboard
  • CPU Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
  • Chipset Intel C236
  • System memory Two 2133/2400MHz DDR4 slots, up to 64 GB
Storage
  • Interface Two SATA3.0 connectors and one mSATA slot
  • Hard Drive Supports two 3.5/2.5" HDD trays
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel PCIe GbE controllers
  • BYPASS Optional 2 channels BYPASS
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • LCM module Optional 2x16 characters LCM display module
  • Video Built-in one VGA interface, support hot plug(Internal)
  • Expansion One PCIex16
Power supply
  • Power consumption Built-in 250W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 450x430x44.5mm
  • Weight 12.8 kg
Ordering informations
  • F23611-B2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
  • F23611-B2P2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W  redundant PSU
Optional NIC modules
  • 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
  • 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
  • 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
  • 71W4 4 10G SFP based on Intel XL710 controllers
