Network security Appliance with intel J6413 cpu and 2 NMC slots

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Network Security Appliance With 2 NMC Slots

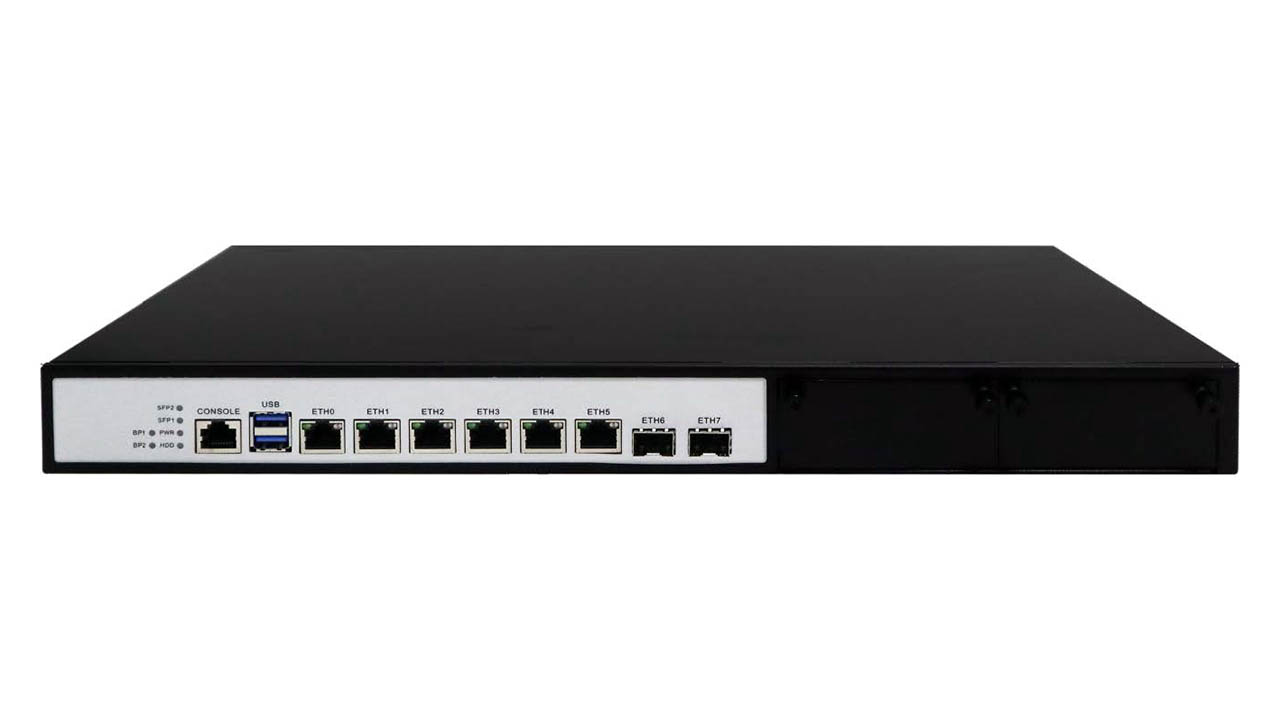

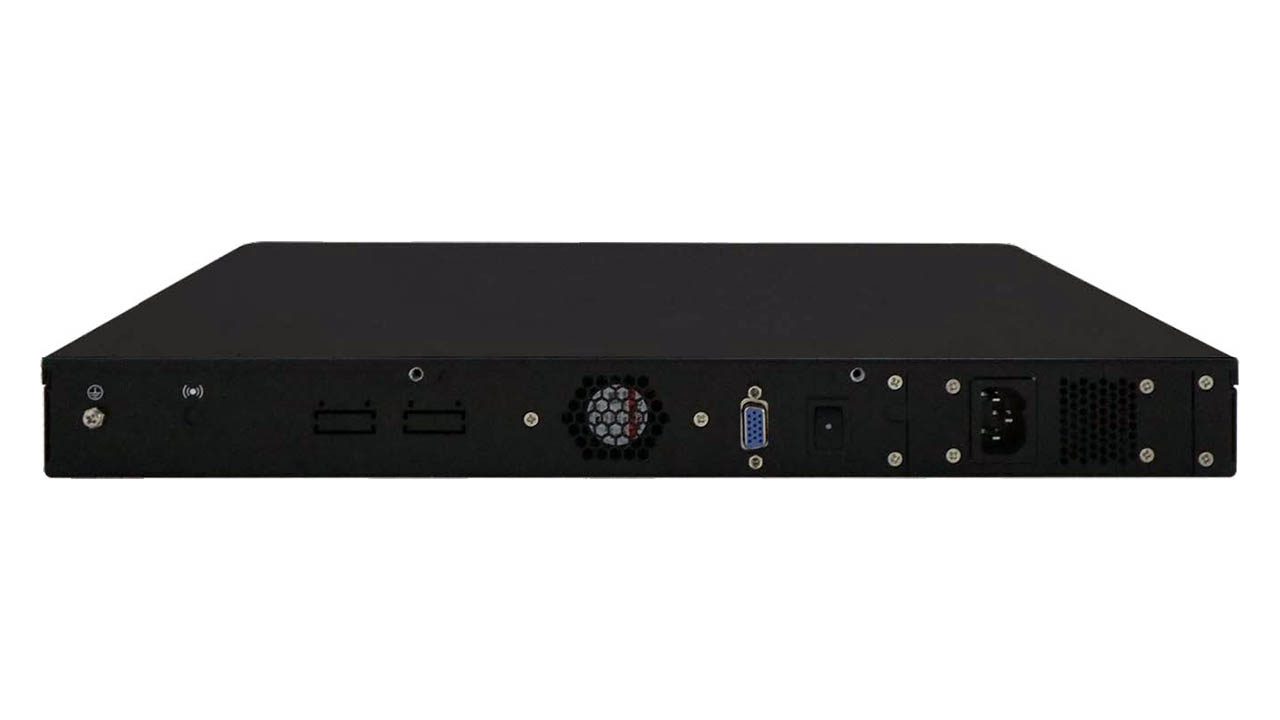

1u Rackmount Network Security Appliance With Intel J6413 CPU

1U rackmount network security Appliance, its motherboard with Intel® J6413 CPU, 6x 2.5G networking ports, 2 NMC slots support NIC modules extension with more RJ45/SFP Gbe, one SATA and one mSATA interface, CF slots, supports single or redundant power supply.

Features

Network security appliance with 2 NMC slots
Onboard Intel Celeron Quad-core J6413 processor, 1.8GHz, 1.5MB L2 cache
One 260-pin 3200MHz so-DIMM slot, up to 32 GB
Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass
Two SFP 1G optical ports
Two NMC slots extension for NIC modules with more RJ45/SFP GbE network ports
One SATA interface and one mSATA interface
Two USB3.0, One CF TypeII
One RJ45 console for RS232 communication

Specifications

Motherboard

CPU Onboard Intel Celeron J6413 processor CPU
System memory One so-DIMM slot, Max 32GB

Storage

Interface One SATA connector and one mSATA interface
Hard Drive One 2.5/3.5" HDD tray
CF slot One CFII slot

Ethernet

LAN Port Six 2.5G RJ45 network interfaces
Ethernet Controller Intel庐 Ethernet Controller I225-V
BYPASS Two channels Gen3.0 BYPASS
Optical ports Two GBE SFP ports
NMC slots Supports 2 NIC modules extension
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)

Power supply

Power consumption Built-in 65W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x45 mm
Weight 6.0 kg

Ordering informations

F64817 Network security appliance, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 2 NMC slots, 65W PSU
F64817-P2 Network security appliance, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 2 NMC slots, 70W redundant PSU

Optional NIC modules

35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
