Rackmount Network security appliance supprts Intel LGA 1200 socket CPU

Country of Origin: China
Customization OEM accepted

Rackmount Network Appliance Built With Intel Xeon E Or Core I3 Or Pentium Or Celeron Processor

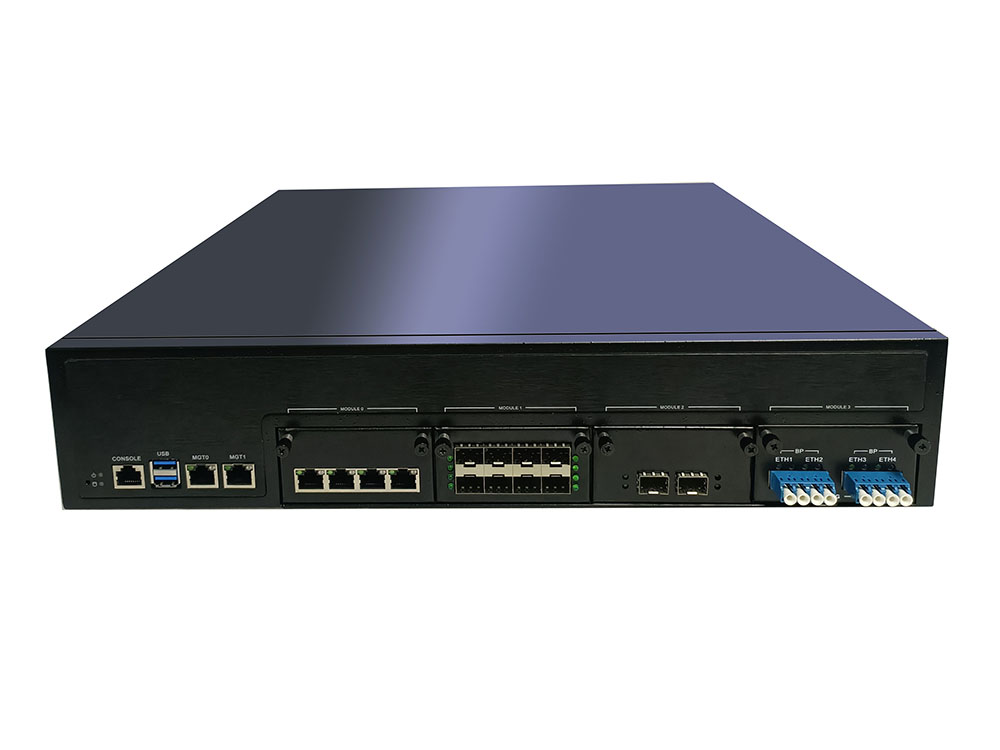

Rackmount Network Appliance Built with Intel Xeon E or Core i3 or Pentium or Celeron Processor [Photo.2]

The F58224 is a rackmount network security appliance that can be customized with Intel® Xeon® E or Core™ i3 or Pentium® or Celeron® and Intel® W580 chipset, comes with high performance and flexibale extensions in LAN ports, NIC expansion, storage and management, delivering exellent networking capacity for network traffic security, cloud computing and data centers.

Features

Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
Intel W580 chipset(Rocket Lake family)
Four 288pin 2933/3200MHz DDR4 slots, up to 128GB
Two Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass
Four extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces
Supports SATA3.0, mSATA, M.2 multiple storages options

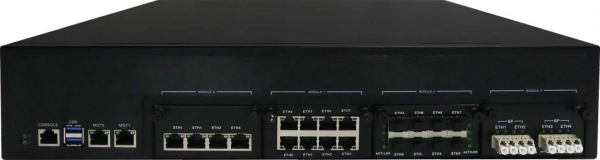

Front USB3.0，Console interface and LED indicators

Specifications

Motherboard

CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
Chipset Intel W580
System memory Four DDR4 slots, up to 128GB

Storage

Interface Two SATA3.0 connectors, one mSATA and one M.2 slot
Hard Drive Supports two 3.5/2.5" HDD tray

Ethernet

LAN Port Two 2.5G RJ-45 ports
Ethernet Chip Intel® Ethernet Controller I225-V
Extension ports Max 32 ports, extending by NMC slots
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED

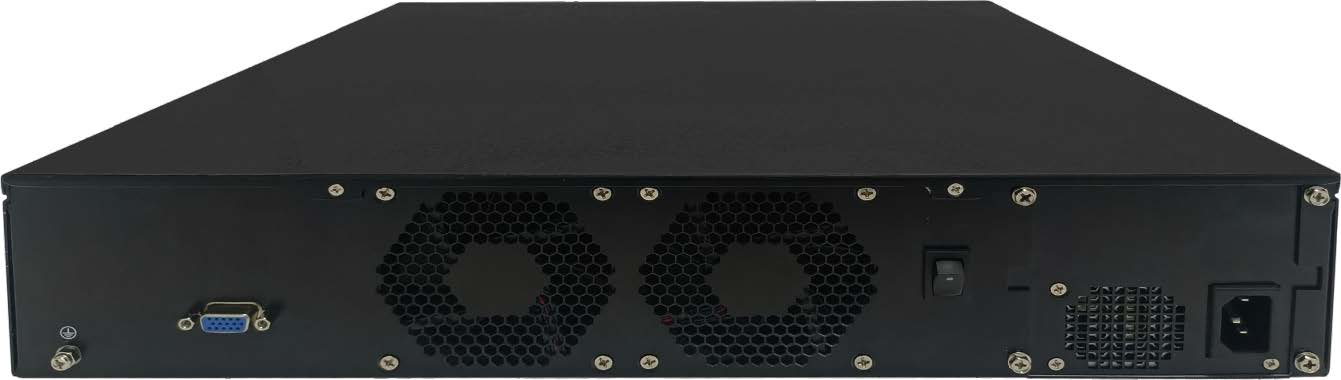

Video Built-in one VGA interface, support hot plug(Internal)
NMC slots Four NMC slots for extension NIC
Expansion PCIEx8 slots

Power supply

Power consumption 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel PVC (OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 500x440x88 mm
Weight 11.9 kg

Ordering informations

F58224 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 250W PSU

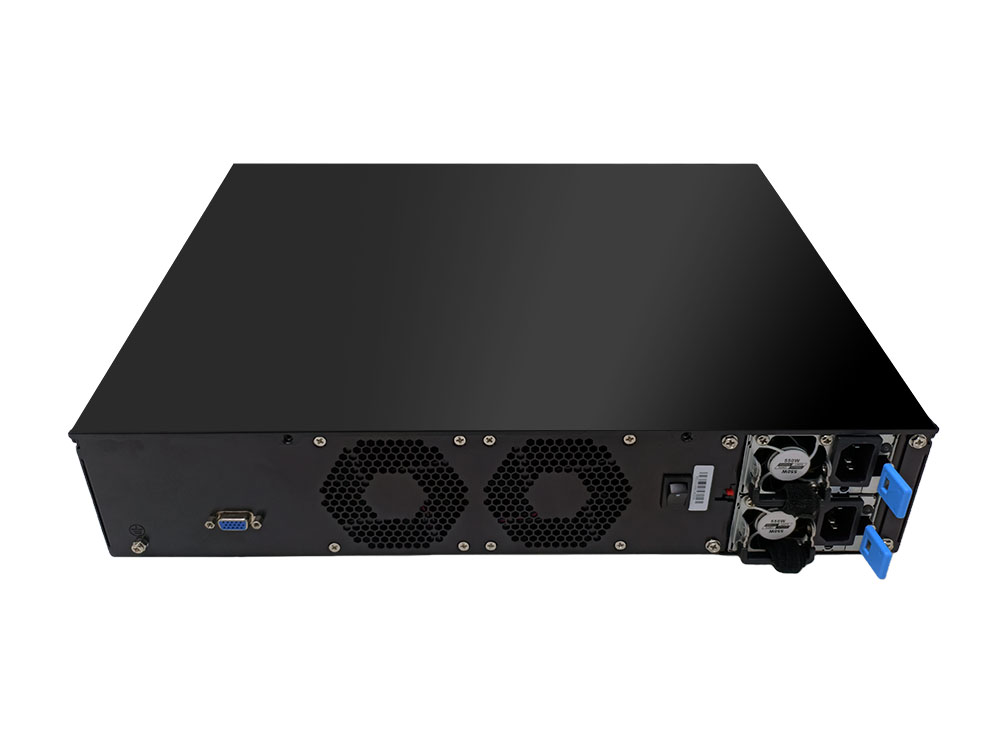

F58224-P2 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 550W redundant PSU

Optional NIC modules

35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
71W4 4 10G SFP based on Intel XL710 controllers
71B4 4 10G SFP based on Intel XL710 controllers, supports two channel optial bypass
