- Rackmount 2U network GAP hardware appliance dual network system
F19628

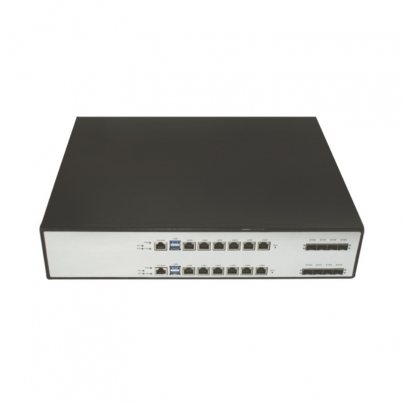

Rackmount 2U network GAP hardware appliance dual network system
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
[1] Images
Network GAP
Rackmount 2U network GAP hardware appliance, dual system
Features
- Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
- One 204-pin DDR3-L DIMM slots, up to 8 GB
- Six Intel PCIe GbE controllers, support two channels bypass
- One SATA interface and one mSATA interface
- Two USB3.0, One CF TypeII
- One RJ45 for RS232 communication
- Optional one NIC module adding 4 GbE network ports
Specifications
Motherboard
- CPU Onboard Intel Bay Trial J1900 Quad-core CPU
- System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage
- Interface One SATA and one mSATA connectors
- Hard Drive One 3.5/2.5" HDD trays
- CF slot One CFII slot
Ethernet
- LAN Port Six 10/100/1000Mbps RJ-45 ports
- Ethernet Controller Six Intel PCIe GbE controllers
- BYPASS 2 channels BYPASS
- Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
- USB Two USB3.0
- COM One RJ-45 COM
- Reset Button One built-in reset button
- Indicator One Power LED, one HDD LED
- Video Built-in one VGA interface, support hot plug(Internal)
Power supply
- Power consumption Built-in 60W power supply
- Power input 100 ~ 240V AC input
- Optional DC power or Redundant power
Environmental
- Mounting Supports rack-mounting or desktop-mounting
- Operate Temperature -10°C ~ 50°C
- Storage Temperature -20°C ~ 75°C
- Operate Humidity 5% ~ 85% non-condensing @ 40°C
- Storage Humidity 5% ~ 95% non-condensing
Mechanical
- Chassis Color Black or OEM
- Front panel Silver PVC(OEM/Neutral)
- Construction 2u chassis, Heavy duty metal
- Dimensions (D x W x H) 430x295x88 mm
- Weight 16.6 kg
Ordering informations
- F19628 2u GAP appliances, dual system, each systerm with one J1900 cpu, six GbE, two channels bypass and one PSU.
Optional NIC modules
- 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
