- 2U network appliance i3 i5 i7 or Xeon CPU 6 Rj45 supports single or redundant power supply
F20621

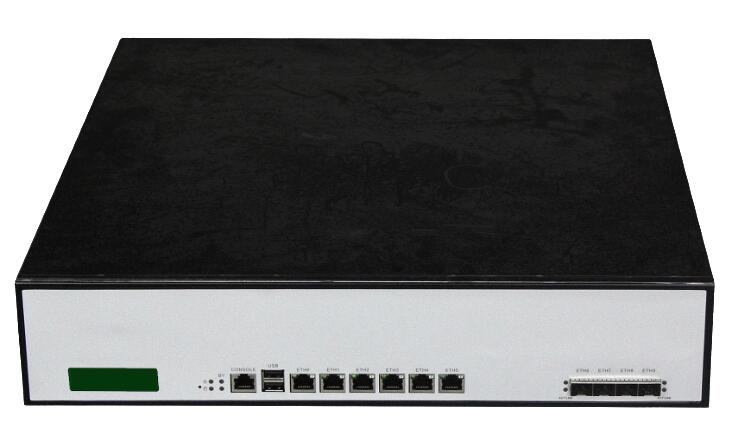

2U network appliance i3 i5 i7 or Xeon CPU 6 Rj45 supports single or redundant power supply
Country of Origin: China
Customization OEM accepted
CPU Optional Datasheet (PDF)
[1] Images
Network Appliance
2U network appliance C206 chipset 6 Rj45 GbE single or redundant power supply
Features
- Supports Intel Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
- Intel C206 chipset
- Four 240-pin 1333/1600MHz DDR3 DIMM slots, up to 32 GB
- Six Intel PCIe GbE controllers, support two channels bypass
- Three SATA2.0 and one SATA3.0 interface,
- One/two HDD trays supports RAID 0, 1, 5, 10
- Supports USB, CF TypeII, COM
Specifications
Motherboard
- CPU Support Intel Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
- Chipset Intel C206
- System memory Four DDR3 slots, up to 32GB
Storage
- Interface Two SATA2.0 and one SATA3.0 connectors
- Hard Drive Supports two 3.5/2.5" HDD trays
- CF slot One CFII slot
Ethernet
- LAN Port Six 10/100/1000Mbps RJ-45 ports
- Ethernet Controller Six Intel PCIe GbE controllers
- BYPASS Two channels BYPASS
- Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
- USB Two USB2.0
- COM One RJ-45 COM
- Indicator One Power LED, one HDD LED
- LCM module Optional 2x16 characters LCM display module
- Video Built-in one VGA interface, support hot plug(Internal)
- Expansion One PCIex16 and one PCIex4
Power supply
- Power consumption Built-in 250W power supply
- Power input 100 ~ 240V AC input
- Optional DC power or Redundant power
Environmental
- Mounting Supports rack-mounting or desktop-mounting
- Operate Temperature -10°C ~ 50°C
- Storage Temperature -20°C ~ 75°C
- Operate Humidity 5% ~ 85% non-condensing @ 40°C
- Storage Humidity 5% ~ 95% non-condensing
Mechanical
- Chassis Color Black or OEM
- Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
- Construction 2u chassis, Heavy duty metal
- Dimensions (D x W x H) 500x440x88mm
- Weight 16.7 kg
Ordering informations
- F20621 2u rackmount chassis, C206 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
- F20621-P2 2u rackmount chassis, C206 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU
Optional Nic Modules
- 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F4 4 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
- 58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F8 8 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
- 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
- 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
- 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
