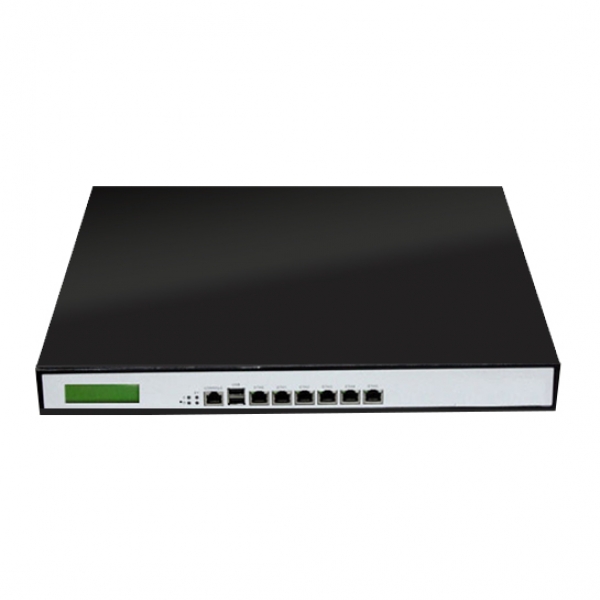

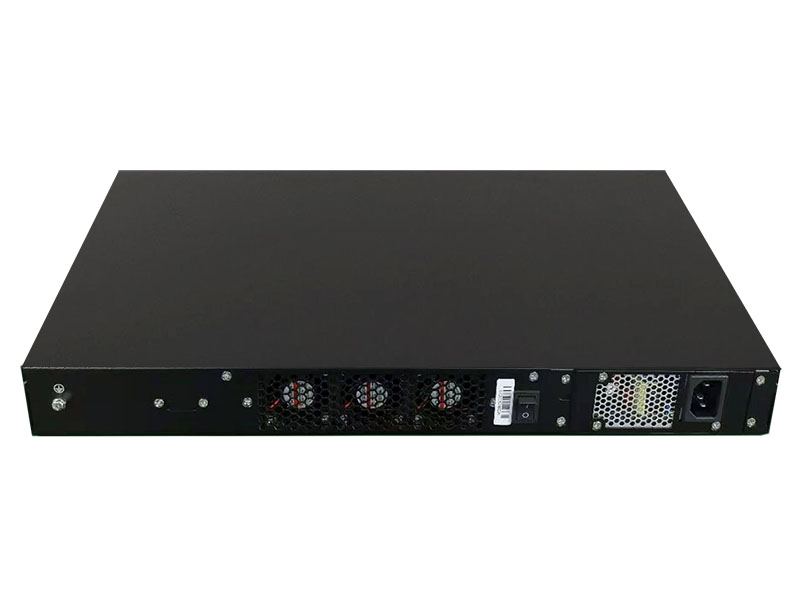

- 1U network appliance 6 GbE max 14GbE with 2 lan bypass
Network Appliance With Bypass
Network Application Model With Mainboard

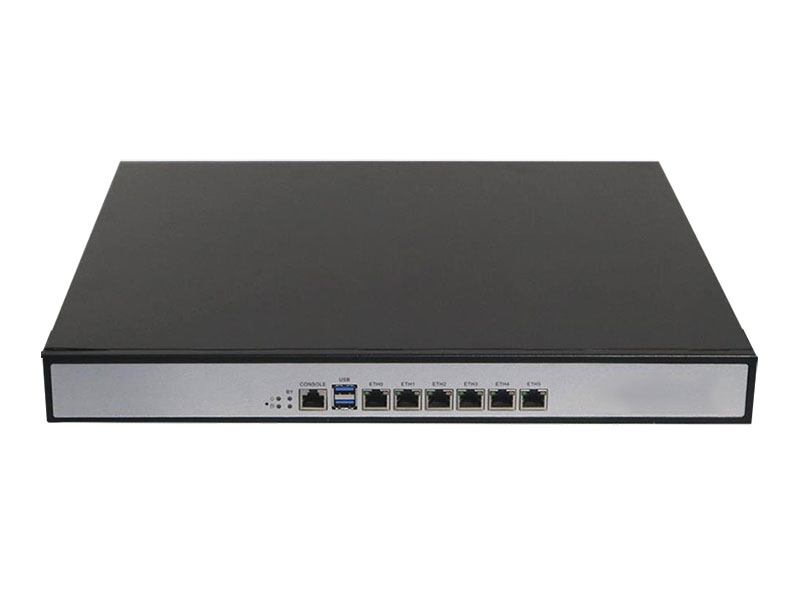

1u Network Appliance
1u Nework Hardware Appliance
Features
- Supports Intel Gen6/Gen7 Xeon E3-1200, i3/i5/i7 Core, Pentium processor
- Intel C236 chipset
- Two 2133/2400MHz DDR4 slots, up to 64GB
- Six Intel PCIe GbE controllers, support two channels bypass
- Three SATA3.0 6Gb/s interface
- Supports USB3.0, mSATA, COM
Specifications
Motherboard
- CPU Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
- Chipset Intel C236
- System memory Two 2133/2400MHz DDR4 slots, up to 64 GB
Storage
- Interface Two SATA3.0 connectors and one mSATA slot
- Hard Drive Supports two 3.5/2.5" HDD trays
Ethernet
- LAN Port Six 10/100/1000Mbps RJ-45 ports
- Ethernet Controller Six Intel PCIe GbE controllers
- BYPASS Optional 2 channels BYPASS
- Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
- USB Two USB3.0
- COM One RJ-45 COM
- Indicator One Power LED, one HDD LED
- LCM module Optional 2x16 characters LCM display module
- Video Built-in one VGA interface, support hot plug(Internal)
- Expansion One PCIex16
Power supply
- Power consumption Built-in 250W power supply
- Power input 100 ~ 240V AC input
- Optional DC power or Redundant power
Environmental
- Mounting Supports rack-mounting or desktop-mounting
- Operate Temperature -10°C ~ 50°C
- Storage Temperature -20°C ~ 75°C
- Operate Humidity 5% ~ 85% non-condensing @ 40°C
- Storage Humidity 5% ~ 95% non-condensing
Mechanical
- Chassis Color Black or OEM
- Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
- Construction 1u chassis, Heavy duty metal

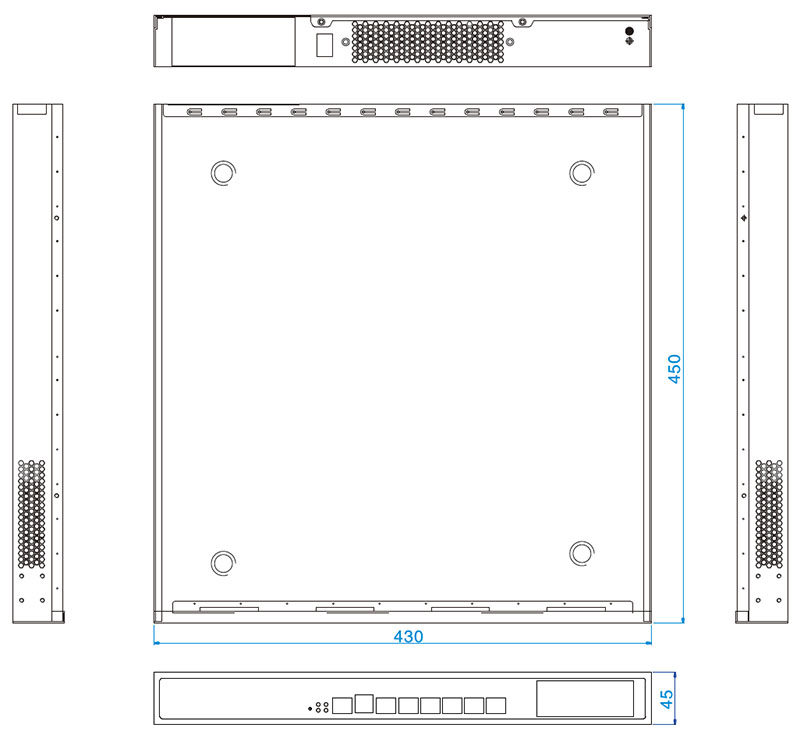

- Dimensions (D x W x H) 450x430x44.5mm
- Weight 12.8 kg
Ordering informations
- F23611-B2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
- F23611-B2P2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU
Optional NIC modules
- 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
- 58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
- 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
- 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
- 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
- 71W4 4 10G SFP based on Intel XL710 controllers
