  3. Network security appliance with 16 GbE lan ports and Xeon E3 or i3 i5 i7 processors

F23224-4XN4

F23224-4XN4

Network security appliance with 16 GbE lan ports and Xeon E3 or i3 i5 i7 processors

Customization OEM accepted

CPU Optional Datasheet (PDF) [4] Images

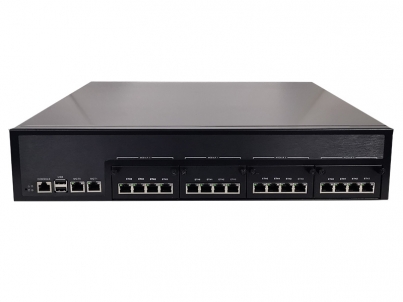

Network Secuirty Appliance
Network Secuirty Appliance

Network Security Platform
Network Security Platform

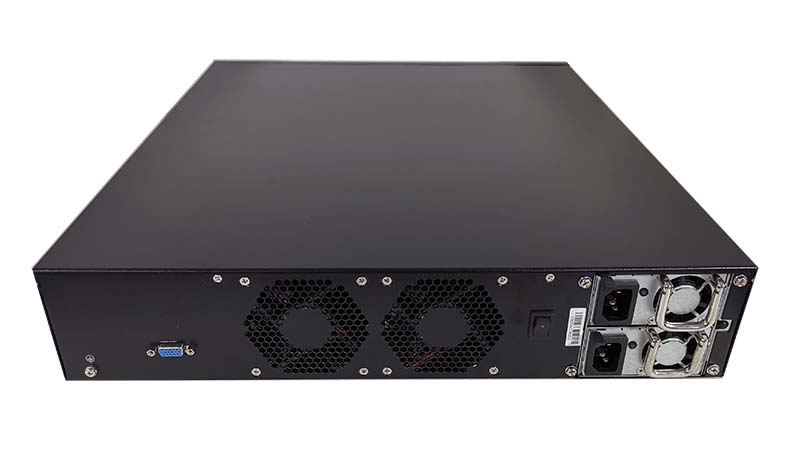

Network Security Platform With Redundant Power Supply
Network Security Platform With Redundant Power Supply

network secuirty appliance [Photo.4]
network secuirty appliance [Photo.4]

Network security appliance Supports Gen6/Gen7 Xeon E3 or i3/i5/i7  and four lan cards 16 GbE

Features
  • 2u network security appliance hardware platform
  • Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
  • Intel C236 chipset
  • 16 Intel RJ45 GbE network ports
  • Four dual channels 2133/2400MHz DDR4 slots, up to 64 GB
  • Two GbE Console ports, support four NIC modules up to 32 GBEs
  • Four SATA3.0 6Gb/s, support RAID 0, 1, 5, 10
  • Supports USB3.0, mSATA, COM
Specifications
Motherboard
  • CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
  • Chipset Intel C236
  • BIOS UEFI BIOS
  • System memory Four dual-channels DDR4 ram slots, up to 64GB
Storage
  • Interface Four SATA3.0 connectors  support RAID 0, 1, 5, 10
  • Hard Drive Four 3.5/2.5" HDD trays
  • SSD One mSATA slot
Ethernet
  • LAN Port Two 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Two  Intel PCIe controllers
System I/O
  • USB Two USB3.0
         Internal with four USB2.0 and two USB3.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • LCM module Optional 2x16 characters LCM display module
  • Video Built-in one VGA interface, support hot plug(Internal)
  • Watchdog Timer Software programmable supports 1~255sec System reset
  • Expansion Four PCIex8 for 4 expansion lan cards and one built-in PCIEx4
Power supply
  • Power consumption Built-in 300W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
  • Construction 2u chassis, Heavy duty metal
  • Dimensions (D x W x H) 550x440x88mm
  • Weight 18.3 kg
Ordering informations
  • F23224 2u rackmount chassis, C236 Chipset, 2 GbE ports, 4 nic slots, 300W PSU
  • F23224-P2 2u rackmount chassis, C236 Chipset, 2 GbE ports,  4 nic slots, 350W  redundant PSU
