  3. Network security appliance based H61 chipset 6 Rj45 and 4 SFP GbEi3 i5 i7 pentium Celeron processors

F61611-B2

F61611-B2

Network security appliance based H61 chipset 6 Rj45 and 4 SFP GbEi3 i5 i7 pentium Celeron processors

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Network Security Appliance
Network Security Appliance

Network Appliance Based H61 Chipset
Network Appliance Based H61 Chipset

Firewall Appliance Network Security Appliance With 6 Rj45 And 4 SFP GbE
Firewall Appliance Network Security Appliance With 6 Rj45 And 4 SFP GbE

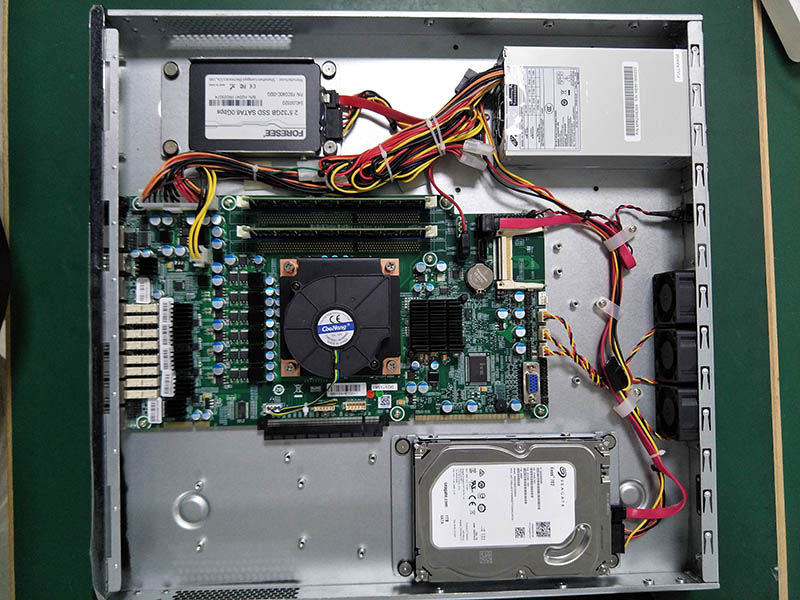

Network security appliance [Photo.4]
Network security appliance [Photo.4]

Rackmount network security appliance 6 rj45 GbE 2 groups bypass 4/8/16GB RAM, 126 or 256GB SSD/500G or 1T HDD or SSD, 8G/16G/32G CF.  single or redundant power supply. for utm firewall harddware appliance.

Support LGA1155 socket processors:

    • CPU:Intel Core i5 650(2.20G)C

    • CPU:Intel Core i5 760(2.8G) 4C

    • CPU:Intel Core i5 660 (3.33G) 2C

    • CPU:Intel Core i5 680 (3.60G) 2C

    • CPU:Intel Core i5-2300(2.8G)

    • CPU:Intel Core i5-2400(3.1G),4C/4T

    • CPU:Intel Core i5-3570(3.40G)

    • CPU:Intel Core i5-2500(3.70G)

    • CPU:Intel Core i5-3470(3.20G) 4C

    • CPU:Intel Core I5 2320(3.0G) 4C

    • CPU: Intel Core i3 530(2.93G) 2C

    • CPU: Intel Core i3 540(3.06G) 2C

    • CPU: Intel Core i3 550(3.2G) 2C

    • CPU:Intel Core i3-2100(3.1G),2C/4T

    • CPU:Intel Core i3-2120(3.3G),2C/4T

    • CPU:I3-2340UE,1.3GHZ,FCBGA1023,Intel

    • CPU:Intel Core i3-3220(3.3G),2C/4T

    • CPU:Intel Core i3-3240(3.4G),2C/4T

    • CPU:Intel Core i7-870(2.93G)

    • CPU:Intel Cor i7-860 Processor(8M Cache,2.80GHz),4C/8T

    • CPU:Intel Core i7-2600(3.4G),4C/8T

    • CPU:Intel Core i7-3770(3.4G),4C/8T


    • CPU:Intel Pentium G850(2.9G)2C/2T

    • CPU:Intel Pentium G2120 (3.1G),2C / 2T


    • CPU:Intel Celeron 827E,1.4GHz,FCBGA1023,Intel,1C/1T

    • CPU:Intel Celeron G1620 (2.70GHz), 2C / 2T

    • CPU:Intel Celeron G530(2.4G)2C/2T

    • CPU:Intel Celeron G540(2.5G)2C/2T

1u network security appliance model: F61611-B2

2u network security appliance model: F61621-B2

Optional NIC modules

58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers

58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers

58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers

58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass

59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers

59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
