Fanless network appliance max 10 GbE

Model NO. F19613

Customization OEM accepted

Datasheet (PDF) [4] Images

Fanless Network Appliance
Fanless Network Appliance

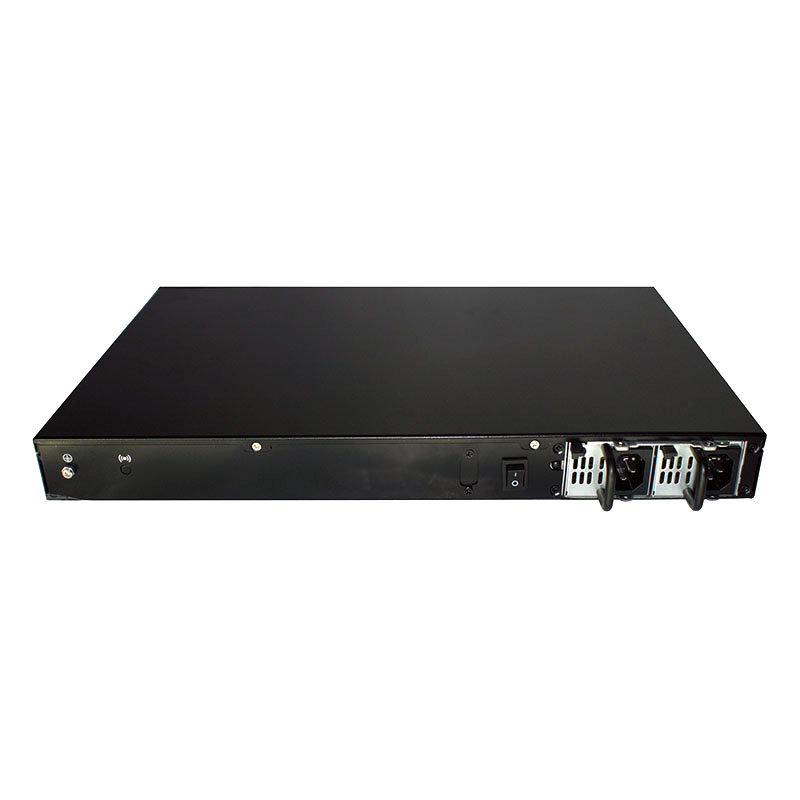

Fanless Network Appliance 1u With Redundant Power Supply
Fanless Network Appliance 1u With Redundant Power Supply

Fanless Network Appliance 1u With Redundant Power Supply
Fanless Network Appliance 1u With Redundant Power Supply

Fanless Network Appliance 1u With Redundant Power Supply
Fanless Network Appliance 1u With Redundant Power Supply

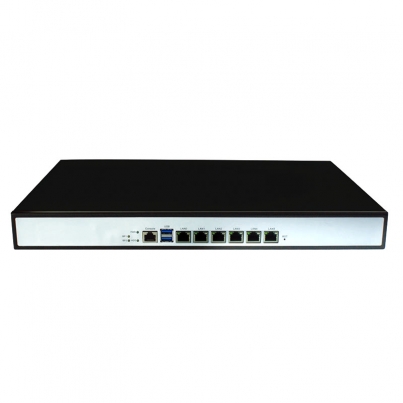

Fanless network Appliance,onboard J1900 CPU, 6 or 10 RJ-45 GbE network ports, one SATA and one mSATA interface, single or redundant power supply

Features
  • Fanless design network appliance
  • Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
  • One 204-pin DDR3-L DIMM slots, up to 8 GB
  • Six Intel PCIe GbE controllers, support two channels bypass
  • One SATA  interface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 for RS232 communication
  • Optional one NIC module adding 4 GbE network ports
Specifications
Motherboard
  • CPU Onboard Intel Bay Trial J1900 Quad-core CPU
  • System memory One 204-pin DDR3-L DIMM slots, up to 8GB
Storage
  • Interface One SATA and one mSATA connectors
  • Hard Drive One  3.5/2.5" HDD trays
  • CF slot One CFII slot
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel PCIe GbE controllers
  • BYPASS 2 channels BYPASS
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Reset Button One built-in reset button
  • Indicator One Power LED, one HDD LED
  • Video Built-in one VGA interface, support hot plug(Internal)
Power supply
  • Power consumption Built-in 60W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 430x295x44.5mm
  • Weight 9.6 kg
Ordering informations
  • F19613-B2 Fanless network appliance, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 60W PSU
  • F19613-B2P2 Fanless network appliance, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 70W redundant PSU
Optional NIC modules
  • 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
