Desktop Firewall Hardware

Small Firewall Hardware

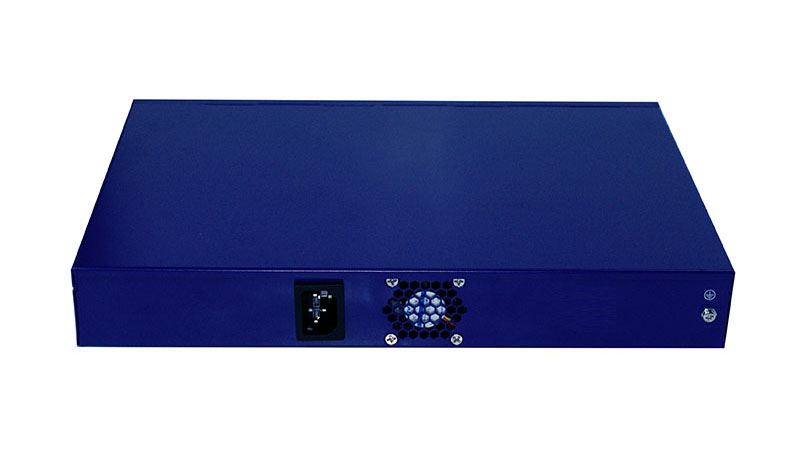

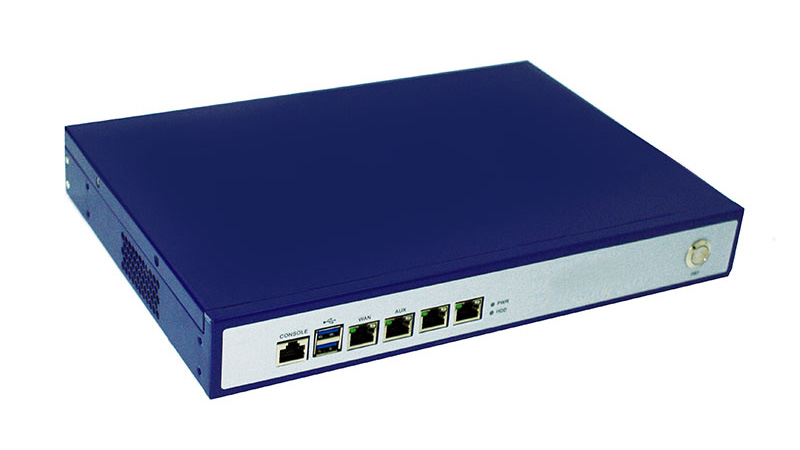

F19401 is a Desktop Appliance enables easy deployment where rack space is limited. With J1900 CPU, 4Gbe networking ports, Ram/SSD/HDD/VGA, for network and communication applications.

Specifications

Motherboard

CPU Onboard Intel Bay Trial J1900 Quad-core CPU
System memory One 204-pin DDR3-L DIMM slots, up to 8GB

Storage

Interface One SATA and one mSATA connectors
Hard Drive One 2.5" HDD tray

Ethernet

LAN Port Four 10/100/1000Mbps RJ-45 ports
Ethernet Controller Four Intel PCIe GbE controllers
BYPASS Optional one channels BYPASS
Wireless module Optional one expansion wifi or 3G/4G module(built-in a SIM slot)
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)

Power supply

Power consumption Built-in 60W power supply
Power input 100 ~ 240V AC input

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Blue or OEM
Front panel Silver PVC (OEM/Neutral)
Construction Desktop chassis, Heavy duty metal
Dimensions (D x W x H) 300x210x44.5mm
Weight 5.8 kg

Ordering informations

F19401 Destop network appliance, J1900 CPU, 4 x GbE RJ45, 60W PSU
