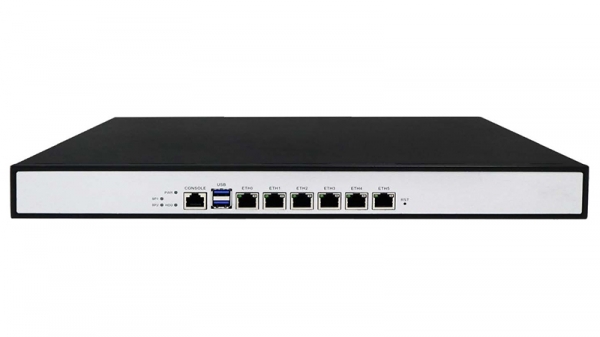

1u rackmount network cyber security appliance Intel J6412 CPU 6 or 4 LAN

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Cyber Security Appliance

Network Security Appliance 6 Or 4 LAN

1U rackmount network cyber security appliance, its motherboard with low power Intel J6412 CPU, 4/ 6x 2.5G RJ45 networking ports, 2x LAN BYPASS, one SATA and one mSATA interface, single or redundant power supply.

Features

Network cyber security appliance, 4/6 LAN
Onboard Intel Celeron Quad-core J6412 processor, 2.0GHz / 1.5MB L2 cache
One 260-pin 3200MHz so-DIMM slot, up to 32 GB
Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass
One SATA interface and one mSATA interface
Two USB3.0, One CF TypeII
One RJ45 console for RS232 communication

Specifications

Motherboard

CPU Onboard Intel Celeron J6412 CPU
System memory One so-DIMM slot, Max 32GB

Storage

Interface One SATA connector and one mSATA interface
Hard Drive One 2.5/3.5" HDD tray
CF slot One CFII slot

Ethernet

LAN Port Six 2.5G RJ45 network interfaces
Ethernet Controller Intel庐 Ethernet Controller I225-V
BYPASS Two channels Gen3.0 BYPASS
Optical ports None
NMC slots None
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)

Power supply

Power consumption Built-in 65W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 295x430x44.5 mm
Weight 6.0 kg

Ordering informations

F64612 Network cyber security appliance, 1u rackmount chassis, motherboard with Intel J6412 CPU, 6x 2.5G RJ45 LAN, 2 channels bypass, 65W PSU
F64612-P2 Network cyber security appliance, 1u rackmount chassis, motherboard with Intel J6412 CPU, 6x 2.5G RJ45 LAN, 2 channels bypass, 70W redundant PSU
F64612-4L Network cyber security appliance, 1u rackmount chassis, motherboard with Intel J6412 CPU, 4x 2.5G RJ45 LAN, 65W PSU
