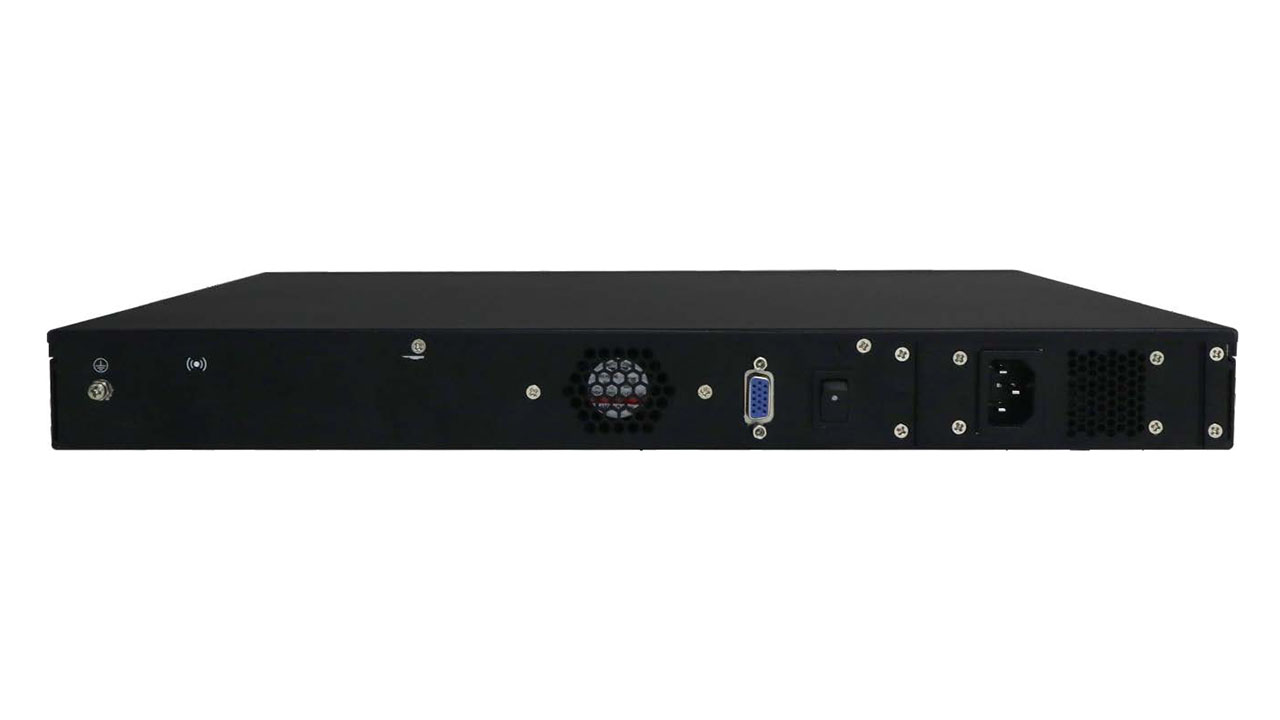

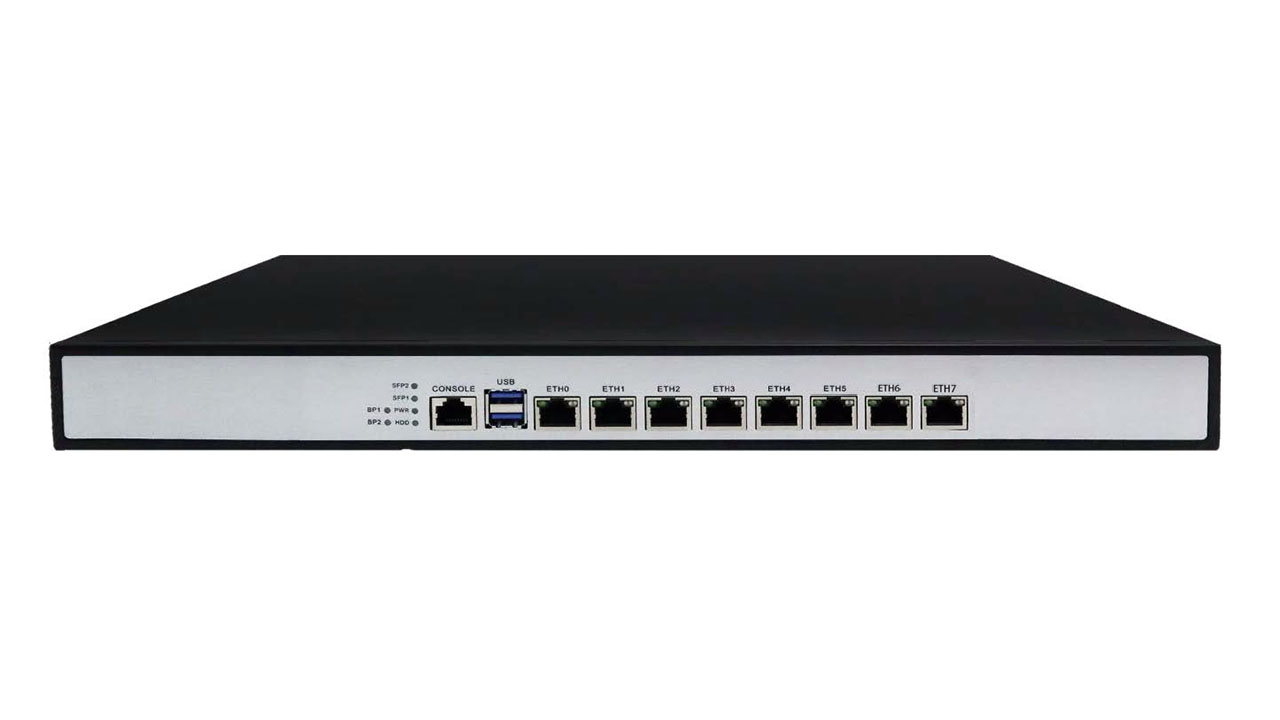

1u firewall hardware network appliance 8 LAN ports J6413 processor

1u firewall hardware network appliance 8 LAN ports J6413 processor

Model NO. F64811-8L

Customization OEM accepted

Datasheet (PDF) [2] Images

Firewall Hardware

Network Firewall With 8 LAN

Features

Firewall hardware appliance 1u rackmoutable
Onboard Intel Celeron Quad-core J6413 processor, 1.8GHz, 1.5MB L2 cache
One 260-pin 3200MHz so-DIMM slot, up to 32 GB
Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass
Two RJ45 1G network ports
One SATA interface and one mSATA interface
Two USB3.0, One CF TypeII
One RJ45 console for RS232 communication

Specifications

Motherboard

CPU Onboard Intel Celeron J6413 processor CPU
System memory One so-DIMM slot, Max 32GB

Storage

Interface One SATA connector and one mSATA interface
Hard Drive One 2.5/3.5" HDD tray
CF slot One CFII slot

Ethernet

LAN Port 2.5G Six 2.5G RJ45 network ports
Ethernet Controller Intel® Ethernet Controller I225-V
BYPASS Two channels Gen3.0 BYPASS
LAN ports 1G Two 1G RJ45 network ports
NMC slots None
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Reset Button One built-in reset button
Indicator One Power LED, one HDD LED
Video Built-in one VGA interface, support hot plug(Internal)

Power supply

Power consumption Built-in 65W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 295x430x44.5 mm
Weight 6.0 kg

Ordering informations

F64811 Firewall hareware appliance, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 65W PSU
F64811-L Firewall hardwere appliance, 1u rackmount chassis, motherboard with Intel J6413 CPU, 6x 2.5G RJ45, 2x 1G RJ45, 2 channels bypass, 65W PSU
