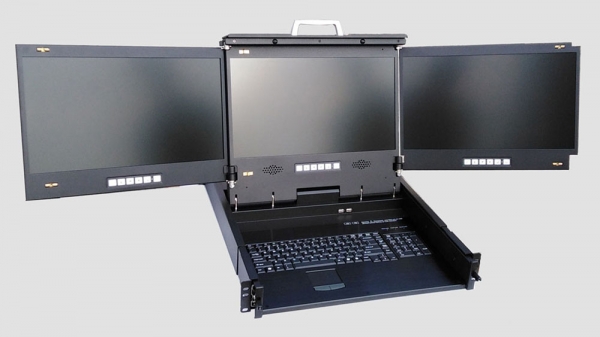

- Triple 17.3 inch wide screen LCD Display Console Drawer
RCIM-173WX3
Triple 17.3 inch wide screen LCD Display Console Drawer
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
[5] Images
17.3 Inch Multi LCD Console Drawer
17.3 Inch Triple Screen LCD Console Drawer
17.3 Inch Triple LCD Display
Multi LCD Drawer
Rack Mount Monitor With Keyboard
Features
- 17.3" Triple/dual LCD Display Console Drawer, Rack mount display, 1.5u Height
- 1920 x 1080 Ultra high resolution
- Triple/dual HDMI & VGA Port
- Front 2xUSB, Rear 1xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 96-key keyboard with touch pad mouse
- USB 2.0 Keyboard & Mouse
- Build in 2x 2 watts speakers
- Self-locking and auto release rails
Specifications
LCD Panel
- Display Type 17.3" Wide Screen LCD
- Resolution 1920 x 1080
- Max.color 16.7M
- Luminance 500 cd/m2
- View Angle 170°(H) , 170°(V)
- Contrast Ratio 1000:1
- Response Time 8 ms
- Backlight Life 50,000hrs
System
- Connectors 3 x HDMI, 3x VGA, 1 x 3.5mm Audio jack, 1 x USB for KB & Mouse
- USB HUB Front x2 & Rear x 1 USB 2.0 for USB Peripheral Device
- Rack Depth 600mm to 900mm rack cabinet front rails to rear rails
- Power Supply 100-240V AC 50/60Hz via IEC Type power cord
- DC Power (Optional) 9~36V DC input
Mechanical and Environmental
- Construction Heavy duty steel alloy chassis
- Operate temperature -10°C~ 60°C (-14~140°F)
- Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
- Storage humidity 5% ~ 95% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
- Dimensions (WxHxD) 450 x 67 x 535mm
- Weight Net: 17.9 kg , Gross:23 kg
Ordering informations

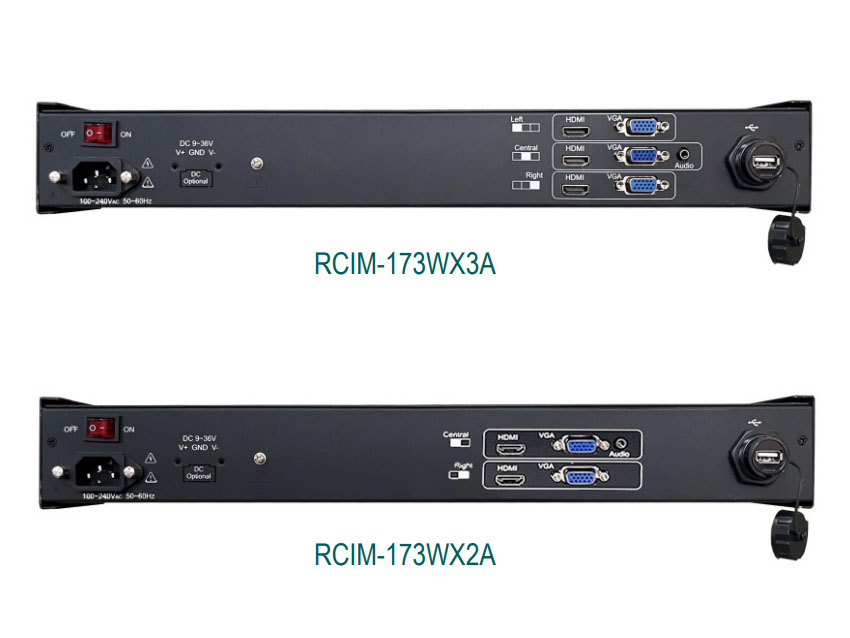

- RCIM-173WX3A Rack mount display, 1.5U, LCD console Drawer, Triple 17.3" LCD displays, 1x Keyboard & touchpad, 100-240V AC IEC Type
power cord
- RCIM-173WX3D Rack mount display, 1.5U, LCD console Drawer, Triple 17.3" LCD displays, 1x Keyboard & touchpad, 9~36V DC input

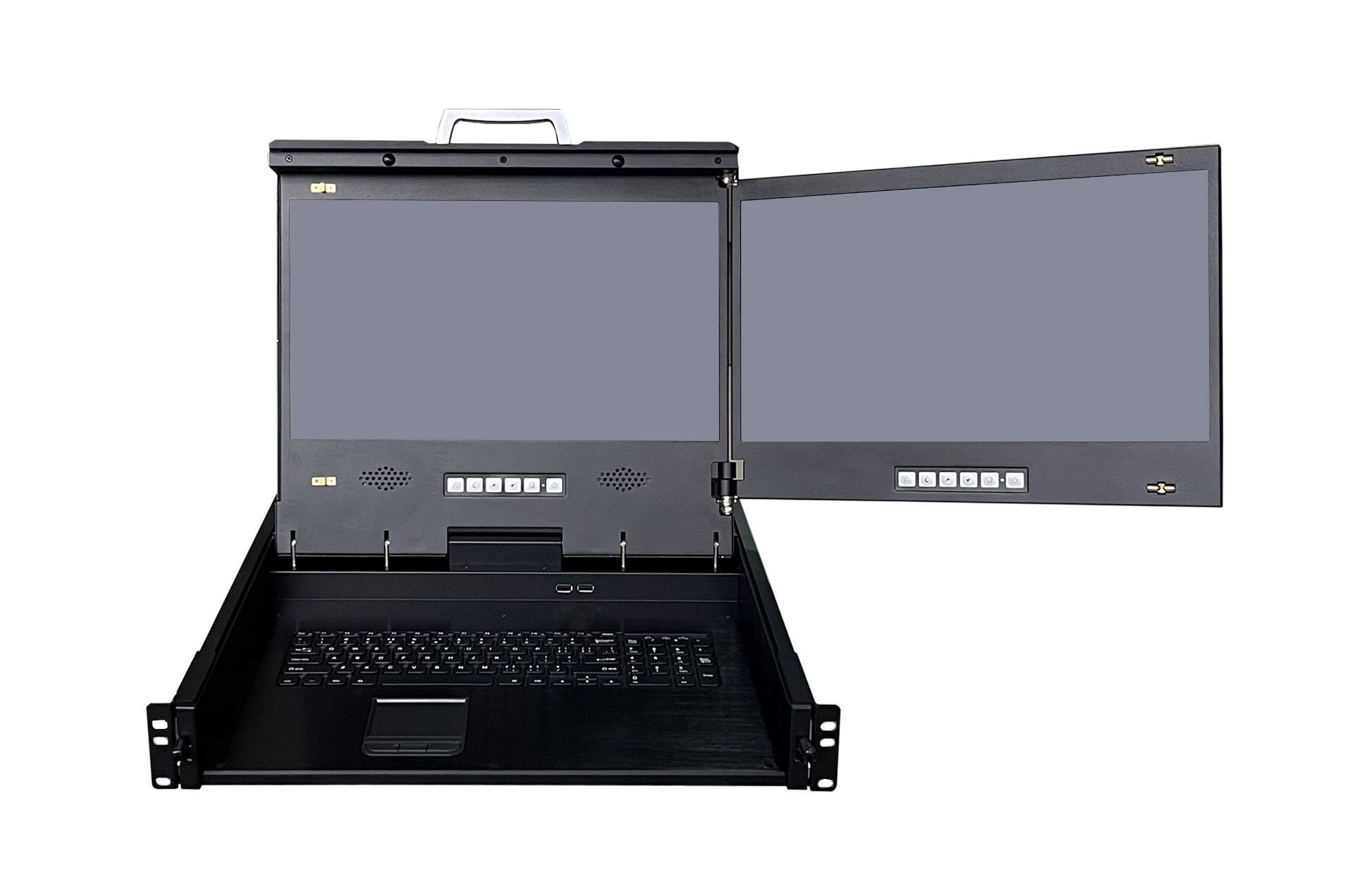

- RCIM-173WX2A Rack mount display, 1.5U, LCD console Drawer, Dual 17.3" LCD displays, 1x Keyboard & touchpad, 100-240V AC IEC Type power
cord
- RCIM-173WX2D Rack mount display, 1.5U, LCD console Drawer, Dual 17.3" LCD displays, 1x Keyboard & touchpad, 9~36V DC input
