RCIM-2x8

RCIM-2x8

Rack mount dual 8 inches lcd monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

8 Inch Dual Lcd Monitor
8 Inch Dual Lcd Monitor

8 Inch Dual Lcd Display
8 Inch Dual Lcd Display

Rackmount Monitor 4u
Rackmount Monitor 4u

Dual Display Lcd Monitor
Dual Display Lcd Monitor

Features

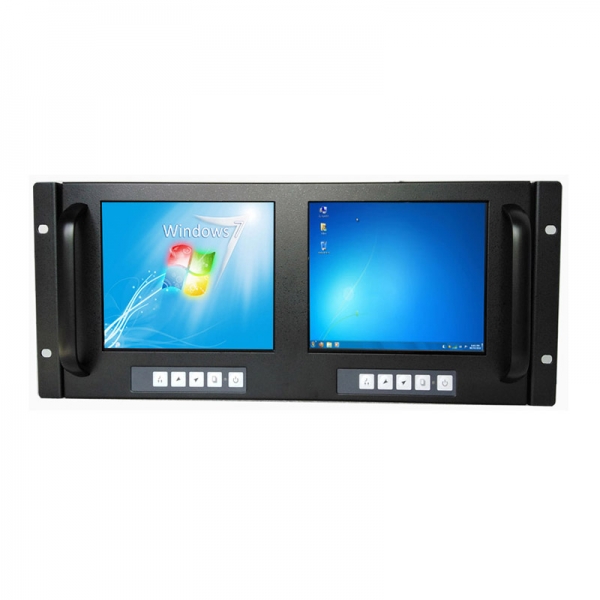

  • Dual 8" XGA TFT LCD screen monitor, 1024x768, 4U Height
  • Construction:19" rackmount Heavy duty steel chassis

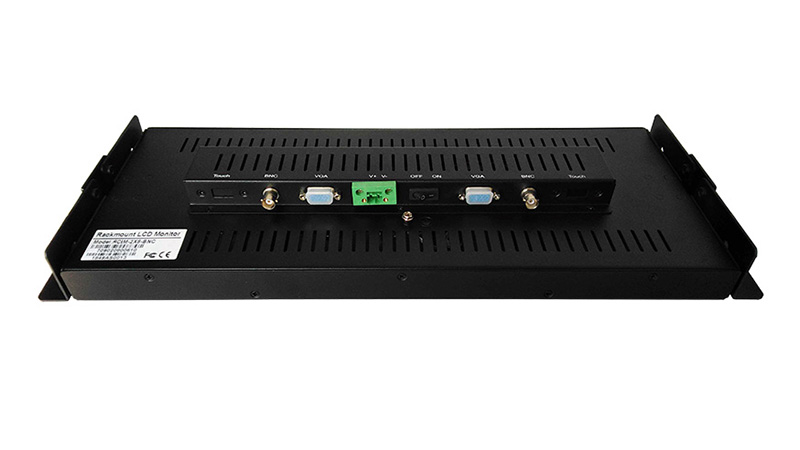

  • Input signal: VGA , BNC
  • HDMI, AV, SVedio optional
  • Power Supply: External 60W DC 12V power adapter
  • DC 8 ~ 30v input power module optional

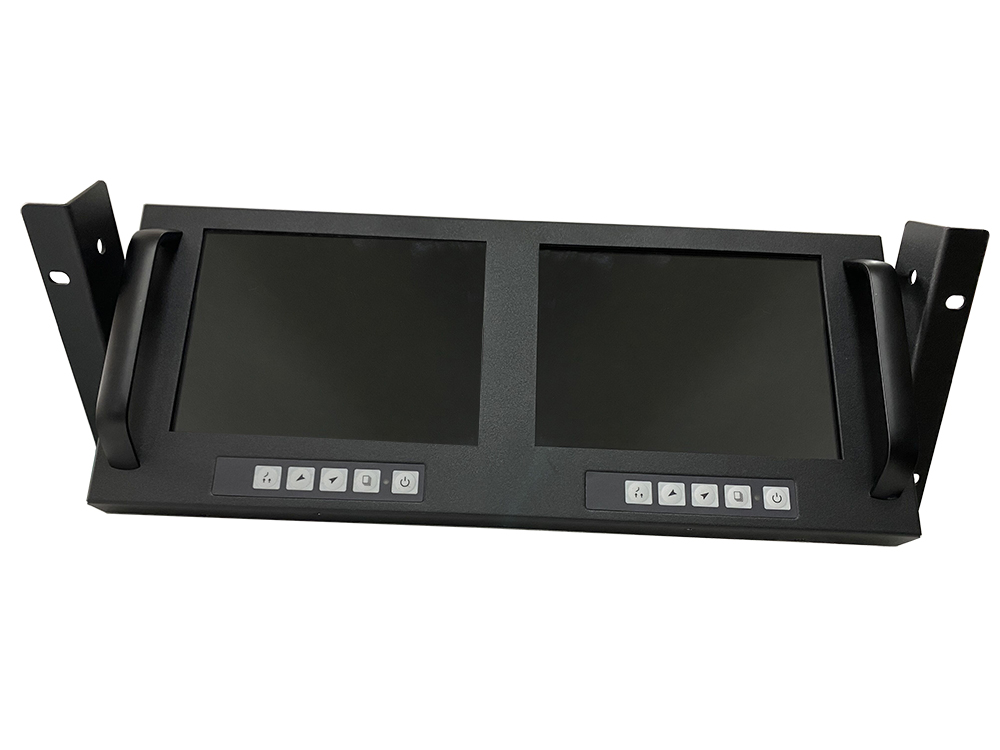

  • 90° tilt adjustment while mounted in rack:+45° ~-45° ( V )
  • OSD Control: Power Switch, Menu, Select (+,-), Enter
  • Touch screen or Strengthen glass
Specifications
Display
  • Display Type 8" XGA TFT LCD
  • Resolution 1024x768
  • Max.color 16.2M
  • Luminance 300 cd/m2
  • View Angle 170°(H) , 170°(V)
  • Pixel Pitch 0.15825 x 0.15825 mm
  • Contrast Ratio 700 : 1
  • Response Time 25 ms
  • LED Life Time 30,000hrs
Available Options
  • Touch screen Resistive Type with USB and RS232 controller
  • DC Power Input Wide Range 8~30v DC input
Power supply
  • Standard 100~240VAC,50/60Hz,
  •  DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel rackmountable chassis
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% ~ 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Certification and Approvals CE/FCC/ROHS
Packing info
  • Dimensions (WxHxD) 482.6 x 117 x 50 mm
  • Weight Net: 6.2kg , Gross: 9.2 kg
Ordering informations
  • RCIM-2x8 Rack Mount Dual 8" LCD Monitor with VGA + BNC input, strengthen glass
  • RCIM-2x8TC Rack Mount Dual 8" LCD Monitor with VGA + BNC input, with touch screen and RS232 controller

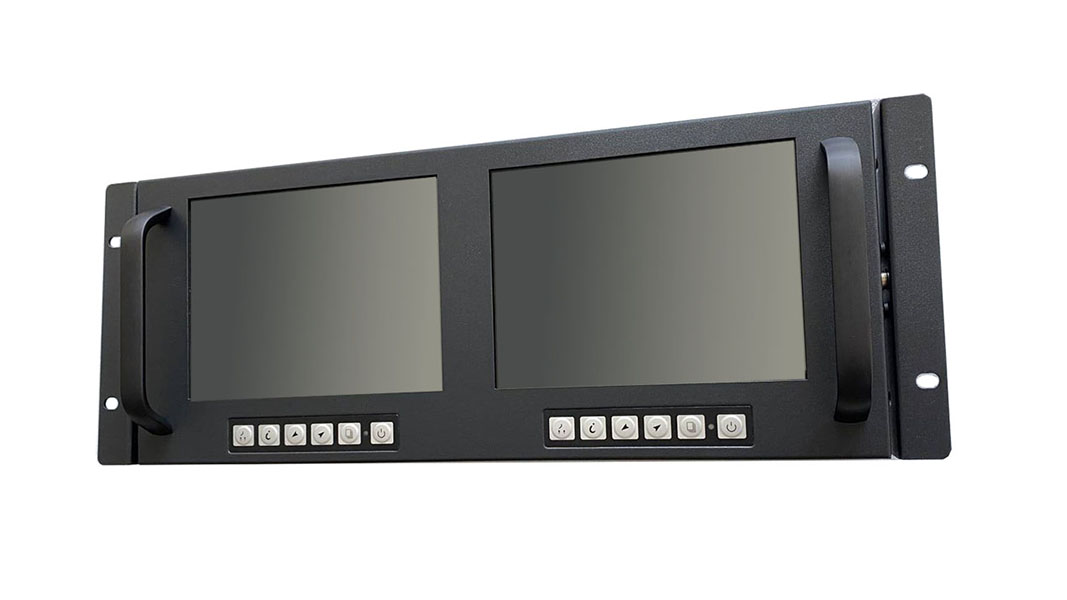

  • RCIM-2x8TU Rack Mount Dual 8" LCD Monitor with VGA + BNC input, with touch screen and USB controller
Optional
  • Input signal
     HDMI, AV, S-vedio
  • DC-DC Power DC 8 ~ 30v input power module
