Industrial monitors
Rackmount LCD display

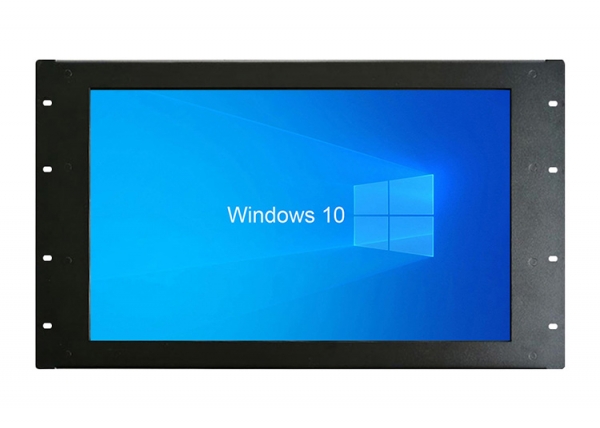

Rack mount lcd monitor display with 17.3 inch wide lcd screen FHD 1920 x 1080

RCIM-173W

Rack mount lcd monitor display with 17.3 inch wide lcd screen FHD 1920 x 1080

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Wide Screen LCD Display

Wide Screen LCD Monitor

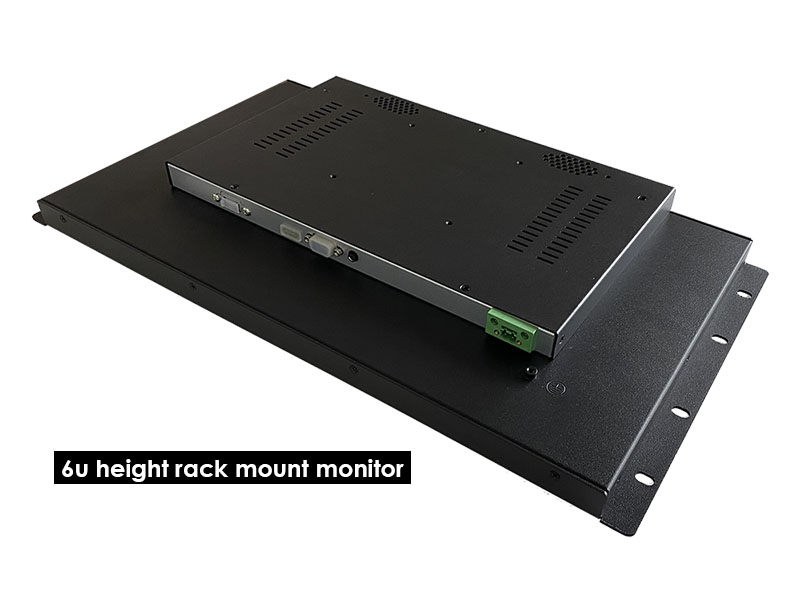

6u Rackmount Lcd Monitor

6u Rack Mount Monitor

Features

17.3" wide screen rackmount LCD display Display, 6u Height
1920 x 1080 Ultra high resolution
DVI,HDMI & VGA Port
Support FHD with 1080p resolution.
300 cd/m2 brightness
Build in 2x 2 watts speakers
OSD control keys to optimize the display
DC 12V inut or 9 ~ 36 V DC power input
2 x stereo speakers for industrial automation system voice output

Specifications

LCD Panel

Display Type 17.3" Wide Screen LCD
Resolution 1920 x 1080
Max.color 262K
Luminance 300 cd/m2
View Angle 140°(H) , 120°(V)
Contrast Ratio 600:1
Response Time 8 ms
Backlight Life 50,000hrs

System

Touch screen(optional) Resistive touch screen(RS232/USB)
Input Signals VGA, HDMI/DVI, Audio
Power Supply 100~240V AC,50/60Hz, DC 12V external ac adapter
DC Power (Optional) DC 9~ 36v input power module

Mechanical and Environmental

Construction Steel alloy rackmount chassis
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% ~ 95% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Dimensions (WxHxD) 402x 252 x 45 mm
Weight Net: 7.0kg , Gross:8.5 kg

Ordering informations

RCIM-173W 6u rack mount LCD display with 17.3" wide screen LCD, VGA, HDMI, Audio input
RCIM-173WT 6u rack mount display, 17.3" wide screen , VGA, HDMI, Audio, resistive touch screen(COM/USB)
