Ruggedized Network Appliance
Ruggedized Network Security Appliance
Rugged Network Appliance
Industrial Network Appliance
Features

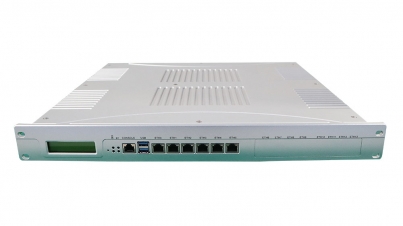

- Ruggedized fanless network security system appliance
- Supports Intel LGA1151 Socket 14nm Gen6/Gen7 Xeon E3-1200, Gen 6th i3 i5 i7 Core, Pentium processor
- Intel C236 chipset
- Two dual-channel 2133/2400MHz DDR4 slots, up to32 GB
- Six Intel PCIe GbE controllers for six network ports
- Three SATA3.0 6Gb/s and one mSATA
- Supports USB3.0, COM, VGA interface

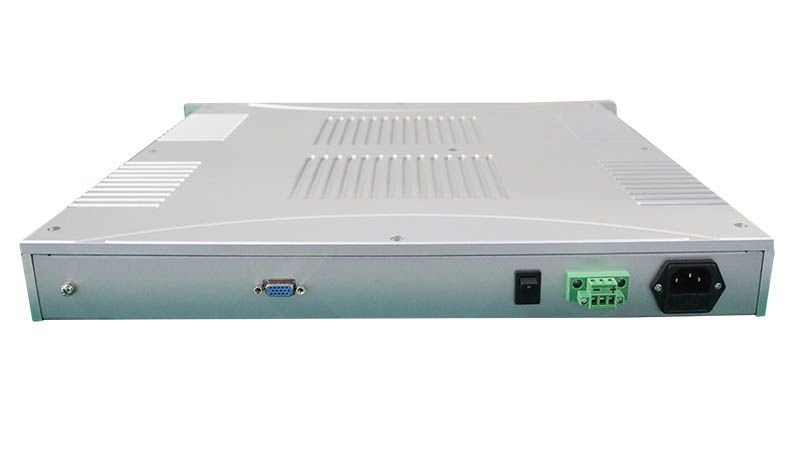

- Supports AC power and DC power supply hybrid dual redundant input
- Two PCIEx8 supports add two nic modules
- One PCIEx4 supports standard encryption card, isolation card
Specifications
Motherboard
- CPU Supports Intel LGA1151 Socket Gen6/Gen7 Xeon E3-1200, or i3/i5/i7 Core, Pentium processor
- Chipset Intel HC236 chipset
- BIOS SPI Flash BIOS
- System memory Two 2133/2400MHz DDR4 slots, up to 32GB
Storage
- Interface Three SATA3.0 connector
- Hard Drive Supports one 3.5/2.5" HDD trays
- SSD one mSATA slot
Ethernet
- LAN Port Six 10/100/1000Mbps RJ-45 ports
- Ethernet Controller Six Intel I210AT PCIe GbE controllers
- BYPASS 2 channels LAN BYPASS, optional 3 channels
- Indicator LAN link, active, speed LED, built-in BYPASS function LED
External I/O
- USB Two USB3.0
- COM One RJ-45 COM console
- Indicator One Power LED, one HDD LED
Internal I/O
- USB Two USB3.0 pin and two USB2.0 Pin
- COM One RJ-45 COM console
- Watchdog 1~255 seconds programmable software watchdog, support system reset
- Indicator One Power LED, one HDD LED
- Serial ports One RS232 Pin for LCM display module
- TPM One TPM interface for Trusted Platform Module
- Video Built-in one VGA interface, support hot plug(Internal)
- Expansion Two PCIex8 for LAN cards
- Expansion One PCIex4 for standard encryption card, isolation card
Power supply
- Power supply A One 110 ~ 240V AC input
- Power supply B One 16V~24V DC input
- Power compatibility Support dual-channel hybrid redundant power input or single-channel power input
Environmental
- Mounting Supports rack-mounting or desktop-mounting
- Operate Temperature -20°C ~ 70°C
- Storage Temperature -40°C ~ 85°C
- Operate Humidity 5% ~ 85% non-condensing @ 40°C
- Storage Humidity 5% ~ 95% non-condensing
Environmental
- Chassis Color Silver or OEM
- Front panel Aluminum front panel(OEM/Neutral)

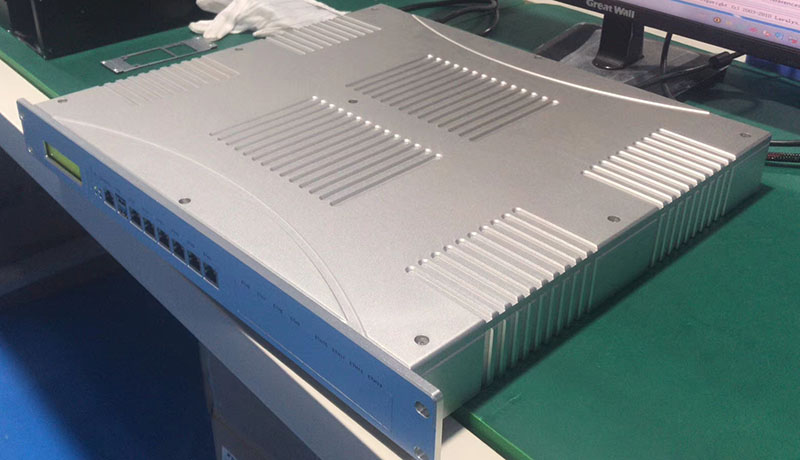

- Construction Ruggedized chassis, Aluminum material
- Dimensions (D x W x H) 450x438x51mm
- Weight 16.5kg
Ordering informations
- F23615 2u rackmount Ruggedized chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, AC and DC dual power input
Optional NIC modules

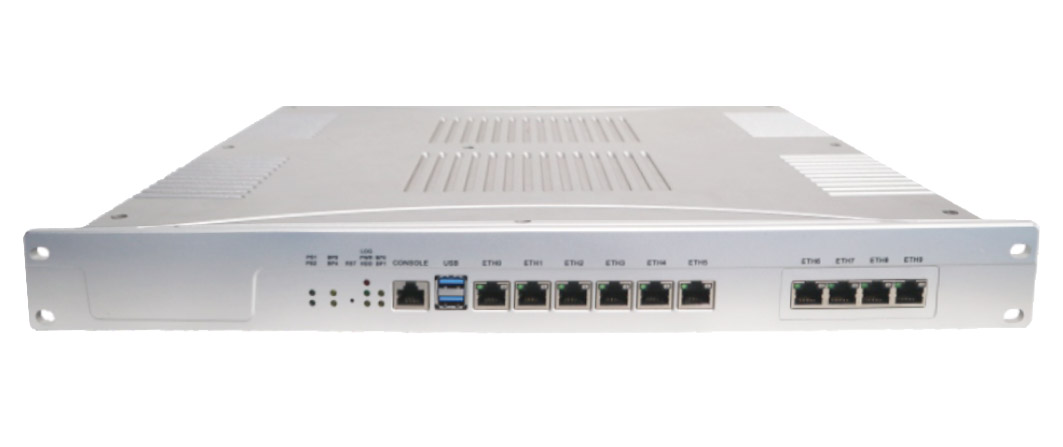

- 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
- 58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
- 58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
- 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
- 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
- 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
