F2316

F2316

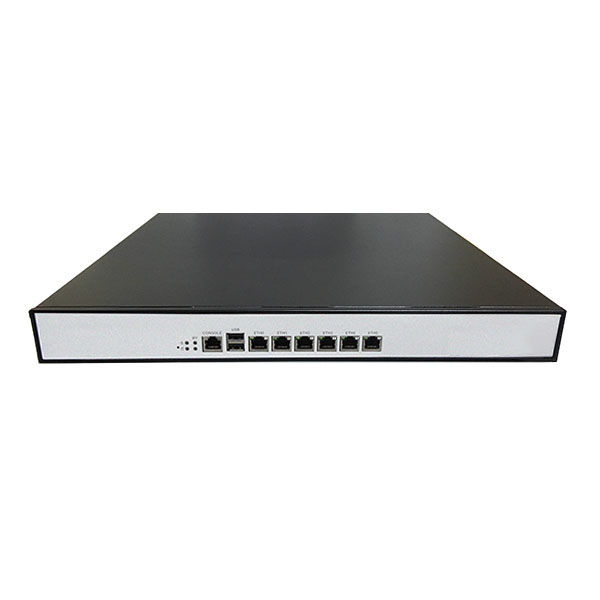

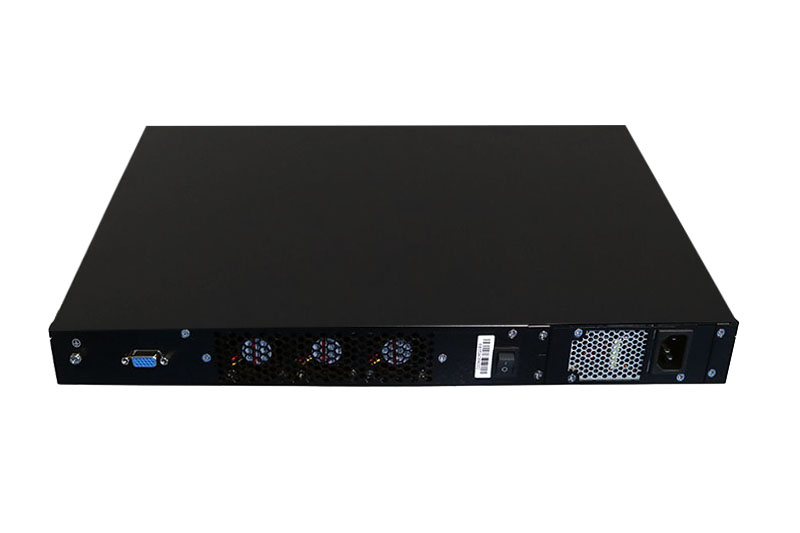

Network appliance with Intel LGA1151 Socket 6 Intel i210-AT Gbe controllers

Country of Origin: China
Customization OEM accepted

CPU Optional Datasheet (PDF) [2] Images

Network Appliance With 6 Intel I210-AT Gbe Controllers
Network Appliance With 6 Intel I210-AT Gbe Controllers

Network Security Appliance
Network Security Appliance

Network appliance with Intel C236 chipset LGA1151 soket supports Skylake/Kaby Lake, Gen 6th/7th i3 i5 i7 and Xeon E3-1200V5 CPU, single or redundant power supply.

Features
  • Supports  (Skylake/Kaby Lake) Intel LGA1151 Socket  Xeon E3-1200V5, Gen 6th i3 i5 i7 Core, Pentium processor
  • Intel C236 chipset
  • Two dual-channel 1866/2133MHz DDR4 slots, up to 32 GB
  • Six Intel PCIe GbE controllers(i210-AT)
  • One HDD trays and Three SATA 6Gb/s support RAID0, 1, 5, 10
  • Supports USB3.0, MSATA, CF TypeII, COM
  • Supports add one NIC model for more Intel GbE network ports
Specifications
Motherboard
  • CPU Intel LGA1151 Socket Gen5 Xeon E3. Gen6 i3/i5/i7 Core, Pentium processor
  • Chipset Intel C236
  • BIOS UEFI BIOS
  • System memory Two 1866/2333MHz DDR4 slots, up to 32GB
  • Watchdog Timer  Software programmable supports 1~255sec System reset
Storage
  • Interface Three SATA connector
  • Hard Drive one 3.5/2.5" HDD trays supports RAID 0, 1, 5, 10
  • SSD One mSATA slot, one CFII slot
Ethernet
  • LAN Port Six 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Six Intel I210-AT GbE controllers
  • BYPASS Optional 2/3 channels BYPASS
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0      Onboard 2xUSB2.0 Pin and 2xUSB3.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • LCM module Optional 2x16 characters LCM display module
  • Video Built-in one VGA interface, support hot plug(Internal)
  • TPM Built-in one TPM, for TPM module
  • DIO 8-bit Digital I/O (4-bit input, 4-bit output)
  • Expansion One standard PCIEx16 and  One standard PCIEx4
Power supply
  • Power consumption Built-in 250W power supply(Optional DC power or Redundant power)
  • Power input 100 ~ 240V AC input
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 450x435x44.5mm
  • Weight 12.9 kg
Ordering informations
  • F2316-B0 1u rackmount chassis, C236 Chipset, LGA1151 Socket, 6 x GbE RJ45, 250W PSU
  • F2316-B1 1u rackmount chassis, C236 Chipset, LGA1151 Socket, 6 x GbE RJ45, 250W PSU, with 2 channels LAN bypass
  • CPU Optional Skylake/Kaby Lake standard LGA1151 socket CPU
