Fanless design Ruggedized network security appliance

Country of Origin: China
Customization OEM accepted

Ruggedized Network Security Appliance

Fanless Network Security Appliance

Fanless Network Security Appliance With Ruggedized Construct

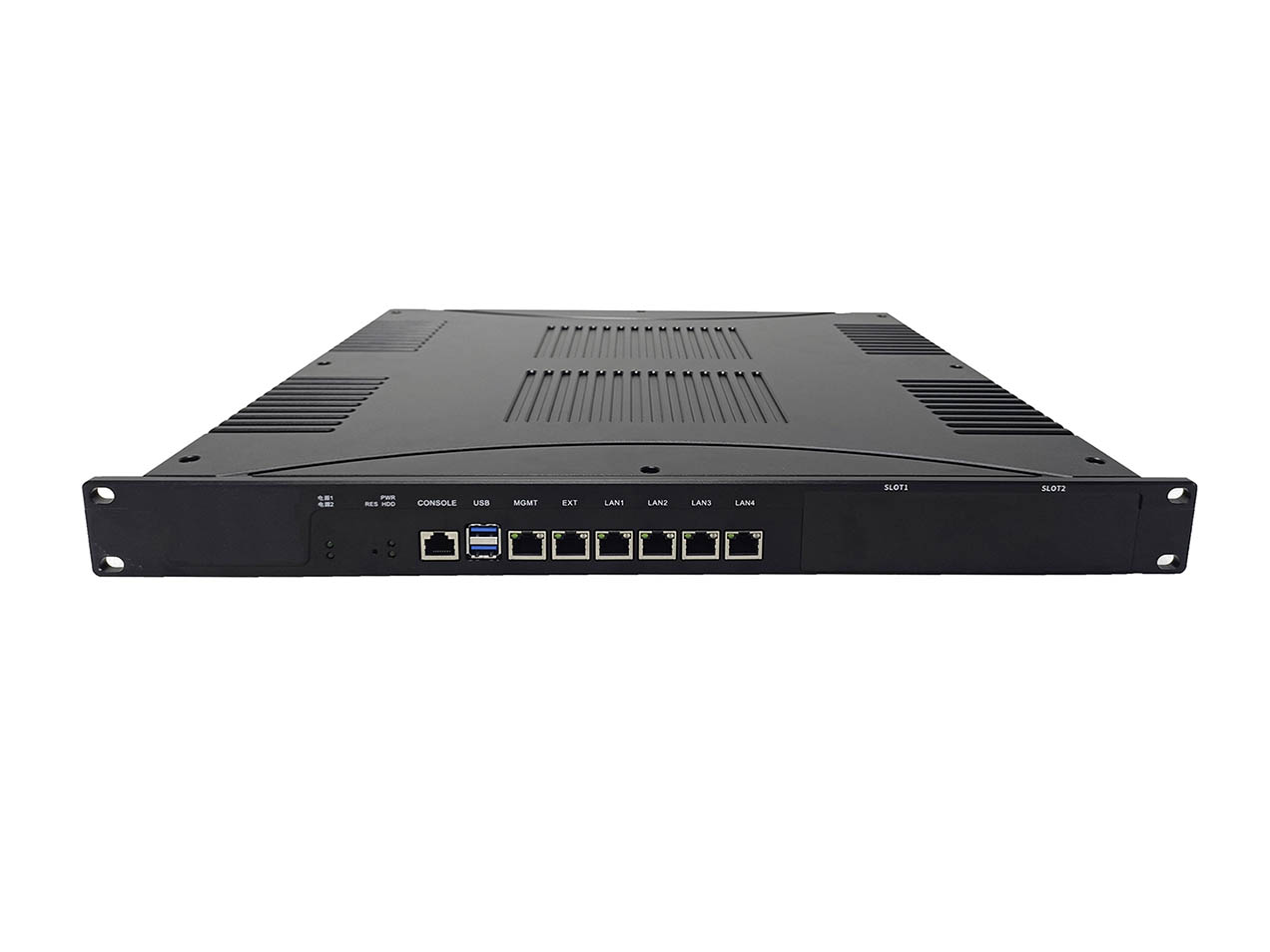

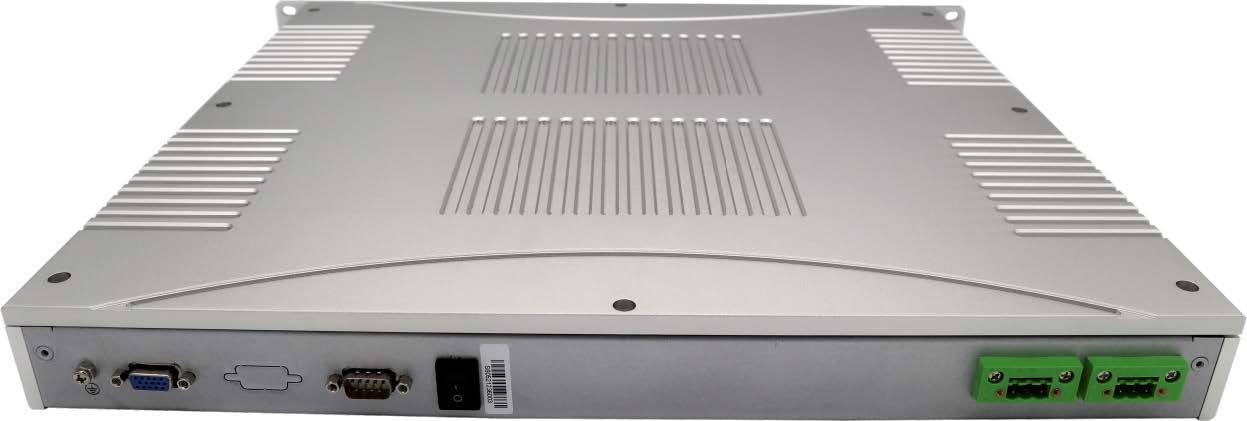

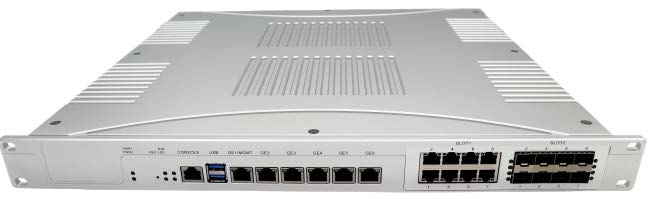

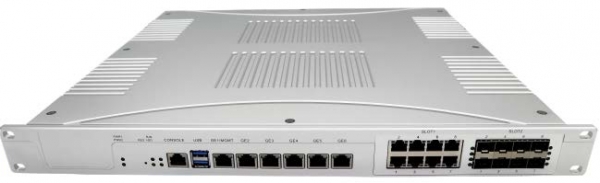

Ruggedized network security appliance, 1u Ruggedized aluminium chassis, fanless design with Intel C236 chipset LGA1151 socket supports Gen 7/6th i3 i5 i7 CPU, support dual 100~260V AC voltage or 120V~370V DC power supply

Features

Fanless network security appliance with Ruggedized construction
Supports Intel LGA1151 socket Gen6/7 i3 i5 i7 Core, Pentium processor
Intel C236 chipset
Two dual-channel 2133/2400MHz DDR4 slots, up to 64 GB
Six Intel PCIe GbE controllers for six network ports
Two SATA3.0 6Gb/s, one mSATA and one M.2
Supports USB3.0, COM, VGA interface
Supports AC power and DC power dual mixed redundant input,with power failure alarm
Two PCIEx8 slots, support add MAX 2 nic modules

Specifications

Motherboard

CPU Supports Intel LGA1151 Socket Gen6/Gen7 i3/i5/i7 Core, Pentium processor
Chipset Intel HC236 chipset
BIOS SPI Flash BIOS
System memory Two 2133/2400MHz DDR4 slots, up to 64GB

Storage

Interface Two SATA3.0 connector
Hard Drive One 2.5" HDD tray
SSD one mSATA and one M.2 interfaces

Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel I210AT PCIe GbE controllers
BYPASS 2 channels 3.0 LAN BYPASS
Indicator LAN link, active, speed LED, built-in BYPASS function LED

External I/O

USB Two USB3.0
COM One RJ-45 COM console
Indicator One Power LED, one HDD LED
Serial ports One RS232 Pin for LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Watchdog 1~255 seconds programmable software watchdog, support system reset
Expansion Two PCIex8 slots for LAN cards

Power supply

Power Type 225W dual power redundant input, 4000V AC high isolation voltage
Power Input Support 100~260V AC voltage or 120V~370V DC voltage
Power Options Dual AC input/ Dual DC input/ One AC + One DC, with power failure alarm function

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -20°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing
Storage Humidity 5% ~ 95% non-condensing

Environmental

Chassis Color Black/ Silver/ OEM
Front panel Aluminum front panel(OEM/Neutral)
Construction Ruggedized Aluminum chassis
Dimensions (D x W x H) 450x438x45 mm
Weight 16.5kg

Ordering informations

F23617 Industrial fanless network security appliance with 1u rackmount ruggedized chassis, Motheboard based C236 Chipset, 6 x GbE RJ45, 2 channels bypass,2 NIC extension, dual power redundant input

Optional NIC modules

35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
71W4 4 10G SFP based on Intel XL710 controllers
