Cyber appliance barebone for network security Intel J6413 CPU 6x RJ45 and 2x SFP LAN

Model NO. F64811

Customization OEM accepted

Datasheet (PDF) [2] Images

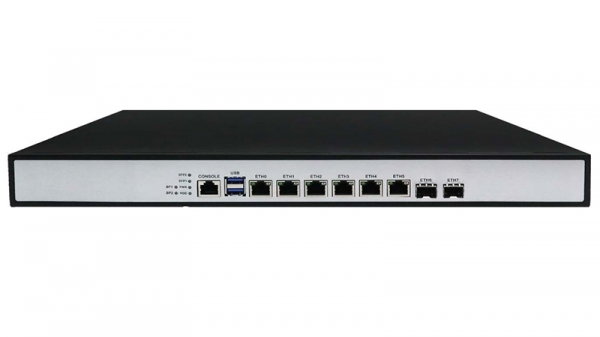

Cyber Appliance Barebone With 6x RJ45 And 2x SFP LAN
Cyber Appliance Barebone With 6x RJ45 And 2x SFP LAN

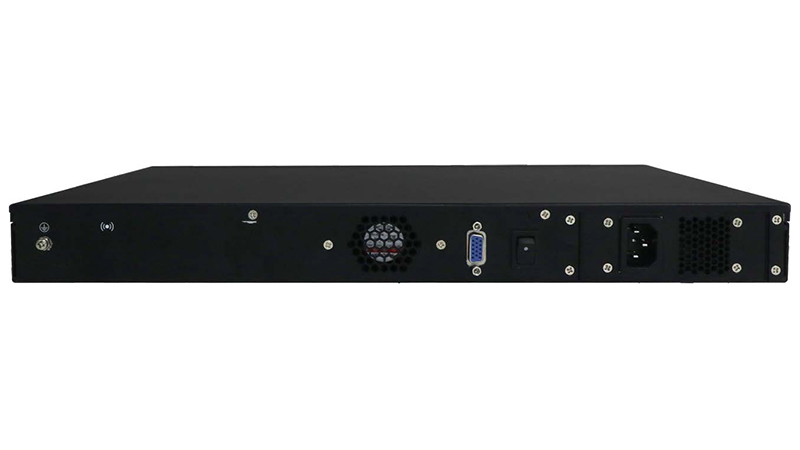

Cyber Appliance Barebone For Network Security
Cyber Appliance Barebone For Network Security

1U rackmount Cyber appliance barebone for network security, onboard Intel J6412 CPU, 6x 2.5G RJ45 network ports, 2 channels LAN Bypass, 2x SFP Gbe, one SATA and one mSATA interface, single or redundant power supply.


Features
  • 1u rackmount network security appliance
  • Onboard Intel Celeron Quad-core J6412 processor, 1.8GHz, 1.5MB L2 cache
  • One 260-pin 3200MHz so-DIMM slot, up to 32 GB
  • Six Intel 2.5G RJ45 ethernet ports, Intel I225-V Controller, two channels bypass
  • Two SFP 1G optical ports
  • One SATA interface and one mSATA interface
  • Two USB3.0, One CF TypeII
  • One RJ45 console for RS232 communication
Specifications
Motherboard
  • CPU   Onboard Intel Celeron J6412 processor CPU
  • System memory   One so-DIMM slot, Max 32GB
Storage
  • Interface   One SATA connector and one mSATA interface
  • Hard Drive   One 2.5/3.5" HDD tray
  • CF slot   One CFII slot
Ethernet
  • LAN Port Six 2.5G RJ45 network interfaces
  • Ethernet Controller Intel庐 Ethernet Controller I225-V
  • BYPASS Two  channels Gen3.0 BYPASS
  • Optical ports Two GBE SFP ports
  • NMC slots None
  • Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
  • USB Two USB3.0
  • COM One RJ-45 COM
  • Reset Button One built-in reset button
  • Indicator One Power LED, one HDD LED
  • Video Built-in one VGA interface, support hot plug(Internal)
Power supply
  • Power consumption Built-in 65W power supply
  • Power input 100 ~ 240V AC input
  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum front panel(OEM/Neutral)
  • Construction 1u chassis, Heavy duty metal
  • Dimensions (D x W x H) 295x430x44.5 mm
  • Weight 6.0 kg
Ordering informations
  • F64811 Network security appliance, 1u rackmount chassis, motherboard with Intel J6412 processor, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 65W PSU
  • F64811-P2 Network security appliance, 1u rackmount chassis, motherboard with Intel J6412 processor, 6x 2.5G RJ45, 2x 1G SFP, 2 channels bypass, 70W redundant PSU
  • F64811-8L Network security appliance, 1u rackmount chassis, motherboard with Intel J6412 processor, 6x 2.5G RJ45, 2x 1G RJ45, 2 channels bypass, 70W redundant PSU
