UTM firewall hardware appliance Powered by Intel 7th Gen Core Processors

Country of Origin: China
Customization OEM accepted

UTM Firewall Hardware

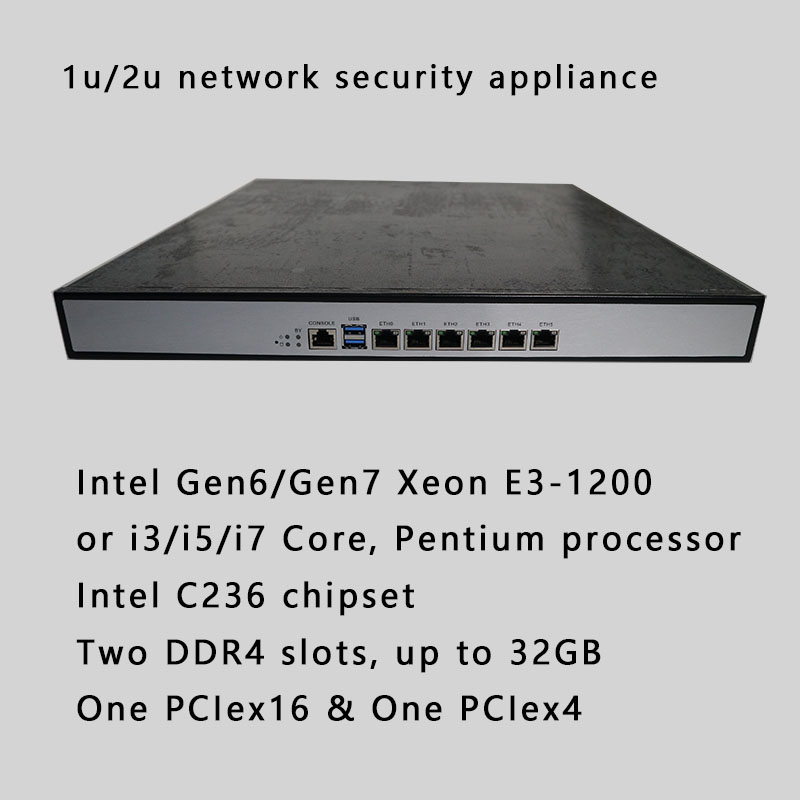

UTM firewall hardware [Photo.2]

The F23611 is a 1U network security system or UTM firewall hardware now upgraded with the 6th/7th generation Intel Core processors (codenamed Kaby Lake). Depending on the SKUs, there are various Ethernet connectivity options available. This high performance and I/O rich appliance is developed for network security, cloud computing and data centers.

Motherboard

CPU Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
Chipset Intel C236
System memory Two 2133/2400MHz DDR4 slots, up to 32GB

Storage

Interface Two SATA3.0 connectors and one mSATA slot
Hard Drive Supports two 3.5/2.5" HDD trays

Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel PCIe GbE controllers
BYPASS Optional 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One PCIex16

Power supply

Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x44.5mm
Weight 12.8 kg
