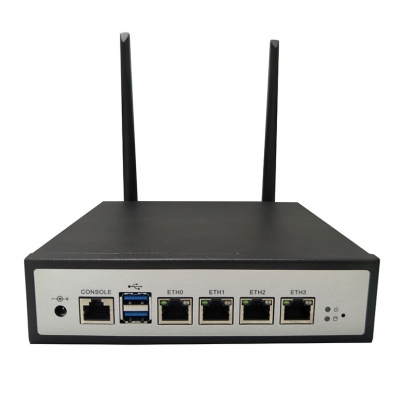

Small Desktop network firewall hardware device with 4GbE optional wifi module for linux windows pfsense

Small Desktop network firewall hardware device with 4GbE optional wifi module for linux windows pfsense

Model NO. F19403

Customization OEM accepted

Datasheet (PDF) [3] Images

Firewall Hardware Device

Firewall Hardware For Pfsense

Firewall Device For Pfsense

Features

Desktop network appliance, small chassis size 173 x 163 x 44.5mm
Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
One 204-pin DDR3-L DIMM slots,Pre-assemblied 8GB RAM
Four RTL8111 GbE controllers
One mSATA interface Pre-assemblied 250G SSD
Two USB3.0 interfaces
One RJ45 COM Console
Optional one expansion wifi
Supports linux, windows, pfsense, Etc.

Specifications

Motherboard

CPU Onboard Intel Bay Trial J1900 Quad-core CPU
BIOS AMI SPI flash BIOS
System memory One 204pin 1600MHz DDR3L slot, Pre-Assemblied 8GB Ram

Storage

Interface One mSATA socket, Pre-Assemblied 250GB SSD

Ethernet

LAN Port Four RJ-45 GBE ports
Ethernet Controller Four RTL8111 Ethernet Controller

Wifi(Optional)

Wifi Module 150Mbps WIFI module
Antenna Two 2.4GHz WiFi Antenna

External I/O

USB Two USB3.0
Console One Serial Console port, RJ45 connector
Power switch one power switch on rear panel
Indicator One Power LED, one HDD LED
Video Built-in one DB-15 VGA interface, support hot plug(Internal)

Internal I/O

USB Built-in two USB2.0 pin-header
Watchdog timer Support 1~255 second programmer WatchDog timer, support system reset

Heatsink/FAN

CPU Cooler One CPU heatsink, with one 12V 4010 FAN
System Fan One 12V 4010 system FAN

Power supply

Power consumption 12V / 3A, 36W power adatper
Power input 100 ~ 240V AC input, 2.0mm DC-JACK

Environmental

Mounting Supports desktop-mounting
Operate Temperature -10°C ~ 45°C
Storage Temperature -40°C ~ 70°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC (OEM/Neutral)
Construction Desktop chassis, SGCC case
Dimensions (D x W x H) 173 x 163 x 44.5mm
Weight 2.0 kg

Ordering informations

F19403 Desktop Network Security System, Intel Quad-Core J1900 CPU, with 8GB DDR3L*1 , 250GB mSATA SSD*1, 4 GbE LAN, WiFi, 36 Adapter

Packing List

1x F19403 System
1.5m RJ-45 console Cable (RJ-45 to DB-9 female port)
1x 2m blue direct net cable
1x 2m yellow cross net cable
1x 12V/3A 36W adapter
1x Accessory box (including rubber foot pad, screw bag)
2x 5db WiFi Antenna
1x CN to EN Power Converter
