ATX mainboard with LGA1151 socket 1x PCIEX16 2x PCIEX4 4xPCI

Model NO. MB-G366L6

Customization OEM accepted

Datasheet (PDF) [1] Images

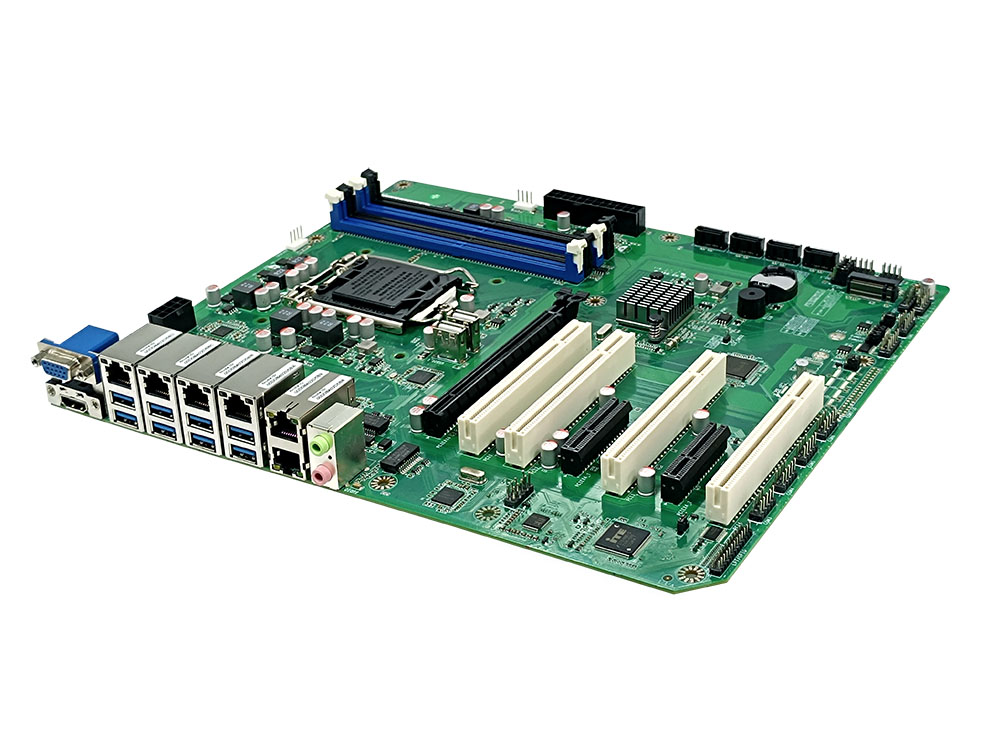

[Photo.1]

Features

Supports socket LGA1151 Intel® 6th/7th/8th/9th Gen Celeron/Pentium/Core i3/i5/i7/i9 processor
Intel® B365 chipset
4* DDR4 2133~2666MHz UDIMM, up to 128GB
6* Intel® I210 adaptive network cards, support Wake-on-LAN, diskless boot (LAN1~LAN4 optionally POE)
4* SATAⅢ（RAID 0、RAID 1、RAID 5 and RAID 10）
8* USB3.2 Gen1, LPT/GPIO/8 in 8 out, 10*COM, COM1/2 supports RS485 (optional)
1*PCIEX16,2*PCIEX4, 4*PCI

Specifications

Motherboard

CPU Intel® socket LGA1151 Gen 6th/7th/8th/9th CPU
Chipset Intel® B365
System memory 2 x DDR4 UDIMM, 2133-2666 MT/s, Max 64GB
Storage 4* SATAⅢ (RAID 0, RAID 1, RAID 5 and RAID 10), 1*M.2_SSD(NVME/NGFF)
Network 6 x Intel I210 adaptive network controllers, support Wake-on-LAN and diskless boot (LAN 1-4 POE optional)
Graphics CPU dependent
Display 1 x HDMI, maximum resolution 4096 x 2160 @ 24Hz 1 x VGA, maximum resolution 1920 x 1080 @ 60Hz
Audio Onboard ALC662 audio codec controller
Expansion Slots 1 x PCIEX16, 2 x PCIEX4, 4 x PCI
USB 8 x USB 3.2 Gen 1 Type A ports, 5 x onboard USB 2.0 pins
COM Suppports 6~10 COM ports (COM 1 and 2 optional RS485/RS232)
Rear Ports 1 x VGA Port
1 x HDMI Port
8 x 5Gbps USB Ports
6 x LAN Ports
1 x MIC_IN Port
1 x HP Port
Onboard Interfaces 2 F_USB2.0 Pins + 1 USB2.0 Pin (5 USB2.0) 1 LAN_LED Pin
1 I2C Socket
1 F_PANEL Pin
1 LPT/GPIO Pin
1 KB/MS Socket
2 CPU/SYS_FAN Sockets
10 COM Pins
2 SATA III Sockets
Environment Operating: -20°C to 60°C
Humidity: 0% to 95% relative humidity, non-condensing
Power supply ATX power supply
Mainboard Size 300X244 mm

Ordering information

6COM,1 个PCIEX16,2 个PCIEX4,4 个PCI

MB-G366L6 Mainboard supports B365 chispet,4*DDR4 RAM slots, M.2(NGFF/NVME), 4*SATA3.0 slot, 1*MPE supports WIFI/4G, 6*LAN(4* POE), 6*COM,1*PCIEX16,2*PCIEX4, 4*PCI, 1* HDMI, 1*VGA, 8*USB3
