MB-366A

MB-366A

Mainboard based on Intel B365 chipset and socket LGA1151

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [3] Images

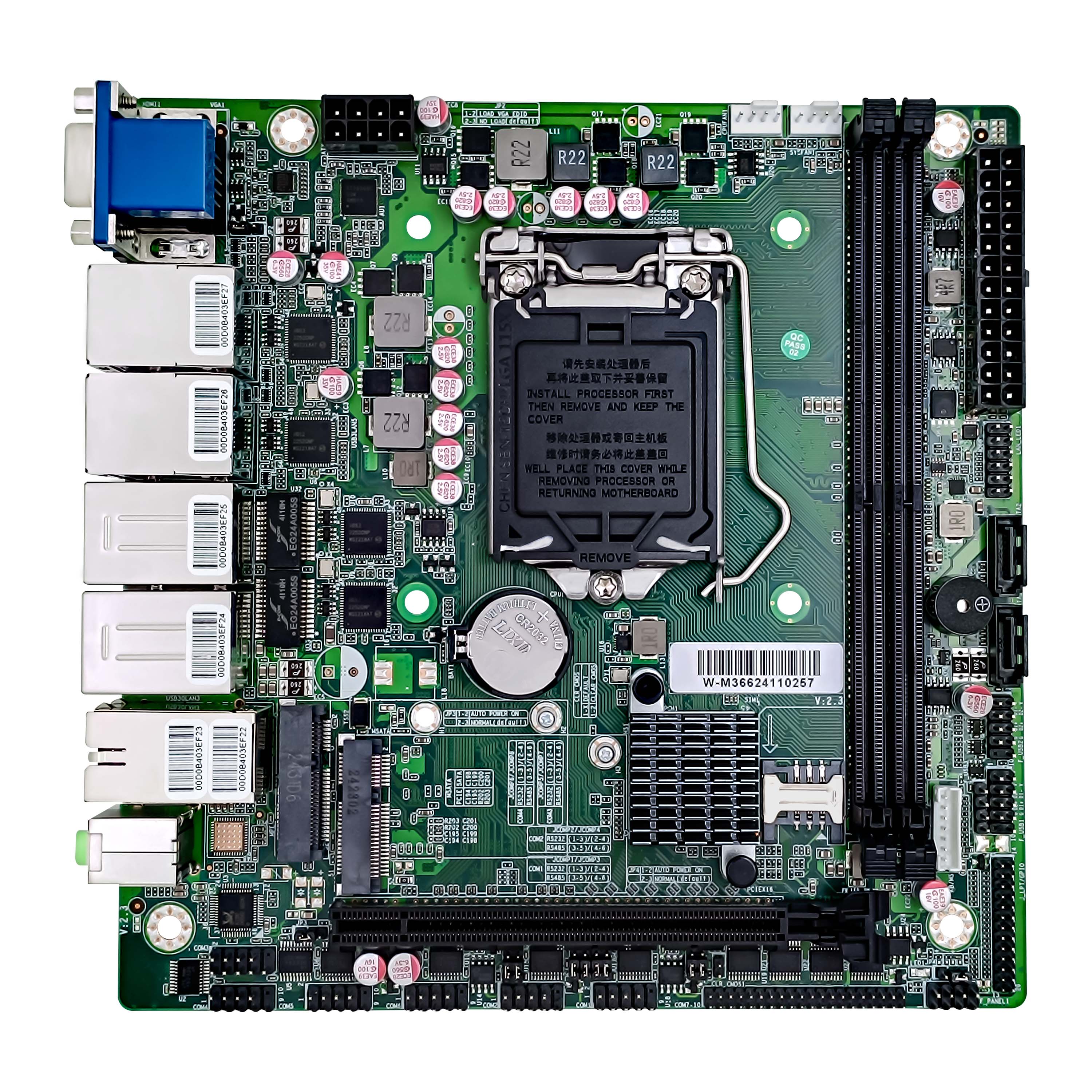

Mainboard Supports LGA1151 Socket Cpu
Mainboard Supports LGA1151 Socket Cpu

Mainboard Based On Intel B365 Chipset
Mainboard Based On Intel B365 Chipset

Mainboard Supports I3 I5 I7 I9 Processor
Mainboard Supports I3 I5 I7 I9 Processor

Features
  • Supports socket LGA1151 Intel® 6th/7th/8th/9th Gen Celeron/Pentium/Core i3/i5/i7/i9 processor
  • Intel® B365 chipset
  • 2*DDR4 2133~2666MHz UDIMM, up to 64GB
  • 6*Intel® I210 adaptive network cards, support Wake-on-LAN, diskless boot (LAN1~LAN4 optionally POE)
  • 1*MSATA, maximum transfer rate 6Gb/s, 2*SATA III, 1*MPE supports WIFI/4G
  • 8*USB3.2 Gen1, LPT/GPIO/8 in 8 out, 10*COM, COM1/2 supports RS485 (optional)
  • 1*PCIEX16, TPM2.0 are optional
Specifications
Motherboard
  • CPU Intel® socket LGA1151 Gen 6th/7th/8th/9th CPU
  • Chipset Intel® B365
  • System memory 2 x DDR4 UDIMM, 2133-2666 MT/s, Max 64GB
  • Storage 2 x SATA3.0, 1 x MSATA
  • Network 6 x Intel I210 adaptive network controllers, support Wake-on-LAN and diskless boot (LAN 1-4 POE optional)
  • Graphics CPU dependent
  • Display 1 x HDMI, maximum resolution 4096 x 2160 @ 24Hz 1 x VGA, maximum resolution 1920 x 1080 @ 60Hz
  • Audio Onboard ALC897 audio codec controller
  • Expansion Slots 1 x MiniPCIe; 1 x PCIe X16; 1 x SIM; 1 x TPM 2.0 (optional)
  • USB 8 x USB 3.2 Gen 1 Type A ports, 5 x onboard USB 2.0 pins
  • USB 8 x USB 3.2 Gen 1 Type A ports, 5 x onboard USB 2.0 pins
  • COM Suppports 10 COM ports (COM 1 and 2 optional RS485/RS232)
  • Rear Ports 1 x VGA Port
    1 x HDMI Port
    8 x 5Gbps USB Ports
    6 x LAN Ports
    1 x MIC_IN Port
    1 x HP Port
  • Onboard Interfaces 2 F_USB2.0 Pins + 1 USB2.0 Pin (5 USB2.0) 1 LAN_LED Pin
    1 I2C Socket
    1 F_PANEL Pin
    1 LPT/GPIO Pin
    1 KB/MS Socket
    2 CPU/SYS_FAN Sockets
    10 COM Pins
    2 SATA III Sockets
  • Environment Operating: -20°C to 60°C
    Humidity: 0% to 95% relative humidity, non-condensing
  • Power supply 24+8 ATX power supply
  • Mainboard Size 180X180mm
Ordering information
  • MB-366A Mainboard supports B365chispet,2*DDR4 RAM slots, 1* MSATA, 2*SATA3.0 slot, 1*MPE supports WIFI/4G, 6*LAN(4* POE), 10*COM,1*PCIEX16, 1* HDMI, 1*VGA, 8*USB3
