5u Rack mount Industrial computer IPC chassis with 10.4inch LCD and keyboard and touchpad

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

5u Industrial Computer With LCD

Industrial Computer With LCD And Keyboard

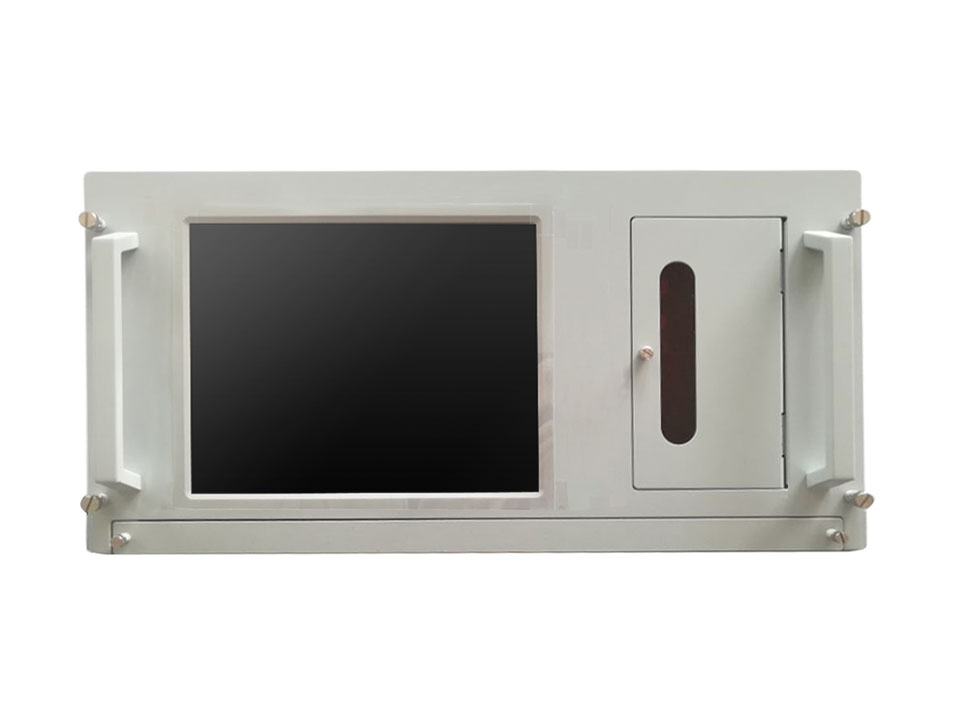

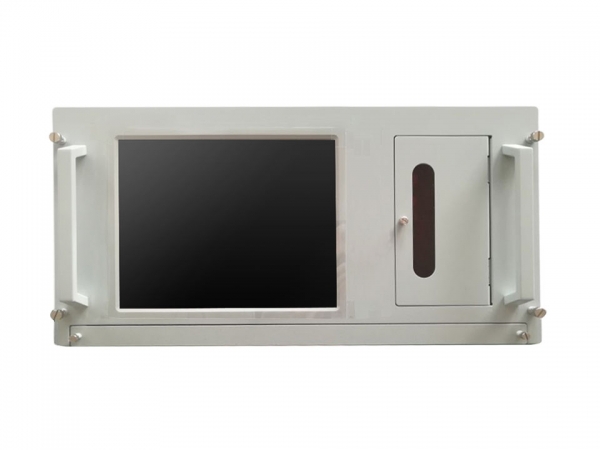

5u Rack mount Industrial computer, IPC-104N is a 5 u rackmount IPC chassis with 10.4" TFT LCD , keyboard and touchpad, supports full-size sbc or ATX/ Micro-ATX motherboard, 7/14 expansion slots.

Features

5U industrial computer integrated LCD and keyboard
Support Full-size CPU card or ATX/Micro-ATX motherboard foam factor
For ATX motherboard 7 expansion slots/ backplane 14 expansion slots
10.4" SVGA TFT LCD screen display
Built-in keyboard and Touchpad drawer
Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives
Signal input VGA and HDMI interface
2xUSB Accessible from the front door
Support PS2 and redundant power supply
Power & HDD status indicator by front viewable LED indicator
Aluminium front panel, Heavy duty steel chassis

Specifications

System

Construction 5u Rackmount Heavy-Duty Steel Chassis
Disk Driver Bay 5.25" x1 , 3.5" x2
Cooling Fan 2x cooling fan, with air filter and Moistureproof design
Keyboard Built-in full-function keyboard and touch pad.
OSD OSD function in front panel
I/O Connector Front panel: 2xUSB2.0
Rear panel: DVI, VGA, USB, PS/2(Optional)
LED indicators & Switch Power LED indicator(Green), HDD LED indicator(Red), Power Switch and reset
Color White

LCD display

Display type 10.4" XGA TFT LCD
Resolution 800x600 or 1024x768
Colors 16.7M
Backlight LED
Luminance 350 cd/m2
Contrast Ratio 500:1
View angle 110°(H) , 120°(V)
LCD MBTF 50,000hrs

Touchscreen(Optional)

Type Resistive Touch Screen
Resolution continuous
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 80% or more
Operating Force 250g

Environmental

Oprerating Tempreture 0 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C, on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
Safty FCC/VDE(Level A)

Packing info

Dimensions(WxHxD) 482 x 221 x 470 mm
Packing Dimension 560x420x53 0mm
NET weight 19 KG

Ordering informations

RCWS-104N 5U rackmount industrial computer chassis, 10.4"TFT LCD, 88-keys keyboard and touch pad, for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard foam factor
RCWS-104NT 5U rackmount industrial computer chassis, 10.4"TFT LCD, 88-keys keyboard and touch pad, touchscreen, for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard foam factor
