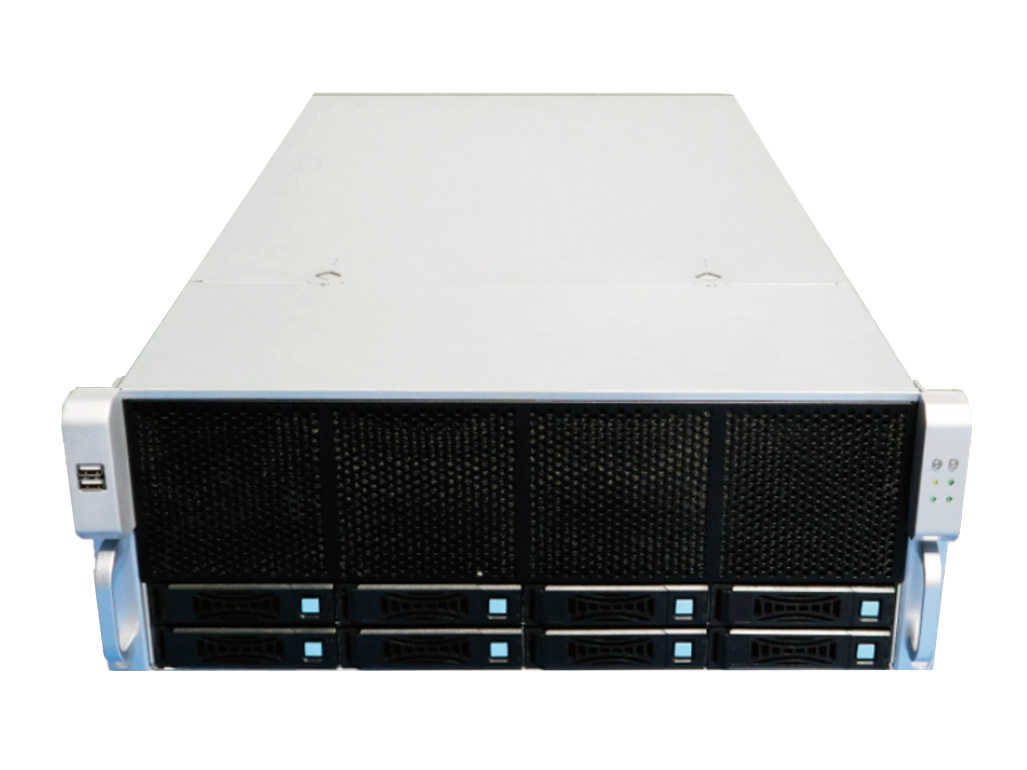

4U rackmount computer server for AI system with 8 PCIex16 slot and 2x PCIex8 slots

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [3] Images

4U Server

4U Rackmount Computer

AI Server Based On Intel C612 Shipset

4U rackmount computer server for AI system with high performance server motherboard, supports two Xeon E5-2600V3/V4 CPU, two GbEs, Max 512G DDR4 ECC RAM, Max 8 hot-swap HDD/SSD, 8x PCIex16 slot(For Max 8 GPU cards) and 2x PCIex8 slots(For two 1g/10G NIC or RAID), 1200W platinum 1+1 redundant power supply

Features

High efficience 4U rackmount computer server for AI system
Supports Two 22nm Intel E5-2600 V3/V4 processors
Intel C612 chipset
Eight 288-pin 2133/2400MHz DDR4 slots, up to 512 GB
Two Rj45 GbE ports, One for console and supports IPMI2.0
Max 8 hot-swap HDD trays
10 SATA3.0 interface, support RAID 0, 1, 5, 10
Supports IPMI2.0, USB3.0/&SB2.0, COM

Specifications

Motherboard

CPU Supports Two Xeon E5-2600 V3/V4 CPU, QPI up to 8.0GT/s
Chipset Intel C612 Chipset
System memory Eight DDR4 288-pin slots, up to 512GB

Storage

Interface Ten SATA3.0 connectors, support RAID 0, 1, 5, 10

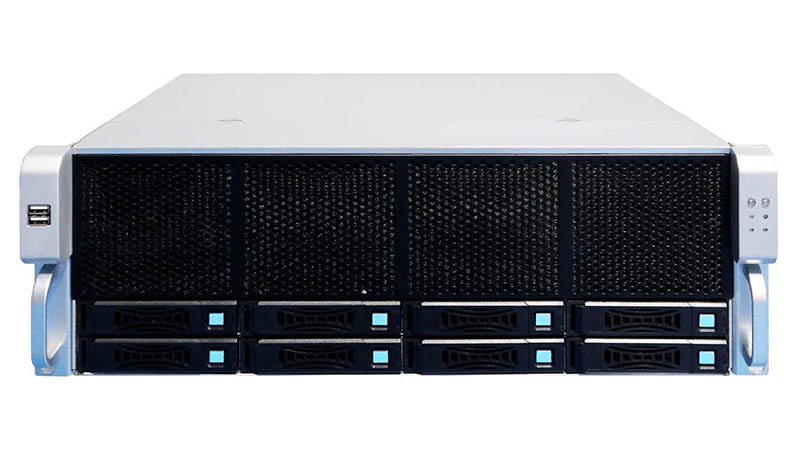

Hard Drive Eight 3.5" HDD trays
RAID Optional LSI Mega RAID SAS high efficience RAID

Ethernet

LAN Port Two 10/100/1000Mbps RJ-45 ports
Ethernet Controller Two Intel PCIe GbE controllers

Display

Graphic ASPEED AST2400 graphics controller
Vedio port One external VGA ports

System I/O

USB Two USB3.0 and Two USB2.0, Four internal USB2.0 interface
COM One DB-9 COM port, One internal RS-232 Pin interface
Indicator One Power LED, one HDD LED
Watchdog Timer Software programable supports1-255 sec. system reset

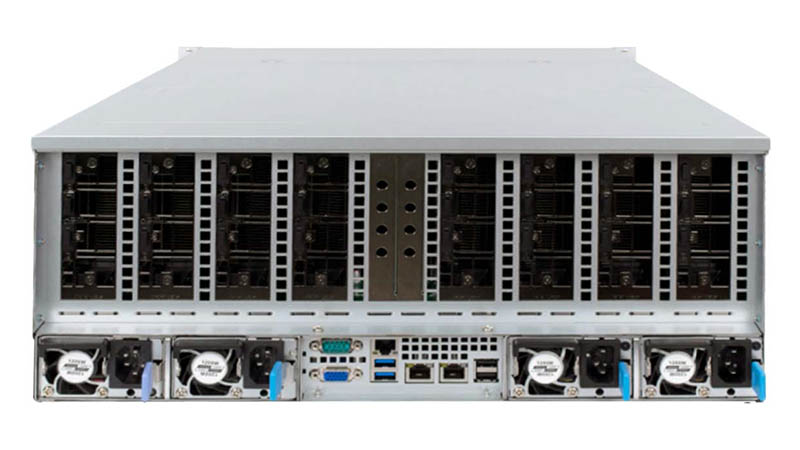

Expansion 8x PCIex16 slot(For Max 8 GPU cards) and 2x PCIex8 slots(For two 1g/10G NIC or RAID)

Power supply

Power consumption 1200W 1+1 server redundant platinum power supply
Power input 100 ~ 240V AC input
Optional DC power or AC power

Environmental

Mounting Supports rack-mounting
Operate Temperature -10°C ~ 45°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Silver grey or OEM
Front panel Aluminum front panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 800x448x178mm
Weight 19 kg

Ordering informations

S62341 AI computer server 4U rackmount, with server motherboard, supports two Xeon E5-2600V3/V4 CPU, two GbEs, Max 512G DDR4 ECC RAM, Max 8 hot-swap HDD,8x PCIex16 slot and 2x PCIex8 slots, 1200W 1+1 redundant platinum power supply
