Supports Windows XP Professional and WinXPe, Win7, Win8, Win10, Linux
2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC
1* Mini PCIe slot and wifi optional
Panel ( Flush ) mount with clips
Standard VESA 75mm support stand , wall mount and swing arm
Specifications
System
ProcessorIntel Celeron J1900
ChipsetICH8M
MemoryDDR3 2G RAM(Max 8G)
StorageSSD 32G(HDD optional)
Ethernet1 x 100/1000 LAN ports
Video1 x VGA, 1x HDMI & LVDS
Audio1x line out
USB Port4 x USB 2.0
Serial Port2 x RS-232
Power switch1 x power switch
Expansive Slot1 x Mini PCIe
Power supplyDC12V(Optional 9-36V)
ConstructionFront aluminum bezel and steel chassis
LCD display
Display Type12.1 XGA TFT LCD
Resolution1024 x 768
Max.color16.2M
Luminance200 cd/m2
View Angle150°(H) , 135°(V)
Pixel Pitch0.297 x 0.297 mm
Contrast Ratio300:1
Response Time8 ms
LCD MTBF50, 000hrs
Available Options
Touch screenResistive type touch screen
Wireless LANMeet IEEE802.11b/g standard(WiFI)
DC Power InputWide Range 9~36v DC input
Power supply
Input100~240VAC , 50/60Hz
OutputDC 12V-In , external ac adapter with lockable connector
Environmental
Operate temperature32 °F~113 °F (0 °C to 45°C)
Storage temperature-4 °F~140 °F (-20 °C to 60 °C)
Storage humidity10% to 90% non-condensing
Anti-Vibration17HZ-500 HZ 1G PTP
Anti-Shock1G / peak( 11m sec)
ApprovalsCE/ROHS
Packing info
Dimensions (WxHxD)322X247.5X71 mm
WeightNet: 4.9kg , Gross:7.0 kg
Ordering informations

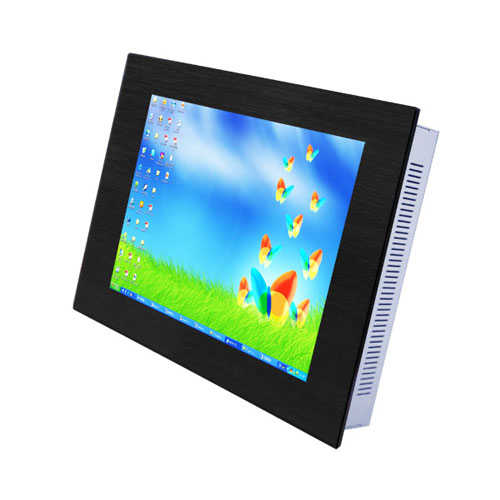

IPC-0212J12.1"es industrial LCD All in one touch screen PC, with Intel J1900 Processor, 2G RAM, 32GSSD,2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC , Resistive Touch Screen
