  3. 10.4 inch LCD Industrial Touch Panel PC

IPC-0210J

IPC-0210J

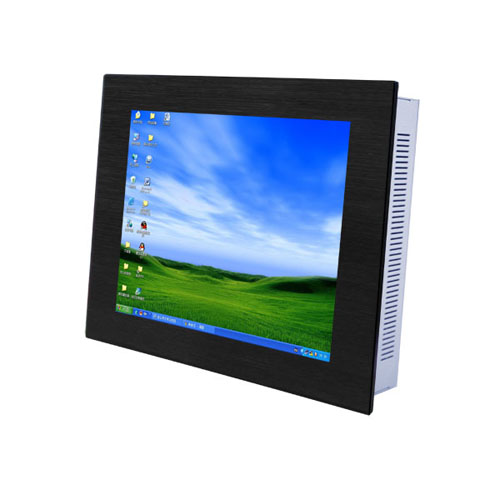

10.4 inch LCD Industrial Touch Panel PC

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

All In One Pc
All In One Pc

Features
  • 10.4" SVGA TFT LCD Panel support 800x600/ 1024x768 pixels & touch screen
  • Intel Celeron J1900 Quad Core 2.0G CPU
  • Supports Windows XP Professional and WinXPe, Win7, Win8, Win10, Linux
  • 2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC
  • 1* Mini PCIe slot and wifi optional
  • Panel ( Flush ) mount with clips
  • Standard VESA 75mm support stand , wall mount and swing arm
Specifications
System
  • Processor Intel Celeron J1900
  • Chipset ICH8M
  • Memory DDR3 2G RAM(Max 8G)
  • Storage SSD 32G(HDD optional)
  • Ethernet 1 x 100/1000 LAN ports
  • Video 1 x VGA, 1x HDMI & LVDS
  • Audio 1x line out
  • USB Port 4 x USB 2.0
  • Serial Port 2 x RS-232
  • Power switch 1 x power switch
  • Expansive Slot 1 x Mini PCIe
  • Power supply DC12V(Optional 9-36V)
  • Construction Front aluminum bezel and steel chassis
LCD display
  • Display Type 10.4 SVGA TFT LCD
  • Resolution 800 x 600
  • Max.color 16.2M
  • Luminance 250 cd/m2
  • View Angle 150°(H) , 135°(V)
  • Pixel Pitch 0.297 x 0.297 mm
  • Contrast Ratio 500:1
  • Response Time 8 ms
  • LCD MTBF 50, 000hrs
Available Options
  • Touch screen Resistive type touch screen
  • Wireless LAN Meet IEEE802.11b/g standard(WiFI)
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Input 100~240VAC , 50/60Hz
  • Output DC 12V-In , external ac adapter with lockable connector
Environmental
  • Operate temperature 32 °F~113 °F (0 °C to 45°C)
  • Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Approvals CE/ROHS
Packing info
  • Dimensions (WxHxD) Dimensions(WxHxD) 294x234x68 mm
  • Packing Dimension 406x340x140 mm
  • Weight NET weight 4 KG
Ordering informations
  • IPC-0210J 10.4"es industrial LCD All in one touch screen PC , with    Intel J1900 Processor, 2G RAM,    32GSSD,2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC , Resistive Touch Screen
