- 15 inch Industrial touch panel PC with Intel Celeron J1900 Quad Core CPU
IPC-0215J

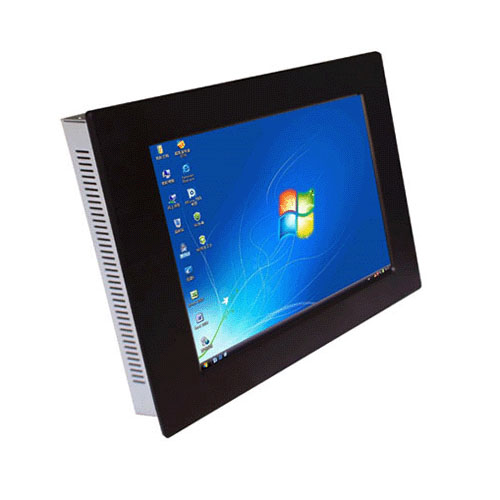

15 inch Industrial touch panel PC with Intel Celeron J1900 Quad Core CPU
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
[1] Images
Industrial Touch Screen PC
Features
- 15" XGA TFT LCD Panel support 1024x768 pixels & touch screen
- Intel Celeron J1900 Quad Core 2.0G CPU
- Supports Windows XP Professional and WinXPe, Win7, Win8, Win10, Linux
- 2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC
- 1* Mini PCIe slot and wifi optional
- Panel ( Flush ) mount with clips
- Standard VESA 75mm support stand , wall mount and swing arm
Specifications
System
- Processor Intel Celeron J1900
- Chipset ICH8M
- Memory DDR3 2G RAM(Max 8G)
- Storage SSD 32G(HDD optional)
- Ethernet 1 x 100/1000 LAN ports
- Video 1 x VGA, 1x HDMI & LVDS
- Audio 1x line out
- USB Port 4 x USB 2.0
- Serial Port 2 x RS-232
- Power switch 1 x power switch
- Expansive Slot 1 x Mini PCIe
- Power supply DC12V(Optional 9-36V)
- Construction Front aluminum bezel and steel chassis
LCD display
- Display Type 15 XGA TFT LCD
- Resolution 1024x768
- Max.color 16.2M
- Luminance 350 cd/m2
- View Angle 150°(H) , 135°(V)
- Pixel Pitch 0.297 x 0.297 mm
- Contrast Ratio 700:1
- Response Time 8 ms
- LCD MTBF 50, 000hrs
Available Options
- Touch screen Resistive type touch screen
- Wireless LAN Meet IEEE802.11b/g standard(WiFI)
- DC Power Input Wide Range 9~36v DC input
Power supply
- Input 100~240VAC , 50/60Hz
- Output DC 12V-In , external ac adapter with lockable connector
Environmental
- Operate temperature 32 °F~125 °F (0 °C to 50°C)
- Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
- Storage humidity 10% to 90% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
- Approvals CE/ROHS
Packing info
- Dimensions (WxHxD) 406x312x76 (mm)
- Weight Net: 6kg, Gross:8.2 kg
Ordering informations
- IPC-0215J 12.1"es industrial LCD All in one touch screen PC, with Intel J1900 Processor, 2G RAM, 32GSSD,2*COM,1*HDMI,1*VGA,4*USB,1*GLAN,1*AUDIO,1*MIC , Resistive Touch Screen
