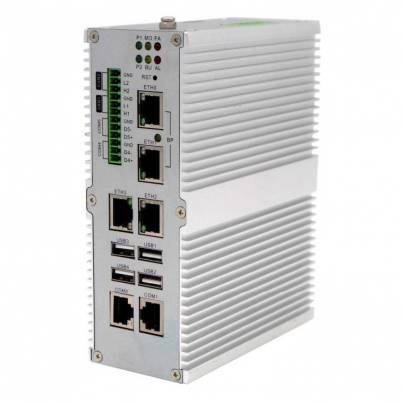

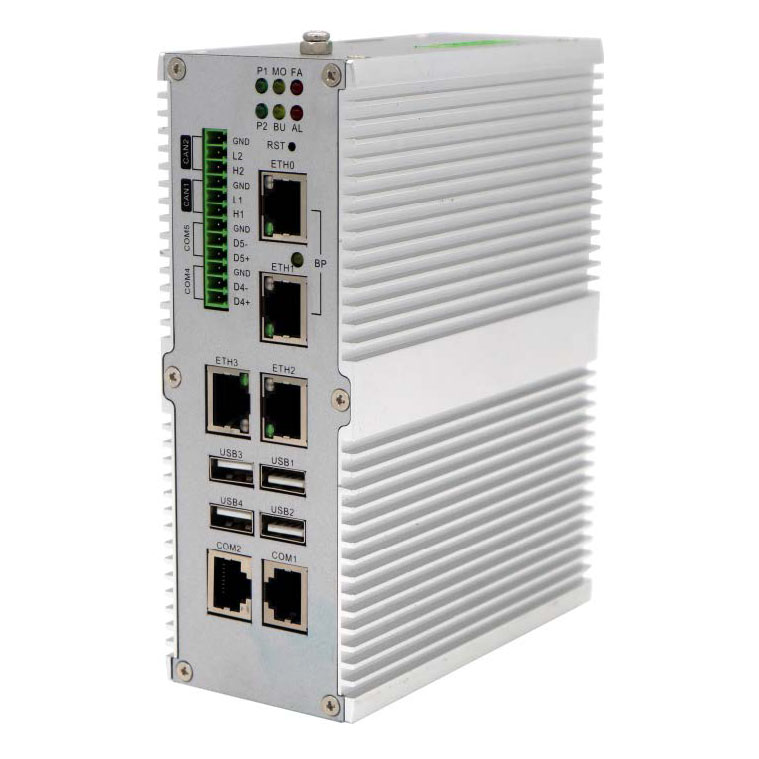

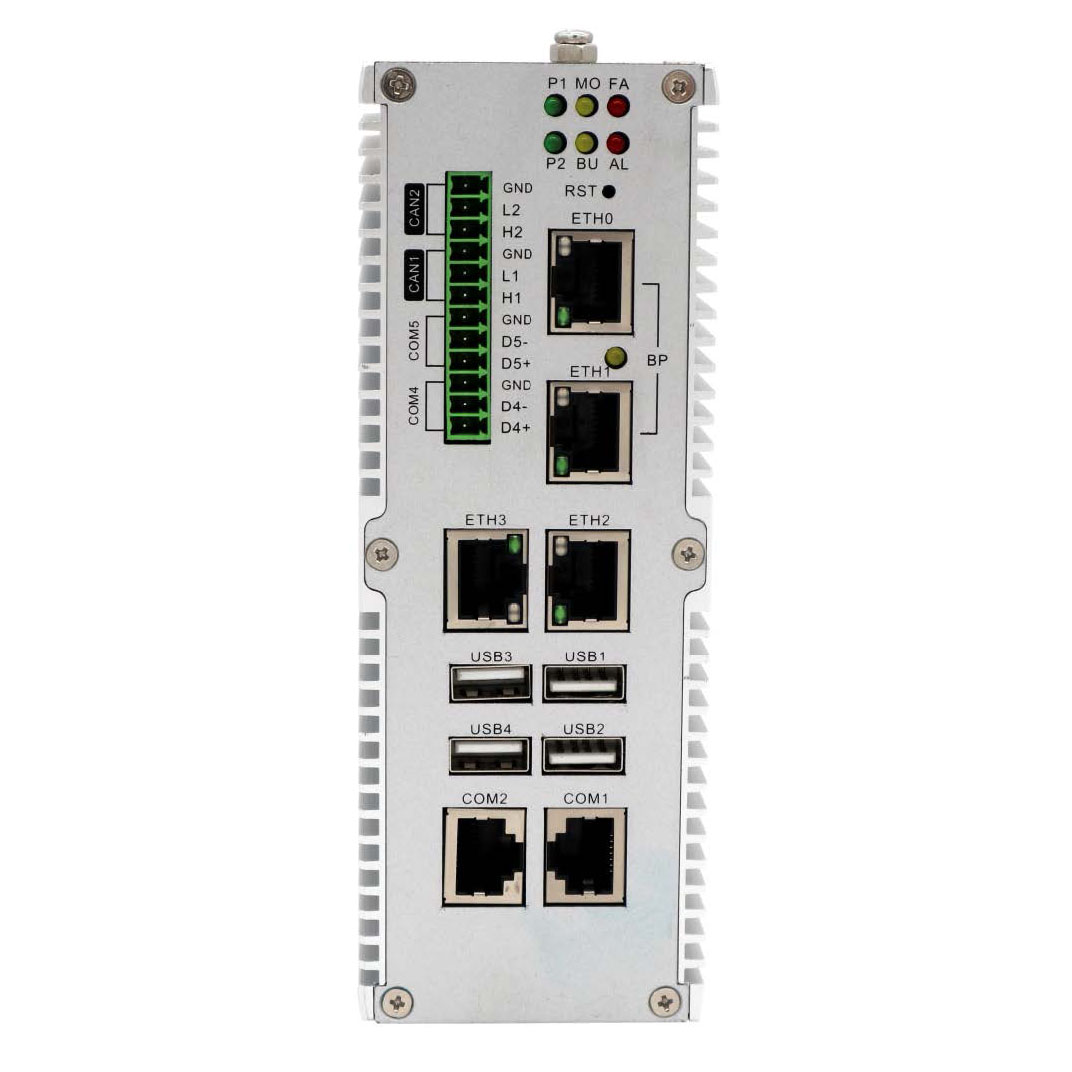

DIN-RAIL installation Industrial computer with 4x GbE RJ45 2x CAN 2x Rs232 and 3x RS485

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

DIN-RAIL Industrial Computer

DIN-RAIL Embedded Computer

Din-rail Industrial Industrial computer, Fanless Wide-temperature, high reliability, small size support DIN-RAIL rail type installation. onboard Intel© E3845 processor, four RJ-45 GbE networking ports and two RJ45 RSS232 and three RS485, One mSATA interface, Dual 9-36V DC power. It offers a powerful and versatile solution for a wide range of industrial/ IOT applications. With their rugged design and wide temperature range, they can operate in harsh environments.

Features

Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Four Gigabit Ethernet ports, support Two channels LAN BYPASS
Two RS232 RJ45 port
Three RS485 COM phoenix interface with static protection
Two CAN phoenix interface with isolated protection
Optional a 4G model(external SIM slot)
Four USB2.0, mSATA storage
Two 9~36V DC inputs, with alarm for power failure
Multi-function LED indicators, support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL type installation
Widely used in industrial-application environments

Specifications

Motherboard

CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
BIOS SPI FLASH BIOS
System memory Max 4GB RAM

Storage

Interface One SATA Interface
SSD MAX 512G industrial mSATA SSD
CF slot None

Ethernet

LAN Port Rj45 Four RJ45 Gigabit network interfaces
BYPASS One Gen 3.0 channel LAN BYPASS with indicator led
Indicator With LAN link, active, speed LED, built-in BYPASS status LED

System I/O

USB Two USB2.0
COM RS232 Two RS232 RJ45, COM1~COM2 interfaces
COM RS485 Three RS485 COM, COM4~COM3 Phoenix connector
CAN Two isolated CAN interfaces, with H/L/GND, Phoenix connectors
Indicator One Power LED, one HDD LED
Display Option one VGA interface, supports hot plug
USB Four USB2.0 Pin interface
Reset One built-in reset button
DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
Watchdog 1~255 seconds programmable software watchdog, support system reset
4G module One full Netcom 4G module, external SIM slot

Power supply

Power consumption 60W power adapter
Power input Dual 9 ~ 36V wide range DC input

Environmental

Mounting Support DIN-RAIL rail type installation
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Silver
Front panel Front panel silk-screen [Customized LOGO optional]
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158x122x60.8 mm
Weight 3.5 kg

Ordering informations

F1930C Aluminum extrusion chassis, E3845 CPU, 4x GbE RJ45 with one lan bypass, 2x CAN, 2x Rs232 and 3x RS485 COM, Dual 9~36V DC input, 60W Power adapter
