DIN rail Industrial computer embedded with 3 RJ45 GbE network ports

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

DIN Rail Industrial Computer

Embedded Computer

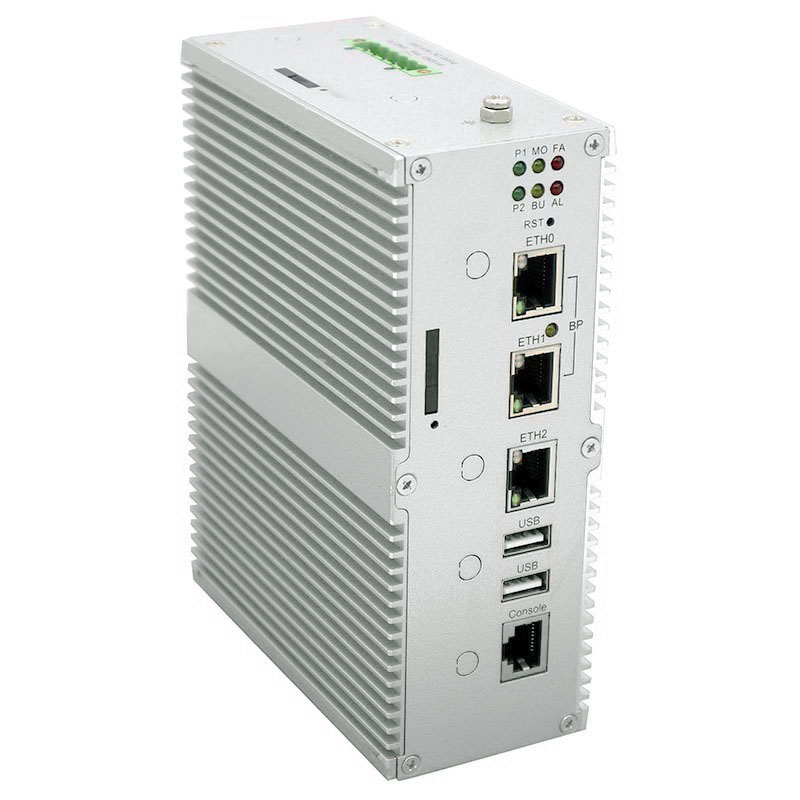

F19309 is a DIN rail Industrial computer, embedded network application appliance, wide-temperature, high realtabilty, small size support DIN-RAIL rail type installation. onboard Intel® E3845 processor, 3 RJ-45 GbE network ports, supports 4G/5G module, one SATA and one mSATA interface, Dual 9-36v DC in power supply

Features

low power Intel Atom E3845 processor, 1.91GHz, 2MB cache
One 1600MHz DDR3L RAM slot, Max 8GB RAM
Three Gigabit Ethernet ports, support one channel LAN BYPASS
One RJ-45 Console serial port, one RS-485 isolated interface
Two USB2.0, mSATA storage
Supports one external SIM slot for full netcom 4G module and another external SIM slot for full netcom 5G/4G module

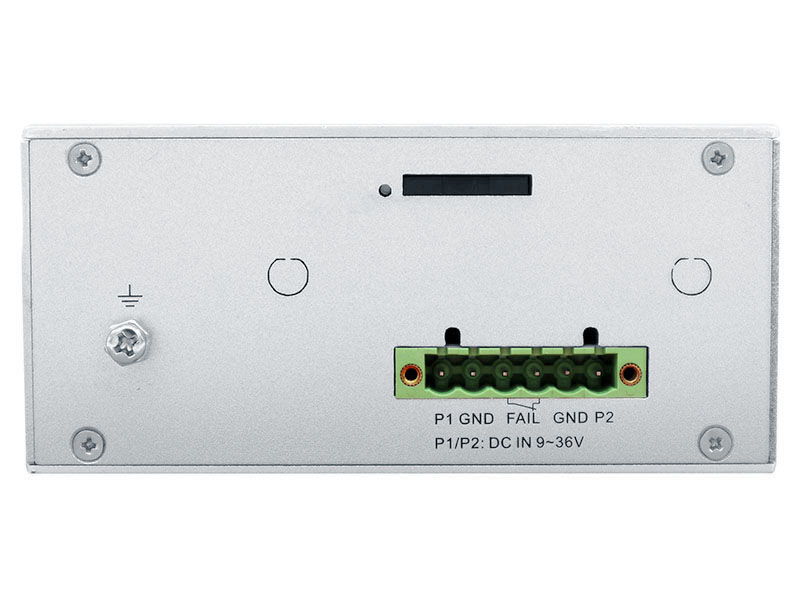

Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support to customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Support industrial-application environment

Specifications

Motherboard

CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
BIOS SPI FLASH BIOS
System memory Max 8GB RAM

Storage

Interface One SATA Interface
SSD One mSATA slot
CF slot None

Ethernet

LAN Port Three 10/100/1000Mbps RJ45 network interfaces
Ethernet Controller Three Intel I211AT Gigabit Network Controllers
BYPASS Supports one channel LAN BYPASS
Indicator With LAN link, active, speed LED, built-in BYPASS status LED

External I/O

USB Two USB2.0
COM One RJ-45 COM console
Indicator One Power LED, one HDD LED

System I/O

Display Optional external DB15 VGA interface, supports hot plug
USB Two USB2.0 Pin interface
Button One built-in reset button
RS232 COM One RS232 console RJ45 interface
RS485 COM One RS-485 3-pin phoenix interface with isolation
SIM slot One one external SIM slot for full netcom 4G module and another external SIM slot for full netcom 5G/4G module
DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
Watchdog 1~255 seconds programmable software watchdog, support system reset

Power supply

Power input 36W power adapter
Power Type 100 ~ 240V full range AC 60W adapter

Environmental

Mounting Support DIN-RAIL rail type installation
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Slive or OEM(≶=100 units)
Front panel Silk-screen [Customized LOGO optional]
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158x122x60.8 mm
Weight 3.0 kg

Ordering informations

F19309 Din rail industrial computer, with Aluminum extrusion chassis, E3845 CPU, 3 x GbE RJ45, one lan bypass, Two sim slots supports 4G/5G module, 60W Power adapter
