Wide temperature Industrial embedded application computer with Intel E3845 processor

Din Rail Industrial Computer With E3845 CPU

Industrial Application Computer

Wide Temperature Industrial Computer

Embedded Computer

Features

• Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
• One 204pin 1600MHz DDR3L RAM, max 8GB RAM
• Seven Gigabit Ethernet ports, support Two channels LAN BYPASS
• Two RS232 port(1 xRJ45 and 1x DB9)
• One RS485 COM isolated phoenix interface
• Optional a 4G model(external SIM slot)
• Two USB2.0, mSATA storage
• Two 9~36V DC inputs, with alarm for power failure
• Multi-function LED indicators , support  customize according to requirements
• Fanless thermally conductive aluminum extrusion to support wide temperature working
• Support DIN-RAIL rail type installation
• Widely used in  industrial-application environments

• CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
• BIOS SPI FLASH BIOS
• System memory Max 8GB RAM

• Interface One mSATA Interface
• SSD Industrial mSATA SSD
• CF slot None

• LAN Port Rj45 Seven 10/100/1000Mbps RJ45 network interfaces

• BYPASS Support Two channel LAN BYPASS

• Indicator With LAN link, active, speed LED, built-in BYPASS status LED

• USB Two USB2.0
• COM RS232 Two  RS232(1x DB9 and 1x Rj45)
• COM RS485 One RS485 COM Phoenix connector
• Indicator One Power LED, one HDD LED
• Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536
• USB Four USB2.0 Pin interface
• Reset One built-in reset button
• COM One RS232 Pin interface, optional external RS-485 interface with isolation
• DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
• Watchdog 1~255 seconds programmable software watchdog, support system reset
• 4G module One full Netcom 4G module, external SIM slot
•

• Power consumption 60W power adapter
• Power input Dual 9 ~ 36V wide range DC input

• Mounting Support DIN-RAIL rail type installation
• Operate Temperature -40°C ~ 70°C
• Storage Temperature -50°C ~ 85°C
• Operate Humidity 5% ~ 85% non-condensing @ 40°C
• Storage Humidity 5% ~ 95% non-condensing

• Chassis Color Silver
• Front panel Front panel silk-screen [Customized LOGO optional]
• Construction Aluminum extrusion chassis
• Dimensions (D x W x H) 122x122x60.8 mm
• Weight 3.2 kg

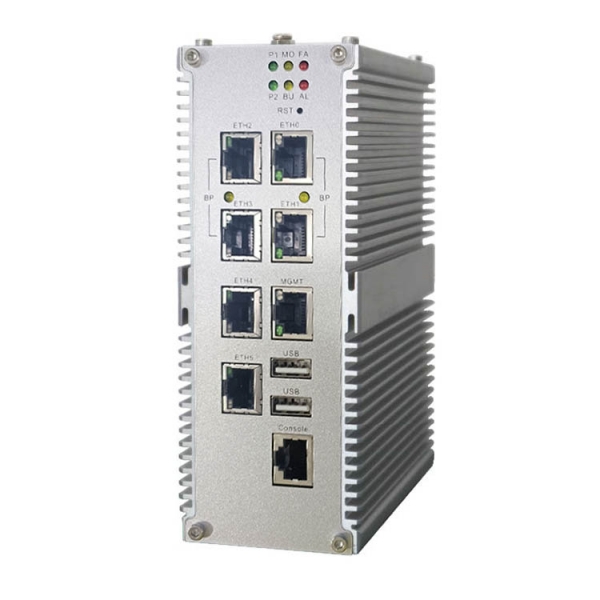

• F1930B Aluminum extrusion chassis, E3845 CPU, 7x GbE RJ45 with Two lan bypass, 2x Rs232 and 1x RS485 COM, 60W Power adapter
